Microchip Technology LM4040CYM3-2.5-TR
- Part No.:
- LM4040CYM3-2.5-TR
- Manufacturer:
- Microchip Technology
- Category:
- Voltage Reference
- Package:
- TO-236-3, SC-59, SOT-23-3
- Datasheet:
-
LM4040CYM3-2.5-TR.pdf
- Description:
- IC VREF SHUNT 0.5% SOT23-3
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
LM4040CYM3-2.5-TR Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Microchip Technology
- Package/Case:
- TO-236-3, SC-59, SOT-23-3
- Series:
- -
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Active
- Reference Type:
- Shunt
- Output Type:
- Fixed
- Voltage - Output (Min/Fixed):
- 2.5V
- Voltage - Output (Max):
- -
- Current - Output:
- 15 mA
- Tolerance:
- ±0.5%
- Temperature Coefficient:
- 100ppm/°C
- Noise - 0.1Hz to 10Hz:
- -
- Noise - 10Hz to 10kHz:
- 35µVrms
- Voltage - Input:
- -
- Current - Supply:
- -
- Current - Cathode:
- 65 µA
- Operating Temperature:
- -40°C ~ 85°C (TA)
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Surface Mount
- Supplier Device Package:
- SOT-23-3

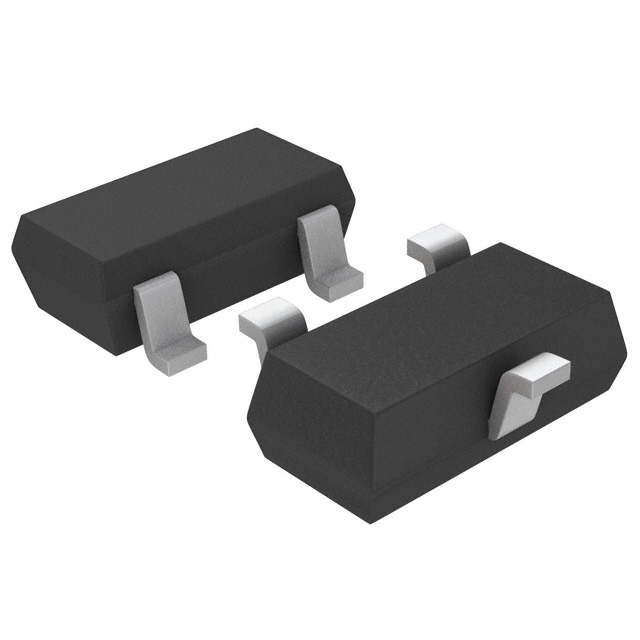

| Image |  |
 |
|
| Part Number | LM4040CYM3-2.5-TR | LM4040CYM3-4.1-TR | LM4040CYM3-5.0-TR |
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology |
| Package/Case | TO-236-3, SC-59, SOT-23-3 | TO-236-3, SC-59, SOT-23-3 | TO-236-3, SC-59, SOT-23-3 |
| Series | - | - | - |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
| Product Status | Active | Active | Active |
| Reference Type | Shunt | Shunt | Shunt |
| Output Type | Fixed | Fixed | Fixed |
| Voltage - Output (Min/Fixed) | 2.5V | 4.096V | 5V |
| Voltage - Output (Max) | - | - | - |
| Current - Output | 15 mA | 15 mA | 15 mA |
| Tolerance | ±0.5% | ±0.5% | ±0.5% |
| Temperature Coefficient | 100ppm/°C | 100ppm/°C | 100ppm/°C |
| Noise - 0.1Hz to 10Hz | - | - | - |
| Noise - 10Hz to 10kHz | 35µVrms | 80µVrms | 80µVrms |
| Voltage - Input | - | - | - |
| Current - Supply | - | - | - |
| Current - Cathode | 65 µA | 73 µA | 80 µA |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Grade | - | - | - |
| Qualification | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | SOT-23-3 | SOT-23-3 | SOT-23-3 |
- Include Parts
- Popular Search
The following parts include "LM4040CYM3-2.5-TR" in Silicon Labs LM4040CYM3-2.5-TR.
- Part Number
- Manufacturer
- Package
- Description
- TL431AIDBZR Texas Instruments TO-236-3, SC-59, SOT-23-3 IC VREF SHUNT ADJ 1% SOT23-3
- TL431BQDBZR Texas Instruments TO-236-3, SC-59, SOT-23-3 IC VREF SHUNT ADJ 0.5% SOT23-3
- AN431AN-ATRG1 Diodes Incorporated TO-236-3, SC-59, SOT-23-3 IC VREF SHUNT ADJ 0.5% SOT23-3
- LM4040CYM3-2.5-TR Microchip Technology TO-236-3, SC-59, SOT-23-3 IC VREF SHUNT 0.5% SOT23-3
- LM4040CYM3-4.1-TR Microchip Technology TO-236-3, SC-59, SOT-23-3 IC VREF SHUNT 0.5% SOT23-3
- LM4040EIM3-2.5/NOPB Texas Instruments TO-236-3, SC-59, SOT-23-3 IC VREF SHUNT 2% SOT23-3
- AZ431LBNTR-G1 Diodes Incorporated TO-236-3, SC-59, SOT-23-3 IC VREF SHUNT ADJ 1% SOT23-3
- LM4040D20IDBZR Texas Instruments TO-236-3, SC-59, SOT-23-3 IC VREF SHUNT 1% SOT23-3
- LM4041DIM3-ADJ/NOPB Texas Instruments TO-236-3, SC-59, SOT-23-3 IC VREF SHUNT ADJ 1% SOT23-3
- LM4040DIM3X-2.5/NOPB Texas Instruments TO-236-3, SC-59, SOT-23-3 IC VREF SHUNT 1% SOT23-3
