Matrix Orbital LK204-7T-1U-YG
- Part No.:
- LK204-7T-1U-YG
- Manufacturer:
- Matrix Orbital
- Category:
- LCD, OLED Character and Numeric
- Package:
- Description:
- LCD MOD 80DIG 20X4 TRANS YLW/GRN
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
LK204-7T-1U-YG Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Matrix Orbital
- Series:
- -
- Packaging:
- Box
- Product Status:
- Obsolete
- Number of Characters:
- 80.0
- Display Format:
- 20 x 4
- Character Format:
- 5 x 8 Dots
- Display Type:
- LCD - Color
- Display Mode:
- Transmissive
- Character Size:
- 5.15mm H x 3.20mm W
- Outline L x W x H:
- 144.00mm x 38.00mm x 34.30mm
- Viewing Area:
- 82.00mm L x 28.40mm W
- Backlight:
- LED - Yellow/Green
- Voltage - Supply:
- 4.75V ~ 5.25V
- Dot Size:
- 0.60mm W x 0.65mm H
- Interface:
- I2C, RS-232, TTL
- Controller Type:
- -
- Operating Temperature:
- 0°C ~ 50°C
- Text Color:
- Black
- Background Color:
- Yellow/Green
| Image |  |
 |
 |
 |
 |

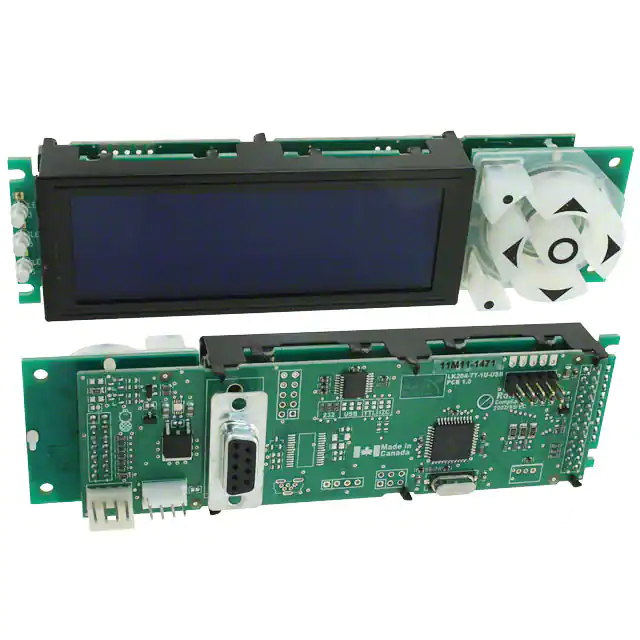

| Part Number | LK204-25 | LK204-25-WB | LK204-7T-1U-GW | LK204-25-GW | LK204-7T-1U-WB |
| Manufacturer | Matrix Orbital | Matrix Orbital | Matrix Orbital | Matrix Orbital | Matrix Orbital |
| Series | - | - | - | - | - |
| Packaging | Bulk | Bulk | Bulk | Bulk | Bulk |
| Product Status | Active | Active | Active | Active | Active |
| Number of Characters | 80.0 | 80.0 | 80.0 | 80.0 | 80.0 |
| Display Format | 20 x 4 | 20 x 4 | 20 x 4 | 20 x 4 | 20 x 4 |
| Character Format | 5 x 8 Dots | 5 x 8 Dots | 5 x 8 Dots | 5 x 8 Dots | 5 x 8 Dots |
| Display Type | TN - Twisted Nematic | TN - Twisted Nematic | LCD - Color | TN - Twisted Nematic | LCD - Color |
| Display Mode | Transmissive | Transmissive | Transmissive | Transmissive | Transmissive |
| Character Size | 4.75mm H x 2.95mm W | 4.75mm H x 2.95mm W | 5.15mm H x 3.20mm W | 4.75mm H x 2.95mm W | 5.15mm H x 3.20mm W |
| Outline L x W x H | 98.00mm x 60.00mm x 28.98mm | 98.00mm x 60.00mm x 28.98mm | 144.00mm x 38.00mm x 34.30mm | 98.00mm x 60.00mm x 28.98mm | 144.00mm x 38.00mm x 34.30mm |
| Viewing Area | 76.00mm L x 25.20mm W | 76.00mm L x 25.20mm W | 82.00mm L x 28.40mm W | 76.00mm L x 25.20mm W | 82.00mm L x 28.40mm W |
| Backlight | LED - Yellow/Green | LED - Blue | LED - White | LED - White | LED - Blue |
| Voltage - Supply | 4.75V ~ 5.25V | 4.75V ~ 5.25V | 4.75V ~ 5.25V | 4.75V ~ 5.25V | 4.75V ~ 5.25V |
| Dot Size | 0.55mm W x 0.55mm H | 0.55mm W x 0.55mm H | 0.60mm W x 0.65mm H | 0.55mm W x 0.55mm H | 0.60mm W x 0.65mm H |
| Interface | I2C, RS-232, TTL | I2C, RS-232, TTL | I2C, RS-232, TTL | I2C, RS-232, TTL | I2C, RS-232, TTL |
| Controller Type | - | - | - | - | - |
| Operating Temperature | 0°C ~ 50°C | 0°C ~ 50°C | 0°C ~ 50°C | 0°C ~ 50°C | 0°C ~ 50°C |
| Text Color | Black | White | Gray | Gray | White |
| Background Color | Green | Blue | White | White | Blue |
