Mornsun America, LLC LD03-16B09
- Part No.:
- LD03-16B09
- Manufacturer:
- Mornsun America, LLC
- Category:
- AC DC Converters
- Package:
- 4-DIP Module
- Description:
- AC/DC CONVERTER 9V 3W
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
LD03-16B09 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Mornsun America, LLC
- Series:
- LD03-16B0xx (3W)
- Package/Case:
- 4-DIP Module
- Packaging:
- Tray
- Product Status:
- Discontinued at Digi-Key
- Type:
- Enclosed
- Number of Outputs:
- 1
- Voltage - Input:
- 90 ~ 528 VAC, 100 ~ 745 VDC
- Voltage - Output 1:
- 9V
- Voltage - Output 2:
- -
- Voltage - Output 3:
- -
- Voltage - Output 4:
- -
- Current - Output (Max):
- 333mA
- Power (Watts):
- 3 W
- Applications:
- ITE (Commercial)
- Features:
- -
- Operating Temperature:
- -40°C ~ 70°C (With Derating)
- Efficiency:
- 73%
- Mounting Type:
- Through Hole
- Size / Dimension:
- 2.00" L x 1.00" W x 0.60" H (50.8mm x 25.4mm x 15.2mm)
- Approval Agency:
- CB, CE, cURus
- Standard Number:
- -
| Image |  |
|
|
|
 |

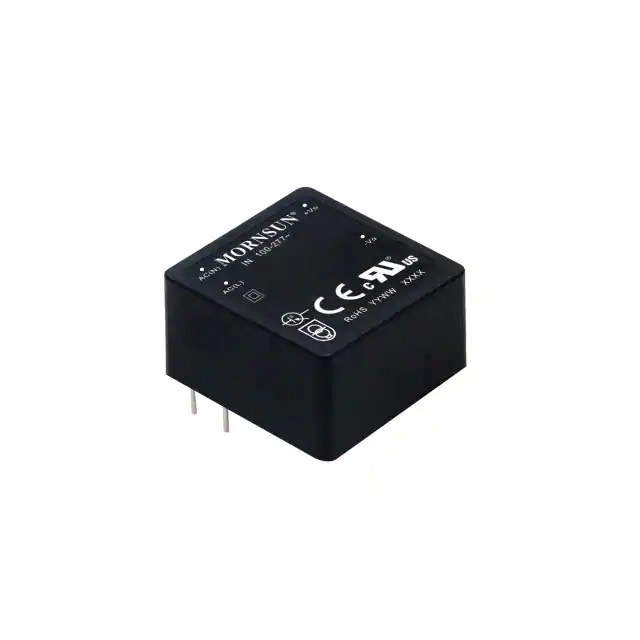

| Part Number | LD03-23B24R2 | LD03-23B12R2 | LD03-23B09R2 | LD03-23B15R2 | LD03-16B12 |
| Manufacturer | Mornsun America, LLC | Mornsun America, LLC | Mornsun America, LLC | Mornsun America, LLC | Mornsun America, LLC |
| Series | 305RAC / LD-R2 | 305RAC / LD-R2 | 305RAC / LD-R2 | 305RAC / LD-R2 | LD03-16B0xx (3W) |
| Package/Case | 5-DIP Module, 4 Leads | 5-DIP Module, 4 Leads | 5-DIP Module, 4 Leads | 5-DIP Module, 4 Leads | 4-DIP Module |
| Packaging | Tray | Tray | Tray | Tray | Tube |
| Product Status | Not For New Designs | Not For New Designs | Not For New Designs | Not For New Designs | Obsolete |
| Type | Enclosed | Enclosed | Enclosed | Enclosed | Enclosed |
| Number of Outputs | 1 | 1 | 1 | 1 | 1 |
| Voltage - Input | 85 ~ 305 VAC, 100 ~ 430 VDC | 85 ~ 305 VAC, 100 ~ 430 VDC | 85 ~ 305 VAC, 100 ~ 430 VDC | 85 ~ 305 VAC, 100 ~ 430 VDC | 90 ~ 528 VAC, 100 ~ 745 VDC |
| Voltage - Output 1 | 24V | 12V | 9V | 15V | 12V |
| Voltage - Output 2 | - | - | - | - | - |
| Voltage - Output 3 | - | - | - | - | - |
| Voltage - Output 4 | - | - | - | - | - |
| Current - Output (Max) | 125mA | 250mA | 333mA | 200mA | 250mA |
| Power (Watts) | 3 W | 3 W | 3 W | 3 W | 3 W |
| Applications | Household Appliances, ITE (Commercial) | Household Appliances, ITE (Commercial) | Household Appliances, ITE (Commercial) | Household Appliances, ITE (Commercial) | ITE (Commercial) |
| Features | - | - | - | - | - |
| Operating Temperature | -40°C ~ 85°C (With Derating) | -40°C ~ 85°C (With Derating) | -40°C ~ 85°C (With Derating) | -40°C ~ 85°C (With Derating) | -40°C ~ 70°C (With Derating) |
| Efficiency | 79% | 78% | 78% | 79% | 76% |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Size / Dimension | 1.00" L x 1.00" W x 0.69" H (25.4mm x 25.4mm x 17.6mm) | 1.00" L x 1.00" W x 0.69" H (25.4mm x 25.4mm x 17.6mm) | 1.00" L x 1.00" W x 0.69" H (25.4mm x 25.4mm x 17.6mm) | 1.00" L x 1.00" W x 0.69" H (25.4mm x 25.4mm x 17.6mm) | 2.00" L x 1.00" W x 0.60" H (50.8mm x 25.4mm x 15.2mm) |
| Approval Agency | CB, CE, cURus | CB, CE, cURus | CB, CE, cURus | CB, CE, cURus | CB, CE, cURus |
| Standard Number | - | - | - | - | - |
