LEM USA Inc. LA 55-TP/SP27
- Part No.:
- LA 55-TP/SP27
- Manufacturer:
- LEM USA Inc.
- Category:
- Current Sensors
- Package:
- Module
- Description:
- SENSOR CURRENT HALL 50A AC/DC
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
LA 55-TP/SP27 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- LEM USA Inc.
- Series:
- LA
- Package/Case:
- Module
- Packaging:
- Bulk
- Product Status:
- Active
- For Measuring:
- AC/DC
- Sensor Type:
- Hall Effect, Closed Loop
- Current - Sensing:
- 50A
- Number of Channels:
- 1
- Output:
- Ratiometric, Current
- Sensitivity:
- -
- Frequency:
- DC ~ 200kHz
- Linearity:
- ±0.15%
- Accuracy:
- ±0.65%
- Voltage - Supply:
- ±12V ~ 15V
- Response Time:
- 1µs
- Current - Supply (Max):
- 35mA
- Operating Temperature:
- -40°C ~ 85°C
- Grade:
- -
- Qualification:
- -
- Polarization:
- Bidirectional
- Mounting Type:
- Through Hole
- Supplier Device Package:
- -

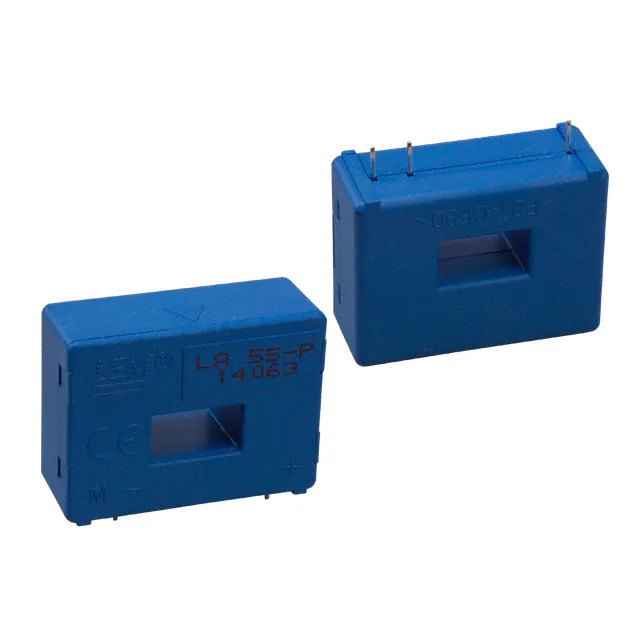

| Image |  |
 |
 |
|
|
| Part Number | LA 55-P | LA 55-TP/SP27 | LA 55-P/SP50 | LA 55-P/SP1 | LA 55-P/SP2 |
| Manufacturer | LEM USA Inc. | LEM USA Inc. | LEM USA Inc. | LEM USA Inc. | LEM USA Inc. |
| Series | LA | LA | LA | LA | LA |
| Package/Case | Module, Single Pass Through | Module | Module, Single Pass Through | Module, Single Pass Through | Module, Single Pass Through |
| Packaging | Bulk | Bulk | Bulk | Bulk | Bulk |
| Product Status | Active | Active | Active | Active | Active |
| For Measuring | AC/DC | AC/DC | AC/DC | AC/DC | AC/DC |
| Sensor Type | Hall Effect, Closed Loop | Hall Effect, Closed Loop | Hall Effect, Closed Loop | Hall Effect, Closed Loop | Hall Effect, Closed Loop |
| Current - Sensing | 50A | 50A | 50A | 50A | 50A |
| Number of Channels | 1 | 1 | 1 | 1 | 1 |
| Output | Ratiometric, Current | Ratiometric, Current | Current | - | Current |
| Sensitivity | - | - | - | - | - |
| Frequency | DC ~ 200kHz | DC ~ 200kHz | DC ~ 200kHz | DC ~ 200kHz | DC ~ 200kHz |
| Linearity | ±0.15% | ±0.15% | ±0.15% | ±0.15% | ±0.15% |
| Accuracy | ±0.65% | ±0.65% | ±0.9% | ±0.9% | ±0.9% |
| Voltage - Supply | ±12V ~ 15V | ±12V ~ 15V | ±12V ~ 15V | 12V ~ 15V | ±12V ~ 15V |
| Response Time | 1µs | 1µs | 1µs | 1µs | 1µs |
| Current - Supply (Max) | 60mA | 35mA | - | 10mA | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Grade | - | - | - | - | - |
| Qualification | - | - | - | - | - |
| Polarization | Bidirectional | Bidirectional | Bidirectional | Bidirectional | Bidirectional |
| Mounting Type | Through Hole | Through Hole | Chassis Mount | Chassis Mount | Chassis Mount |
| Supplier Device Package | - | - | - | - | - |
