STMicroelectronics L99LD21Q6
- Part No.:
- L99LD21Q6
- Manufacturer:
- STMicroelectronics
- Category:
- LED Drivers
- Package:
- 40-TFQFN Exposed Pad
- Datasheet:
-
L99LD21Q6.pdf
- Description:
- HIGH POWER LED DRIVER FOR AUTOMO
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
L99LD21Q6 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- STMicroelectronics
- Series:
- -
- Package/Case:
- 40-TFQFN Exposed Pad
- Packaging:
- Tray
- Product Status:
- Obsolete
- Type:
- DC DC Regulator
- Topology:
- Step-Down (Buck), Step-Up (Boost)
- Internal Switch(s):
- Yes
- Number of Outputs:
- 2
- Voltage - Supply (Min):
- 5.5V
- Voltage - Supply (Max):
- 60V
- Voltage - Output:
- 50V
- Current - Output / Channel:
- 1.5A
- Frequency:
- 100kHz ~ 450kHz
- Dimming:
- PWM, SPI
- Applications:
- Lighting
- Operating Temperature:
- -40°C ~ 150°C (TJ)
- Grade:
- Automotive
- Qualification:
- AEC-Q100
- Mounting Type:
- Surface Mount
- Supplier Device Package:
- 40-QFN (6x6)

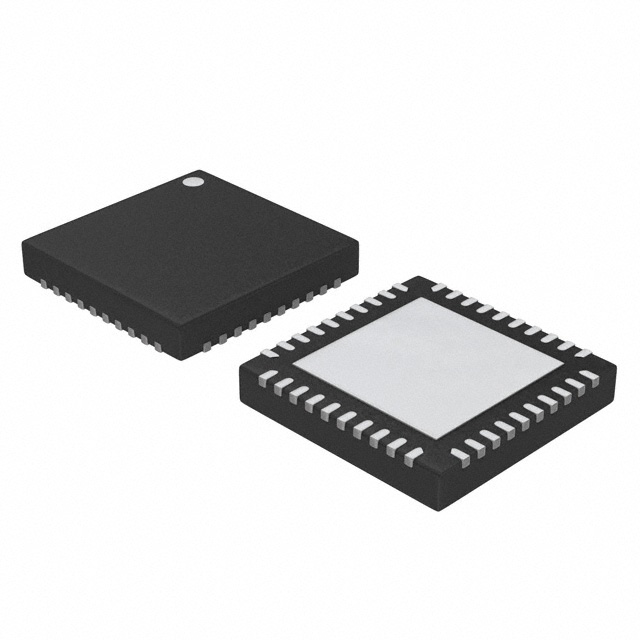

| Image |  |
 |
| Part Number | L99LD21Q6TR | L99LD21Q6 |
| Manufacturer | STMicroelectronics | STMicroelectronics |
| Series | - | - |
| Package/Case | 40-TFQFN Exposed Pad | 40-TFQFN Exposed Pad |
| Packaging | Tape & Reel (TR) | Tray |
| Product Status | Active | Obsolete |
| Type | DC DC Regulator | DC DC Regulator |
| Topology | Buck, Boost | Step-Down (Buck), Step-Up (Boost) |
| Internal Switch(s) | Yes | Yes |
| Number of Outputs | 2 | 2 |
| Voltage - Supply (Min) | 5.5V | 5.5V |
| Voltage - Supply (Max) | 24V | 60V |
| Voltage - Output | 50V | 50V |
| Current - Output / Channel | 1.5A | 1.5A |
| Frequency | 100kHz ~ 450kHz | 100kHz ~ 450kHz |
| Dimming | PWM | PWM, SPI |
| Applications | Lighting | Lighting |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) |
| Grade | Automotive | Automotive |
| Qualification | AEC-Q100 | AEC-Q100 |
| Mounting Type | Surface Mount | Surface Mount |
| Supplier Device Package | 40-QFN (6x6) | 40-QFN (6x6) |
