Quectel L76L-M33
- Part No.:
- L76L-M33
- Manufacturer:
- Quectel
- Category:
- RF Transceiver Modules and Modems
- Package:
- 18-SMD Module
- Description:
- RF TXRX MODULE NAVIGATION SMD
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
L76L-M33 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Quectel
- Series:
- -
- Package/Case:
- 18-SMD Module
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Not For New Designs
- Programmable:
- Not Verified
- RF Family/Standard:
- Navigation
- Protocol:
- BeiDou, Galileo, GLONASS, GPS, GNSS
- Modulation:
- -
- Frequency:
- 1.561GHz, 1.575GHz, 1.602GHz
- Data Rate:
- 921.6kbps
- Power - Output:
- -
- Sensitivity:
- -165dBm
- Serial Interfaces:
- I2C, UART
- Antenna Type:
- Antenna Not Included
- Utilized IC / Part:
- MT3333
- Memory Size:
- -
- Voltage - Supply:
- 2.8V ~ 4.3V
- Current - Receiving:
- -
- Current - Transmitting:
- -
- Mounting Type:
- Surface Mount
- Operating Temperature:
- -40°C ~ 85°C
| Image |  |
 |
 |
|

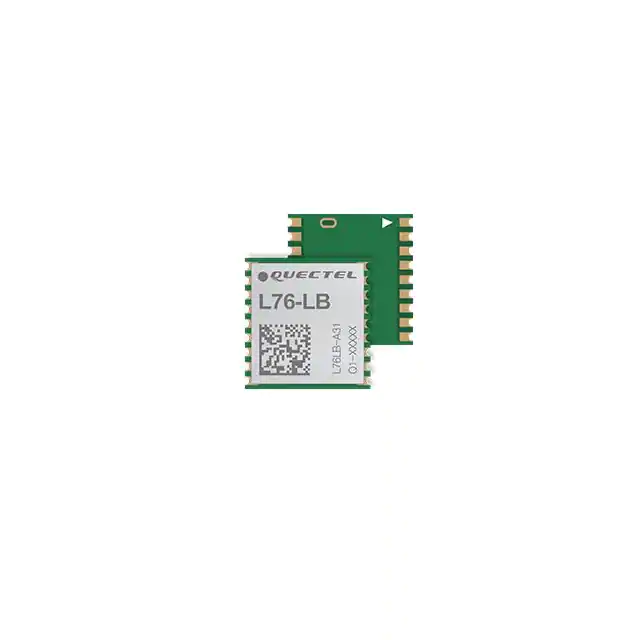

| Part Number | L76L-M33 | L76LL-M33 | L76LB-A31 | L76LBL-A31 |
| Manufacturer | Quectel | Quectel | Quectel | Quectel |
| Series | - | - | - | - |
| Package/Case | 18-SMD Module | 18-SMD Module | 18-SMD Module | 18-SMD Module |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
| Product Status | Not For New Designs | Not For New Designs | Obsolete | Obsolete |
| Programmable | Not Verified | - | Not Verified | Not Verified |
| RF Family/Standard | Navigation | Navigation | Navigation | Navigation |
| Protocol | BeiDou, Galileo, GLONASS, GPS, GNSS | BeiDou, Galileo, GLONASS, GPS, GNSS | BeiDou, Galileo, GLONASS, GPS, GNSS | BeiDou, Galileo, GLONASS, GPS, GNSS |
| Modulation | - | - | - | - |
| Frequency | 1.561GHz, 1.575GHz, 1.602GHz | - | 1.561GHz, 1.575GHz, 1.602GHz | 1.561GHz, 1.575GHz, 1.602GHz |
| Data Rate | 921.6kbps | 9.6kbps | 921.6kbps | - |
| Power - Output | - | - | - | - |
| Sensitivity | -165dBm | -167dBm | -165dBm | -165dBm |
| Serial Interfaces | I2C, UART | I2C, UART | I2C, UART | I2C, UART |
| Antenna Type | Antenna Not Included | Antenna Not Included | Antenna Not Included | Antenna Not Included |
| Utilized IC / Part | MT3333 | MT3333 | AG3331 | AG3331 |
| Memory Size | - | - | - | - |
| Voltage - Supply | 2.8V ~ 4.3V | 2.8V ~ 4.3V | 2.8V ~ 4.3V | 2.8V ~ 4.3V |
| Current - Receiving | - | - | - | - |
| Current - Transmitting | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
