ams-OSRAM USA INC. KW CSLPM2.PC-5N6N-4H8I-0-700-S-XX

Name: KW CSLPM2.PC-5N6N-4H8I-0-700-S-XX
Brand: ams-OSRAM USA INC.
SKU: KW CSLPM2.PC-5N6N-4H8I-0-700-S-XX
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Compare

Part No.:: KW CSLPM2.PC-5N6N-4H8I-0-700-S-XX

Manufacturer:: ams-OSRAM USA INC.

Category:: LED White Lighting

Package:: 1212 (3030 Metric)

Datasheet:: KW CSLPM2.PC-5N6N-4H8I-0-700-S-XX.pdf

Description:: LED OSLON COOL WHITE 5000K 1212

Quantity:: Add To Cart Add To RFQ list

Unit Price:$0

Ext Price:$0

Payment:

Shipping:

KW CSLPM2.PC-5N6N-4H8I-0-700-S-XX Information

Specifications
Comparison
Tags

Product attributes: Attribute value

Manufacturer:: ams-OSRAM USA INC.

Series:: OSLON Square Flat

Package/Case:: 1212 (3030 Metric)

Packaging:: Bulk

Product Status:: Obsolete

Color:: White, Cool

CCT (K):: 5000K

Flux @ 85°C, Current - Test:: -

Flux @ 25°C, Current - Test:: 318lm (280lm ~ 355lm)

Current - Test:: 700mA

Voltage - Forward (Vf) (Typ):: 2.85V

Lumens/Watt @ Current - Test:: 159 lm/W

CRI (Color Rendering Index):: 70 (Typ)

Current - Max:: 1.8A

Viewing Angle:: 120°

Grade:: -

Qualification:: -

Mounting Type:: Surface Mount

Supplier Device Package:: 1212

Size / Dimension:: 0.118" L x 0.118" W (3.00mm x 3.00mm)

Height - Seated (Max):: 0.035" (0.88mm)

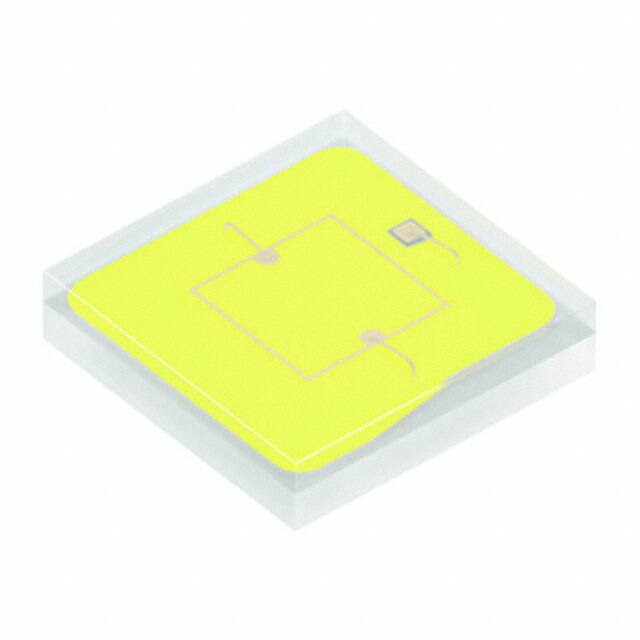

Part Number	KW CSLPM2.CC-8L8M-4R9T-0-700-S	KW CSLPM2.PC-7M7N-4C8E-0-700-S	KW CSLPM2.PC-7M7N-4F8G-0-700-S	KW CSLPM2.PC-7M7N-4H8I-0-700-S	KW CSLPM2.PC-5N7N-4F8G-0-700-S
Manufacturer	ams-OSRAM USA INC.	ams-OSRAM USA INC.	ams-OSRAM USA INC.	ams-OSRAM USA INC.	ams-OSRAM USA INC.
Series	OSLON® Square Flat	OSLON® Square Flat	OSLON® Square Flat	OSLON Square Flat	OSLON® Square Flat
Package/Case	1212 (3030 Metric)	1212 (3030 Metric)	1212 (3030 Metric)	1212 (3030 Metric)	1212 (3030 Metric)
Packaging	Tape & Reel (TR)	Tape & Reel (TR)	Tape & Reel (TR)	Tape & Reel (TR)	Tape & Reel (TR)
Product Status	Obsolete	Active	Active	Active	Active
Color	White, Warm	White, Cool	White, Cool	White, Cool	White, Cool
CCT (K)	3000K	6500K	5700K	5000K	5700K
Flux @ 85°C, Current - Test	-	-	-	-	-
Flux @ 25°C, Current - Test	220lm (159lm ~ 280lm)	312lm (224lm ~ 400lm)	312lm (224lm ~ 400lm)	312lm (224lm ~ 400lm)	340lm (280lm ~ 400lm)
Current - Test	700mA	700mA	700mA	700mA	700mA
Voltage - Forward (Vf) (Typ)	2.85V	2.85V	2.85V	2.85V	2.85V
Lumens/Watt @ Current - Test	110 lm/W	156 lm/W	156 lm/W	156 lm/W	170 lm/W
CRI (Color Rendering Index)	90	70	70	70 (Typ)	70 (Typ)
Current - Max	1.8A	1.8A	1.8A	1.8A	1.8A
Viewing Angle	120°	120°	120°	120°	-
Grade	-	-	-	-	-
Qualification	-	-	-	-	-
Mounting Type	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount
Supplier Device Package	CSMD	CSMD	CSMD	1212	CSMD
Size / Dimension	0.118" L x 0.118" W (3.00mm x 3.00mm)	0.118" L x 0.118" W (3.00mm x 3.00mm)	0.118" L x 0.118" W (3.00mm x 3.00mm)	0.118" L x 0.118" W (3.00mm x 3.00mm)	0.118" L x 0.118" W (3.00mm x 3.00mm)
Height - Seated (Max)	0.035" (0.90mm)	0.035" (0.88mm)	0.035" (0.88mm)	0.035" (0.88mm)	0.035" (0.88mm)
