Cree LED JR5050AWT-P-H30EB0000-N0000001

Name: JR5050AWT-P-H30EB0000-N0000001
Brand: Cree LED
SKU: JR5050AWT-P-H30EB0000-N0000001
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Compare

Part No.:: JR5050AWT-P-H30EB0000-N0000001

Manufacturer:: Cree LED

Category:: LED White Lighting

Package:: 2020 (5050 Metric)

Datasheet:: JR5050AWT-P-H30EB0000-N0000001.pdf

Description:: LED J WARM WHT 3000K SMD

Quantity:: Add To Cart Add To RFQ list

Unit Price:$0

Ext Price:$0

Payment:

Shipping:

JR5050AWT-P-H30EB0000-N0000001 Information

Specifications
Comparison
Tags

Product attributes: Attribute value

Manufacturer:: Cree LED

Series:: J

Package/Case:: 2020 (5050 Metric)

Packaging:: Tape & Reel (TR)

Product Status:: Active

Color:: White, Warm

CCT (K):: 3000K 3-Step MacAdam Ellipse

Flux @ 85°C, Current - Test:: 361lm (Typ)

Flux @ 25°C, Current - Test:: 394lm (Typ)

Current - Test:: 400mA

Voltage - Forward (Vf) (Typ):: 5.77V

Lumens/Watt @ Current - Test:: 171 lm/W

CRI (Color Rendering Index):: 80

Current - Max:: 1A

Viewing Angle:: 120°

Grade:: -

Qualification:: -

Mounting Type:: Surface Mount

Supplier Device Package:: SMD

Size / Dimension:: 0.197" L x 0.197" W (5.00mm x 5.00mm)

Height - Seated (Max):: 0.035" (0.90mm)

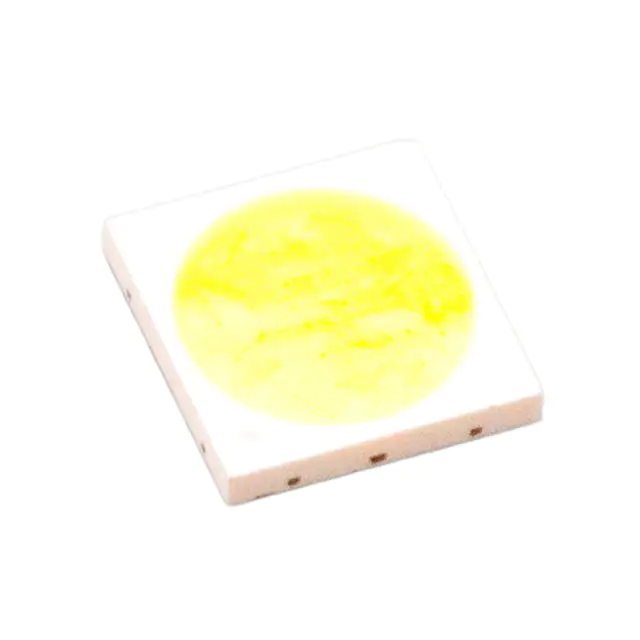

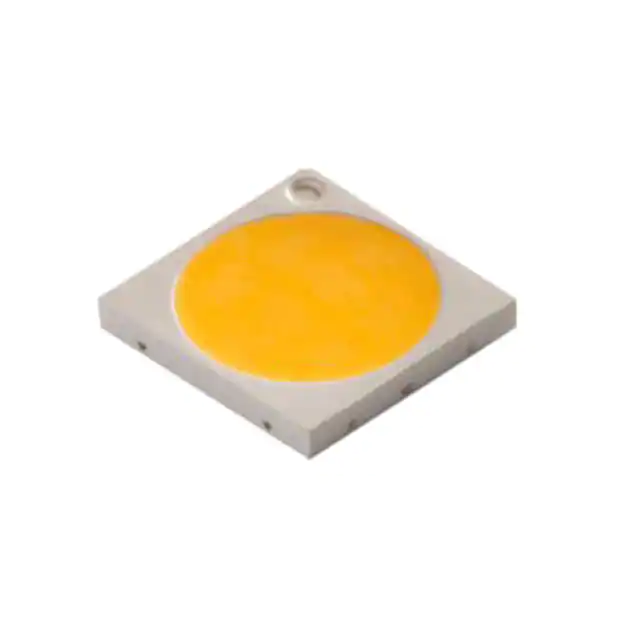

Part Number	JR5050AWT-P-H30EB0000-N0000001	JR5050AWT-Q-B50EB0000-N0000001	JR5050AWT-Q-U30EB0000-N0000001	JR5050AWT-P-B40EB0000-N0000001	JR5050AWT-Q-B40EB0000-N0000001
Manufacturer	Cree LED	Cree LED	Cree LED	Cree LED	Cree LED
Series	J	J	J	J	J
Package/Case	2020 (5050 Metric)	2020 (5050 Metric)	2020 (5050 Metric)	2020 (5050 Metric)	2020 (5050 Metric)
Packaging	Tape & Reel (TR)	Tape & Reel (TR)	Tape & Reel (TR)	Tape & Reel (TR)	Tape & Reel (TR)
Product Status	Active	Active	Active	Active	Active
Color	White, Warm	White, Cool	White, Warm	White, Neutral	White, Neutral
CCT (K)	3000K 3-Step MacAdam Ellipse	5000K	3000K	4000K 3-Step MacAdam Ellipse	4000K
Flux @ 85°C, Current - Test	361lm (Typ)	-	-	405lm (Typ)	-
Flux @ 25°C, Current - Test	394lm (Typ)	420lm (Typ)	320lm (Typ)	442lm (Typ)	420lm (Typ)
Current - Test	400mA	400mA	400mA	400mA	400mA
Voltage - Forward (Vf) (Typ)	5.77V	5.8V	5.8V	5.77V	5.8V
Lumens/Watt @ Current - Test	171 lm/W	181 lm/W	138 lm/W	192 lm/W	181 lm/W
CRI (Color Rendering Index)	80	70	90	70	70
Current - Max	1A	1A	1A	1A	1A
Viewing Angle	120°	120°	120°	120°	120°
Grade	-	-	-	-	-
Qualification	-	-	-	-	-
Mounting Type	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount
Supplier Device Package	SMD	SMD	SMD	SMD	SMD
Size / Dimension	0.197" L x 0.197" W (5.00mm x 5.00mm)	0.197" L x 0.197" W (5.00mm x 5.00mm)	0.197" L x 0.197" W (5.00mm x 5.00mm)	0.197" L x 0.197" W (5.00mm x 5.00mm)	0.197" L x 0.197" W (5.00mm x 5.00mm)
Height - Seated (Max)	0.035" (0.90mm)	0.035" (0.90mm)	0.035" (0.90mm)	0.035" (0.90mm)	0.035" (0.90mm)
