Orient Display JAZZ-AC-W (POS FSTN)
- Part No.:
- JAZZ-AC-W (POS FSTN)
- Manufacturer:
- Orient Display
- Category:
- LCD, OLED, Graphic
- Package:
- Datasheet:
-
JAZZ-AC-W (POS FSTN).pdf
- Description:
- GRAPHIC DISPLAY FSTN BLACK 2.7"
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
JAZZ-AC-W (POS FSTN) Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Orient Display
- Series:
- JAZZ
- Packaging:
- Box
- Product Status:
- Active
- Display Type:
- FSTN - Film Super-Twisted Nematic
- Display Mode:
- Transflective
- Touchscreen:
- -
- Diagonal Screen Size:
- 2.7" (68.58mm)
- Viewing Area:
- 65.50mm W x 37.20mm H
- Backlight:
- Without Backlight
- Dot Pixels:
- 128 x 64
- Interface:
- Parallel
- Controller Type:
- ST7567
- Graphics Color:
- Black
- Background Color:
- Gray
| Image |  |
.jpg) |
 |
.jpg) |
 |

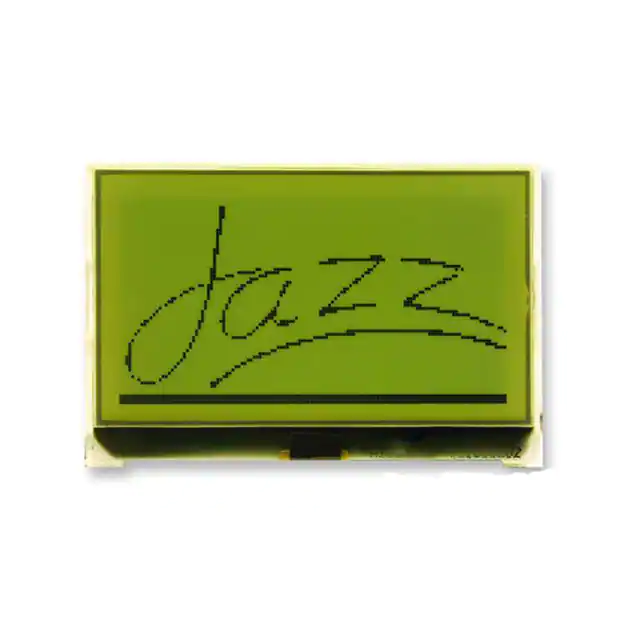

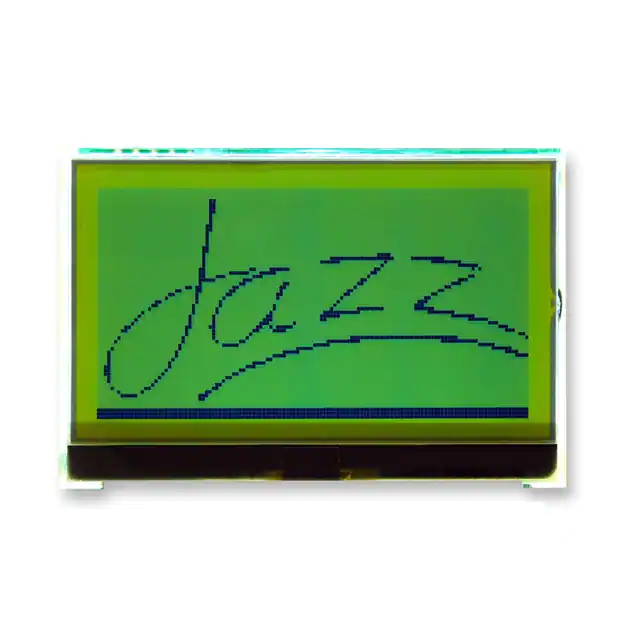

| Part Number | JAZZ-BC-W | JAZZ-AC-W (POS FSTN) | JAZZ-AC-T | JAZZ-AC-Y (POS STN Y/G) | JAZZ-A-Y6WFDW |
| Manufacturer | Orient Display | Orient Display | Orient Display | Orient Display | Orient Display |
| Series | JAZZ | JAZZ | JAZZ | JAZZ | JAZZ |
| Packaging | Box | Box | Box | Box | Box |
| Product Status | Active | Active | Active | Active | Active |
| Display Type | FSTN - Film Super-Twisted Nematic | FSTN - Film Super-Twisted Nematic | FSTN - Film Super-Twisted Nematic | STN - Super-Twisted Nematic | STN - Super-Twisted Nematic |
| Display Mode | Transflective | Transflective | Transmissive | Transflective | Transflective |
| Touchscreen | - | - | - | - | - |
| Diagonal Screen Size | 1" (25.40mm) | 2.7" (68.58mm) | 2.7" (68.58mm) | 2.7" (68.58mm) | 2.7" (68.58mm) |
| Viewing Area | 26.50mm W x 14.00mm H | 65.50mm W x 37.20mm H | 65.50mm W x 37.20mm H | 65.50mm W x 37.20mm H | 65.50mm W x 37.20mm H |
| Backlight | Without Backlight | Without Backlight | - | Without Backlight | LED - White |
| Dot Pixels | 128 x 64 | 128 x 64 | 128 x 64 | 128 x 64 | 128 x 64 |
| Interface | Parallel | Parallel | SPI, Parallel | Parallel | Parallel |
| Controller Type | ST7565R | ST7567 | ST7567 | ST7567 | ST7567 |
| Graphics Color | Black | Black | Blue | Dark Blue | Dark Blue |
| Background Color | Gray | Gray | Black | Yellow/Green | Yellow/Green |
