Renesas Electronics Corporation ISL76120ARTZ-TR5303
- Part No.:
- ISL76120ARTZ-TR5303
- Manufacturer:
- Renesas Electronics Corporation
- Category:
- Analog Switches - Special Purpose
- Package:
- 10-VFDFN Exposed Pad
- Description:
- IC MULTIPLEXER USB2.0
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
ISL76120ARTZ-TR5303 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Renesas Electronics Corporation
- Series:
- -
- Package/Case:
- 10-VFDFN Exposed Pad
- Packaging:
- Bulk
- Product Status:
- Obsolete
- Applications:
- USB
- Multiplexer/Demultiplexer Circuit:
- 2:1
- Switch Circuit:
- SPDT
- Number of Channels:
- 2
- On-State Resistance (Max):
- 30Ohm
- Voltage - Supply, Single (V+):
- 2.7V ~ 5.5V
- Voltage - Supply, Dual (V±):
- -
- -3db Bandwidth:
- 880MHz
- Features:
- Break-Before-Make, USB 2.0
- Operating Temperature:
- -40°C ~ 105°C
- Grade:
- Automotive
- Qualification:
- AEC-Q100
- Mounting Type:
- Surface Mount
- Supplier Device Package:
- 10-TDFN (3x3)

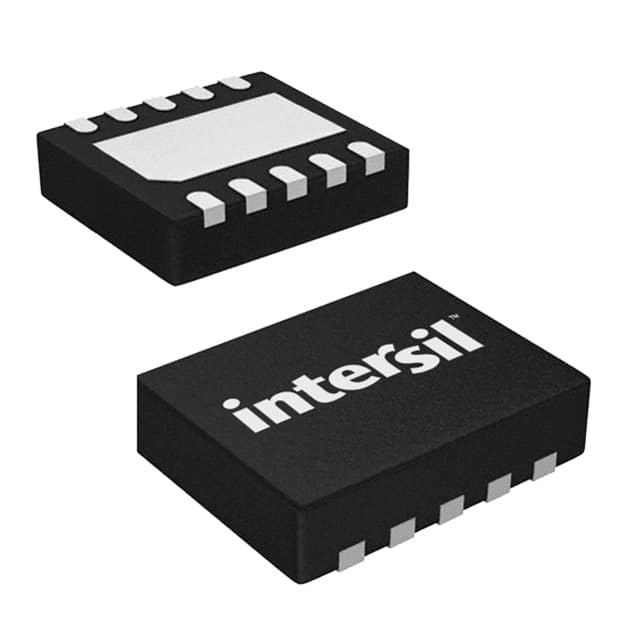

| Image |  |
|
|
 |
| Part Number | ISL76120ARTZ-T7A | ISL76120ARTZ | ISL76120ARTZ-T | ISL76120ARTZ-TR5303 |
| Manufacturer | Renesas Electronics Corporation | Renesas Electronics Corporation | Renesas Electronics Corporation | Renesas Electronics Corporation |
| Series | - | - | - | - |
| Package/Case | 10-VFDFN Exposed Pad | 10-VFDFN Exposed Pad | 10-VFDFN Exposed Pad | 10-VFDFN Exposed Pad |
| Packaging | Tape & Reel (TR) | Tube | Tape & Reel (TR) | Bulk |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Applications | USB | USB | USB | USB |
| Multiplexer/Demultiplexer Circuit | 2:1 | 2:1 | 2:1 | 2:1 |
| Switch Circuit | SPDT | SPDT | SPDT | SPDT |
| Number of Channels | 2 | 2 | 2 | 2 |
| On-State Resistance (Max) | 30Ohm | 30Ohm | 30Ohm | 30Ohm |
| Voltage - Supply, Single (V+) | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V |
| Voltage - Supply, Dual (V±) | - | - | - | - |
| -3db Bandwidth | 880MHz | 880MHz | 880MHz | 880MHz |
| Features | Break-Before-Make, USB 2.0 | Break-Before-Make, USB 2.0 | Break-Before-Make, USB 2.0 | Break-Before-Make, USB 2.0 |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) | -40°C ~ 105°C |
| Grade | Automotive | Automotive | Automotive | Automotive |
| Qualification | AEC-Q100 | AEC-Q100 | AEC-Q100 | AEC-Q100 |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 10-TDFN (3x3) | 10-TDFN (3x3) | 10-TDFN (3x3) | 10-TDFN (3x3) |
