Abracon LLC HWZT-10.00MD
- Part No.:
- HWZT-10.00MD
- Manufacturer:
- Abracon LLC
- Category:
- Resonators
- Package:
- Radial - 2 Lead, 5.00mm Pitch
- Datasheet:
-
HWZT-10.00MD.pdf
- Description:
- CERAMIC RES 10.0000MHZ T/H
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
HWZT-10.00MD Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Abracon LLC
- Series:
- HWZT
- Package/Case:
- Radial - 2 Lead, 5.00mm Pitch
- Packaging:
- Bulk
- Product Status:
- Active
- Type:
- Ceramic
- Frequency:
- 10 MHz
- Frequency Stability:
- ±0.3%
- Frequency Tolerance:
- ±0.5%
- Features:
- -
- Capacitance:
- -
- Impedance:
- 30 Ohms
- Operating Temperature:
- -40°C ~ 85°C
- Mounting Type:
- Through Hole
- Size / Dimension:
- 0.394" L x 0.197" W (10.00mm x 5.00mm)
- Height:
- 0.394" (10.00mm)

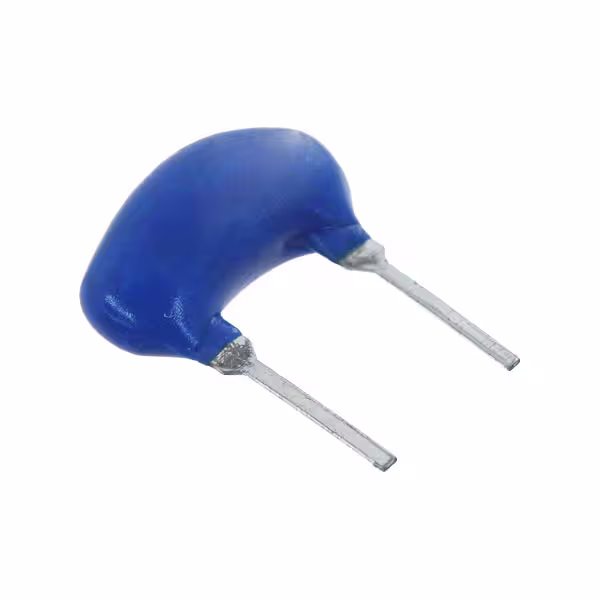

| Image |  |
|
 |
 |
|
| Part Number | HWZT-12.00MD | HWZT-16.00MD | HWZT-2.00MD | HWZT-3.58MD | HWZT-6.00MD |
| Manufacturer | Abracon LLC | Abracon LLC | Abracon LLC | Abracon LLC | Abracon LLC |
| Series | HWZT | HWZT | HWZT | HWZT | HWZT |
| Package/Case | Radial - 2 Lead, 5.00mm Pitch | Radial - 2 Lead, 5.00mm Pitch | Radial - 2 Lead, 5.00mm Pitch | Radial - 2 Lead, 5.00mm Pitch | Radial - 2 Lead, 5.00mm Pitch |
| Packaging | Bulk | Bulk | Bulk | Bulk | Bulk |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Type | Ceramic | Ceramic | Ceramic | Ceramic | Ceramic |
| Frequency | 12 MHz | 16 MHz | 2 MHz | 3.58 MHz | 6 MHz |
| Frequency Stability | ±0.3% | ±0.3% | ±0.3% | ±0.3% | ±0.3% |
| Frequency Tolerance | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
| Features | - | - | - | - | - |
| Capacitance | - | - | - | - | - |
| Impedance | 30 Ohms | 40 Ohms | 100 Ohms | 30 Ohms | 30 Ohms |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Size / Dimension | 0.394" L x 0.197" W (10.00mm x 5.00mm) | 0.394" L x 0.197" W (10.00mm x 5.00mm) | 0.394" L x 0.197" W (10.00mm x 5.00mm) | 0.394" L x 0.197" W (10.00mm x 5.00mm) | 0.394" L x 0.197" W (10.00mm x 5.00mm) |
| Height | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.217" (5.50mm) | 0.217" (5.50mm) | 0.217" (5.50mm) |
