Lite-On Inc. HSDL-5400#1L1
- Part No.:
- HSDL-5400#1L1
- Manufacturer:
- Lite-On Inc.
- Category:
- Photodiodes
- Package:
- 2-DIP (0.100", 2.54mm)
- Datasheet:
-
HSDL-5400#1L1.pdf
- Description:
- SENSOR PHOTODIODE 875NM 2DIP
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
HSDL-5400#1L1 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Lite-On Inc.
- Series:
- HSDL-5400
- Package/Case:
- 2-DIP (0.100", 2.54mm)
- Packaging:
- Bulk
- Product Status:
- Obsolete
- Wavelength:
- 875nm
- Color - Enhanced:
- -
- Spectral Range:
- 770nm ~ 1000nm
- Diode Type:
- PIN
- Responsivity @ nm:
- -
- Response Time:
- -
- Voltage - DC Reverse (Vr) (Max):
- 40 V
- Current - Dark (Typ):
- 1nA
- Active Area:
- 0.15mm²
- Viewing Angle:
- 110°
- Operating Temperature:
- -40°C ~ 85°C
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Through Hole
| Image |  |
 |
 |
 |
 |

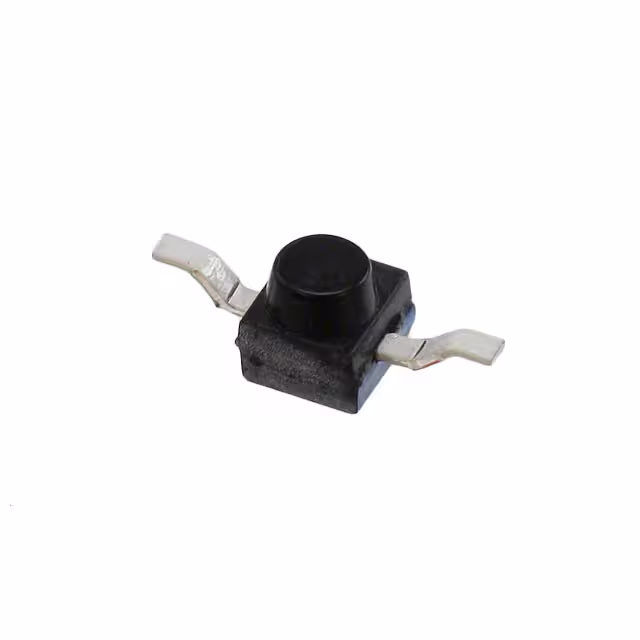

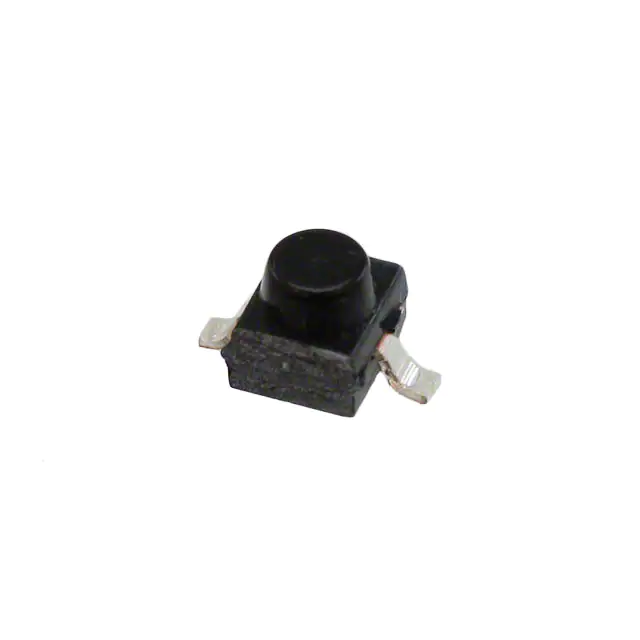

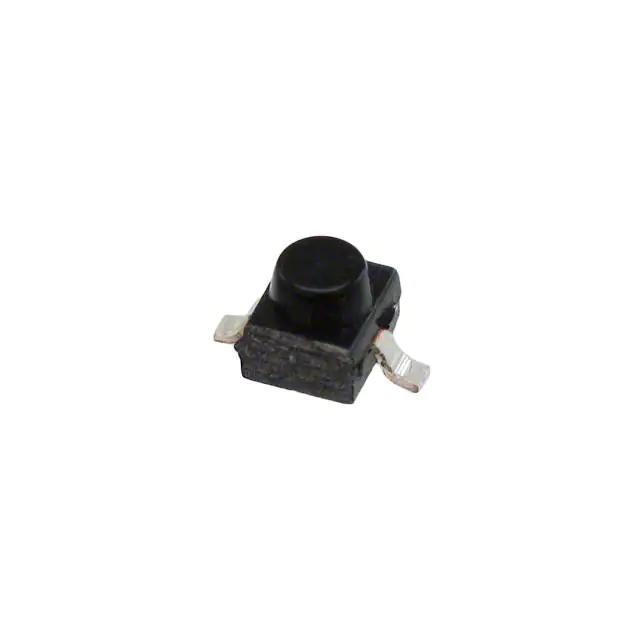

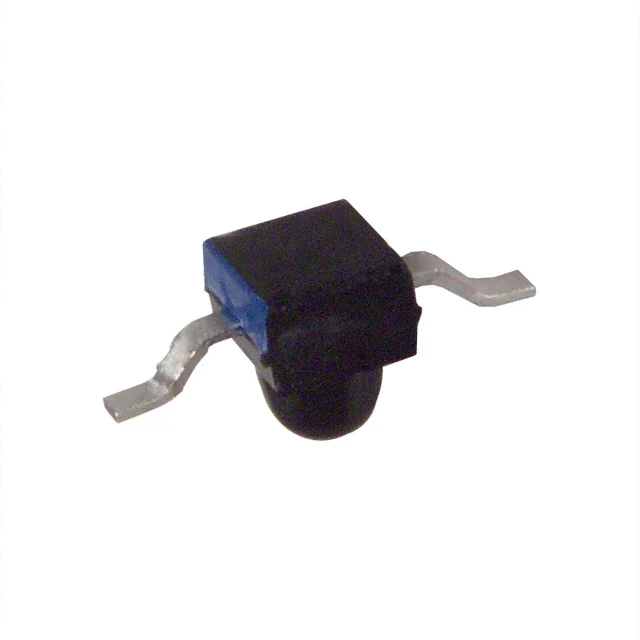

| Part Number | HSDL-5420#031 | HSDL-5400#011 | HSDL-5420#011 | HSDL-5400#031 | HSDL-5400#1L1 |
| Manufacturer | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. |
| Series | HSDL-5400 | HSDL-5400 | HSDL-5400 | HSDL-5400 | HSDL-5400 |
| Package/Case | 2-SMD, Z-Bend | 2-SMD, Gull Wing | 2-SMD, Gull Wing | 2-SMD, Z-Bend | 2-DIP (0.100", 2.54mm) |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Cut Tape (CT) | Bulk |
| Product Status | Active | Active | Active | Active | Obsolete |
| Wavelength | 875nm | 875nm | 875nm | 875nm | 875nm |
| Color - Enhanced | - | - | - | - | - |
| Spectral Range | 770nm ~ 1000nm | 770nm ~ 1000nm | 770nm ~ 1000nm | 770nm ~ 1000nm | 770nm ~ 1000nm |
| Diode Type | PIN | PIN | PIN | PIN | PIN |
| Responsivity @ nm | - | - | - | - | - |
| Response Time | 7.5ns | - | 7.5ns | - | - |
| Voltage - DC Reverse (Vr) (Max) | 40 V | 40 V | 40 V | 40 V | 40 V |
| Current - Dark (Typ) | 1nA | 1nA | 1nA | 1nA | 1nA |
| Active Area | 0.15mm² | 0.15mm² | 0.15mm² | 0.15mm² | 0.15mm² |
| Viewing Angle | 56° | 110° | 56° | 110° | 110° |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Grade | - | - | - | - | - |
| Qualification | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Through Hole |
