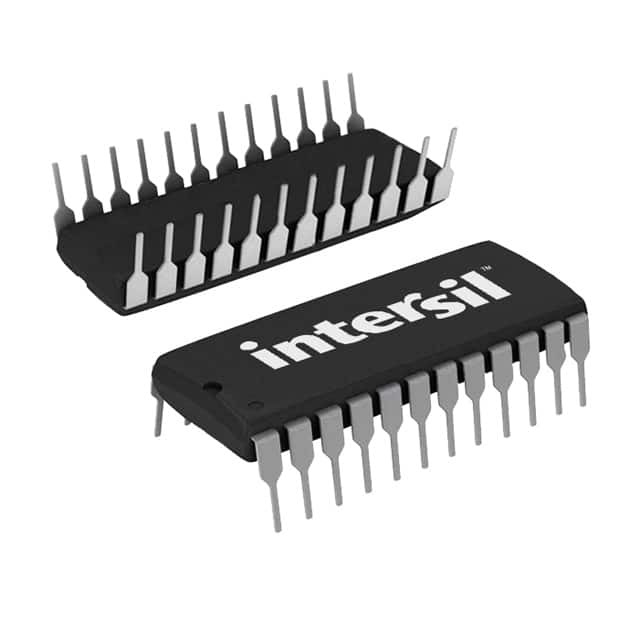

Renesas Electronics Corporation HIP4086AP
- Part No.:
- HIP4086AP
- Manufacturer:
- Renesas Electronics Corporation
- Category:
- Full Half-Bridge (H Bridge) Drivers
- Package:
- 24-DIP (0.300", 7.62mm)
- Description:
- IC HALF BRIDGE DRIVER 24DIP
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
HIP4086AP Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Renesas Electronics Corporation
- Series:
- -
- Package/Case:
- 24-DIP (0.300", 7.62mm)
- Packaging:
- Tube
- Product Status:
- Obsolete
- Output Configuration:
- Half Bridge
- Applications:
- DC Motors, General Purpose
- Interface:
- Logic, PWM
- Load Type:
- Capacitive and Resistive
- Technology:
- N-Channel MOSFET
- Rds On (Typ):
- -
- Current - Output / Channel:
- -
- Current - Peak Output:
- 500mA
- Voltage - Supply:
- 7V ~ 15V
- Voltage - Load:
- 7V ~ 15V
- Operating Temperature:
- -40°C ~ 150°C (TJ)
- Grade:
- -
- Qualification:
- -
- Features:
- Bootstrap Circuit
- Fault Protection:
- -
- Mounting Type:
- Through Hole
- Supplier Device Package:
- 24-PDIP
| Image |  |
 |
| Part Number | HIP4086APZ | HIP4086AP |
| Manufacturer | Renesas Electronics Corporation | Renesas Electronics Corporation |
| Series | - | - |
| Package/Case | 24-DIP (0.300", 7.62mm) | 24-DIP (0.300", 7.62mm) |
| Packaging | Tube | Tube |
| Product Status | Discontinued at Digi-Key | Obsolete |
| Output Configuration | Half Bridge | Half Bridge |
| Applications | DC Motors, General Purpose | DC Motors, General Purpose |
| Interface | Logic, PWM | Logic, PWM |
| Load Type | Capacitive and Resistive | Capacitive and Resistive |
| Technology | N-Channel MOSFET | N-Channel MOSFET |
| Rds On (Typ) | - | - |
| Current - Output / Channel | - | - |
| Current - Peak Output | 500mA | 500mA |
| Voltage - Supply | 7V ~ 15V | 7V ~ 15V |
| Voltage - Load | 7V ~ 15V | 7V ~ 15V |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) |
| Grade | - | - |
| Qualification | - | - |
| Features | Bootstrap Circuit | Bootstrap Circuit |
| Fault Protection | - | - |
| Mounting Type | Through Hole | Through Hole |
| Supplier Device Package | 24-PDIP | 24-PDIP |
