Broadcom Limited HEDR-55L2-BY09
- Part No.:
- HEDR-55L2-BY09
- Manufacturer:
- Broadcom Limited
- Category:
- Encoders
- Package:
- Description:
- ROTARY ENCODER OPTICAL 3600PPR
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
HEDR-55L2-BY09 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Broadcom Limited
- Series:
- HEDR
- Packaging:
- Bulk
- Product Status:
- Obsolete
- Programmable:
- Not Verified
- Encoder Type:
- Optical
- Output Type:
- Quadrature with Index (Incremental)
- Pulses per Revolution:
- 3600
- Voltage - Supply:
- 5V
- Actuator Type:
- 8mm Open Center
- Detent:
- No
- Built in Switch:
- No
- Mounting Type:
- Chassis Mount, Motors
- Orientation:
- -
- Termination Style:
- Terminal Pins
- Rotational Life (Cycles Min):
- -
- Grade:
- -
- Qualification:
- -
| Image |  |
 |
 |
|
|

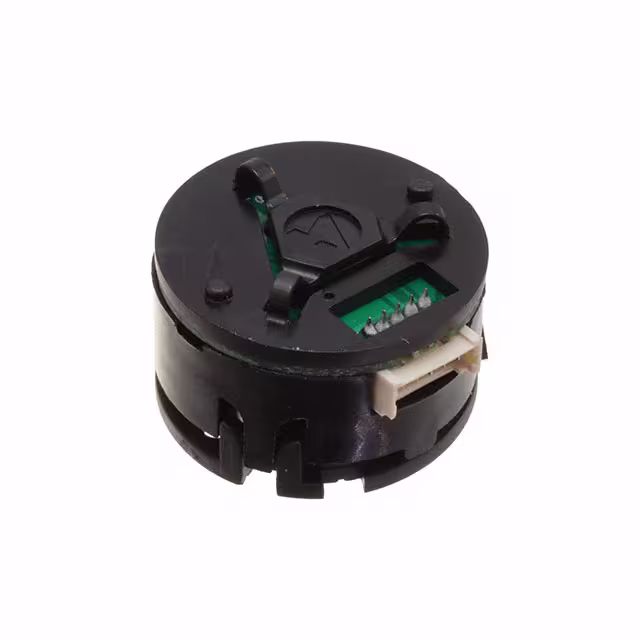

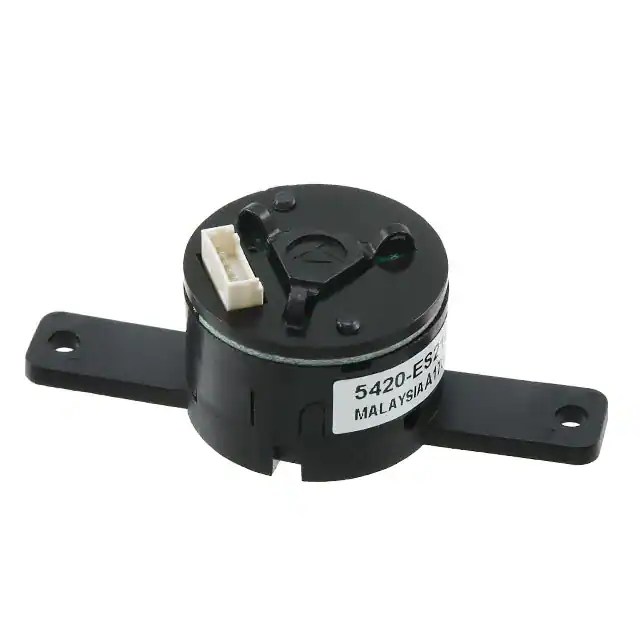

| Part Number | HEDR-5420-ES214 | HEDR-5421-EP111 | HEDR-5420-ES211 | HEDR-55L1-BY07 | HEDR-55L2-BY07 |
| Manufacturer | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited |
| Series | HEDR | HEDR | HEDR | HEDR | HEDR |
| Packaging | Bulk | Bulk | Bulk | Bulk | Bulk |
| Product Status | Active | Active | Obsolete | Obsolete | Obsolete |
| Programmable | Not Verified | Not Verified | Not Verified | Not Verified | Not Verified |
| Encoder Type | Optical | Optical | Optical | Optical | Optical |
| Output Type | Quadrature (Incremental) | Quadrature (Incremental) | Quadrature (Incremental) | Quadrature with Index (Incremental) | Quadrature with Index (Incremental) |
| Pulses per Revolution | 200 | 200 | 200 | 3600 | 3600 |
| Voltage - Supply | 5V | 5V | 5V | 5V | 5V |
| Actuator Type | 5mm Open Center | 4mm Open Center | 4mm Open Center | 5mm Open Center | 5mm Open Center |
| Detent | No | No | No | No | No |
| Built in Switch | No | No | No | No | No |
| Mounting Type | Chassis Mount, Motors | Chassis Mount, Motors | Chassis Mount, Motors | Chassis Mount, Motors | Chassis Mount, Motors |
| Orientation | Vertical | Right Angle | Vertical | - | - |
| Termination Style | Terminal Pins | Terminal Pins | Terminal Pins | Terminal Pins | Terminal Pins |
| Rotational Life (Cycles Min) | - | - | - | - | - |
| Grade | - | - | - | - | - |
| Qualification | - | - | - | - | - |
