Broadcom Limited HEDM-5605#B06
- Part No.:
- HEDM-5605#B06
- Manufacturer:
- Broadcom Limited
- Category:
- Encoders
- Package:
- Description:
- ROTARY ENCODER OPTICAL 1000PPR
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
HEDM-5605#B06 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Broadcom Limited
- Series:
- HEDM
- Packaging:
- Bulk
- Product Status:
- Active
- Programmable:
- Not Verified
- Encoder Type:
- Optical
- Output Type:
- Quadrature (Incremental)
- Pulses per Revolution:
- 1000
- Voltage - Supply:
- 5V
- Actuator Type:
- 1/4" Open Center
- Detent:
- No
- Built in Switch:
- No
- Mounting Type:
- Chassis Mount, Motors
- Orientation:
- Vertical
- Termination Style:
- Terminal Pins
- Rotational Life (Cycles Min):
- -
- Grade:
- -
- Qualification:
- -
| Image |  |
 |
 |
 |
|

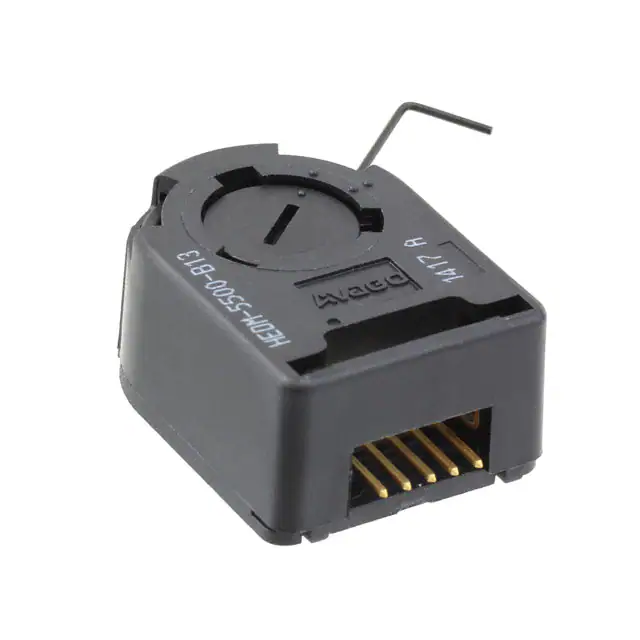

| Part Number | HEDM-5500#B06 | HEDM-5500#B12 | HEDM-5600#J06 | HEDM-5500#B13 | HEDM-5600#B13 |
| Manufacturer | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited |
| Series | HEDM | HEDM | HEDM | HEDM | HEDM |
| Packaging | Bulk | Bulk | Bulk | Bulk | Bulk |
| Product Status | Active | Active | Active | Active | Active |
| Programmable | Not Verified | Not Verified | Not Verified | Not Verified | Not Verified |
| Encoder Type | Optical | Optical | Optical | Optical | Optical |
| Output Type | Quadrature (Incremental) | Quadrature (Incremental) | Quadrature (Incremental) | Quadrature (Incremental) | Quadrature (Incremental) |
| Pulses per Revolution | 1000 | 1000 | 1024 | 1000 | 1000 |
| Voltage - Supply | 5V | 5V | 5V | 5V | 5V |
| Actuator Type | 1/4" Open Center | 6mm Open Center | 1/4" Open Center | 8mm Open Center | 8mm Open Center |
| Detent | No | No | No | No | No |
| Built in Switch | No | No | No | No | No |
| Mounting Type | Chassis Mount, Motors | Chassis Mount, Motors | Chassis Mount, Motors | Chassis Mount, Motors | Chassis Mount, Motors |
| Orientation | Vertical | Vertical | Vertical | Vertical | Vertical |
| Termination Style | Terminal Pins | Terminal Pins | Terminal Pins | Terminal Pins | Terminal Pins |
| Rotational Life (Cycles Min) | - | - | - | - | - |
| Grade | - | - | - | - | - |
| Qualification | - | - | - | - | - |
