Broadcom Limited HDSP-4830
- Part No.:
- HDSP-4830
- Manufacturer:
- Broadcom Limited
- Package:
- Datasheet:
-
HDSP-4830.pdf
- Description:
- LED CBI 10-SEG RED THROUGH HOLE
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
HDSP-4830 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Broadcom Limited
- Series:
- HDSP-4830
- Packaging:
- Tube
- Product Status:
- Active
- Color:
- Red (x 10)
- Wavelength - Peak:
- 635nm
- Configuration:
- Bar - 10 Wide, DIP
- Current:
- 30mA
- Millicandela Rating:
- 3.5mcd
- Viewing Angle:
- -
- Lens Type:
- -
- Lens Style:
- -
- Lens Size:
- -
- Voltage Rating:
- 2.1V
- Mounting Type:
- Through Hole
| Image |  |
|
|
 |
|

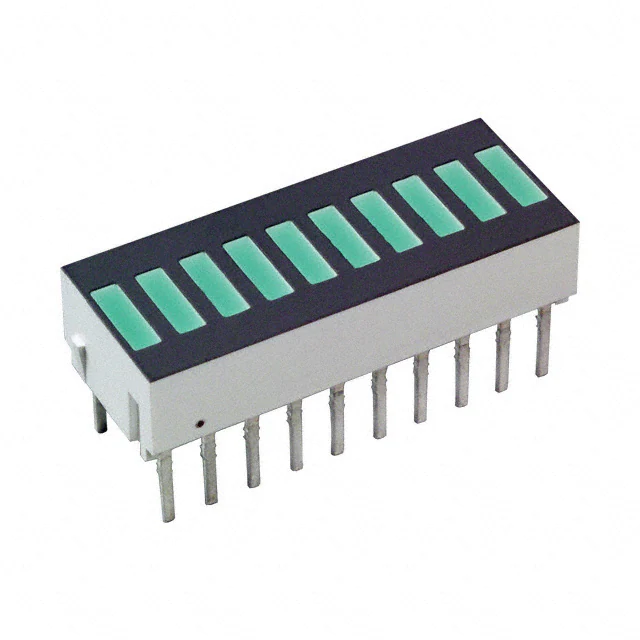

| Part Number | HDSP-4830 | HDSP-4832 | HDSP-4840 | HDSP-4850 | HDSP-4836 |
| Manufacturer | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited |
| Series | HDSP-4830 | HDSP-4832 | HDSP-4840 | HDSP-4850 | HDSP-4836 |
| Packaging | Tube | Tube | Tube | Tube | Tube |
| Product Status | Active | Active | Active | Active | Active |
| Color | Red (x 10) | Green (x 3), Red (x 3), Yellow (x 4) | Yellow (x 10) | Green (x 10) | Green (x 2), Red (x 4), Yellow (x 4) |
| Wavelength - Peak | 635nm | 566nm, 635nm, 583nm | 583nm | 566nm | 566nm, 635nm, 583nm |
| Configuration | Bar - 10 Wide, DIP | Bar - 10 Wide, DIP | Bar - 10 Wide, DIP | Bar - 10 Wide, DIP | Bar - 10 Wide, DIP |
| Current | 30mA | 30mA Green, 30mA Red, 20mA Yellow | 20mA | 30mA | 30mA Green, 30mA Red, 20mA Yellow |
| Millicandela Rating | 3.5mcd | 1.9mcd Green, 3.5mcd Red, 1.9mcd Yellow | 1.9mcd | 1.9mcd | 1.9mcd Green, 3.5mcd Red, 1.9mcd Yellow |
| Viewing Angle | - | - | - | - | - |
| Lens Type | - | - | - | - | - |
| Lens Style | - | Rectangle with Flat Top | Rectangle with Flat Top | - | Rectangle with Flat Top |
| Lens Size | - | 5.08mm x 1.52mm | 5.08mm x 1.52mm | - | 5.08mm x 1.52mm |
| Voltage Rating | 2.1V | 2.1V Green, 2.1V Red, 2.2V Yellow | 2.2V | 2.1V | 2.1V Green, 2.1V Red, 2.2V Yellow |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
