Pulse Electronics H1270FNL
- Part No.:
- H1270FNL
- Manufacturer:
- Pulse Electronics
- Category:
- Pulse Transformers
- Package:
- Description:
- PULSE XFMR 1CT:1CT TX 1CT:1CT RX
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
H1270FNL Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Pulse Electronics
- Series:
- -
- Packaging:
- Tube
- Product Status:
- Active
- Transformer Type:
- LAN 10G Base-T
- Inductance:
- 350µH
- ET (Volt-Time):
- -
- Turns Ratio - Primary:Secondary:
- 1CT:1CT Transmitter, 1CT:1CT Receiver
- Mounting Type:
- Surface Mount
- Size / Dimension:
- 0.515" L x 0.574" W (13.08mm x 14.58mm)
- Height - Seated (Max):
- 0.145" (3.68mm)
- Operating Temperature:
- 0°C ~ 70°C
- Grade:
- -
- Qualification:
- -

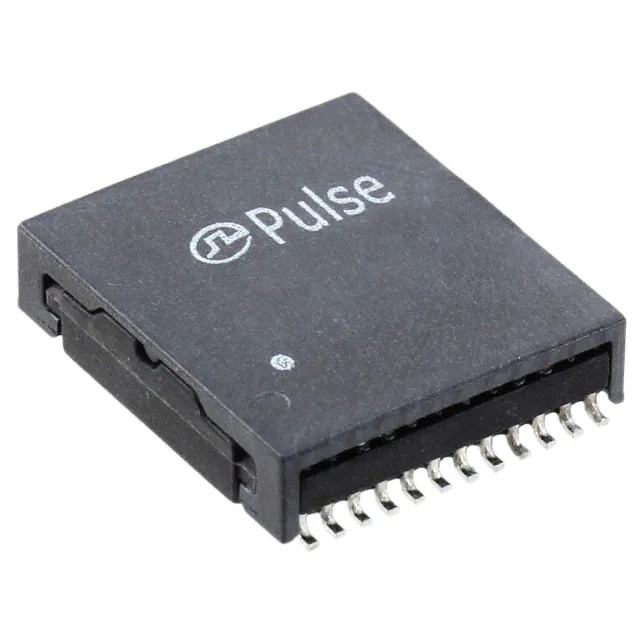

| Image |  |
 |
| Part Number | H1270FNL | H1270FNLT |
| Manufacturer | Pulse Electronics | Pulse Electronics |
| Series | - | - |
| Packaging | Tube | Tape & Reel (TR) |
| Product Status | Active | Active |
| Transformer Type | LAN 10G Base-T | LAN 10G Base-T |
| Inductance | 350µH | 350µH |
| ET (Volt-Time) | - | - |
| Turns Ratio - Primary:Secondary | 1CT:1CT Transmitter, 1CT:1CT Receiver | 1CT:1CT Transmitter, 1CT:1CT Receiver |
| Mounting Type | Surface Mount | Surface Mount |
| Size / Dimension | 0.515" L x 0.574" W (13.08mm x 14.58mm) | 0.515" L x 0.574" W (13.08mm x 14.58mm) |
| Height - Seated (Max) | 0.145" (3.68mm) | 0.145" (3.68mm) |
| Operating Temperature | 0°C ~ 70°C | 0°C ~ 70°C |
| Grade | - | - |
| Qualification | - | - |
