Pulse Electronics H1086
- Part No.:
- H1086
- Manufacturer:
- Pulse Electronics
- Category:
- Pulse Transformers
- Package:
- Description:
- MODULE TRANSFORMER
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
H1086 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Pulse Electronics
- Series:
- -
- Packaging:
- Tube
- Product Status:
- Obsolete
- Transformer Type:
- LAN 10/100 Base-T
- Inductance:
- -
- ET (Volt-Time):
- -
- Turns Ratio - Primary:Secondary:
- 1:1
- Mounting Type:
- Surface Mount
- Size / Dimension:
- 1.000" L x 0.390" W (25.40mm x 9.91mm)
- Height - Seated (Max):
- 0.245" (6.22mm)
- Operating Temperature:
- -
- Grade:
- -
- Qualification:
- -

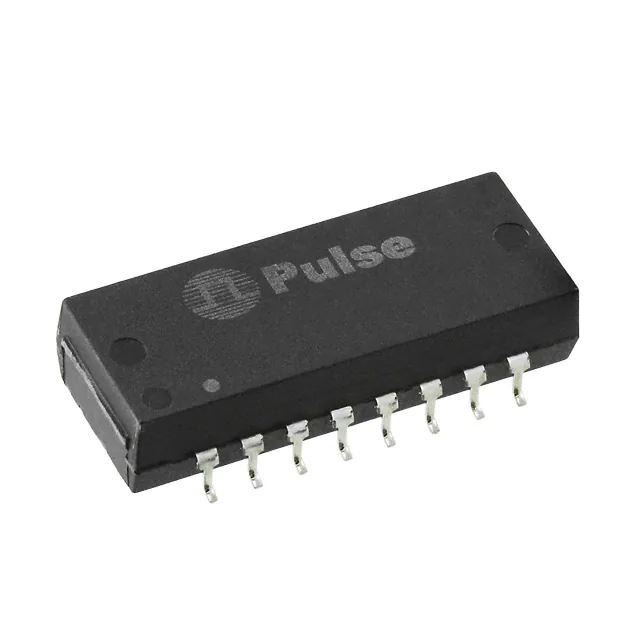

| Image |  |
|
 |
|
| Part Number | H1086NLT | H1086NL | H1086 | H1086T |
| Manufacturer | Pulse Electronics | Pulse Electronics | Pulse Electronics | Pulse Electronics |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR) | Tube | Tube | Tape & Reel (TR) |
| Product Status | Active | Active | Obsolete | Obsolete |
| Transformer Type | Isolation and Data Interface (Encapsulated) | Isolation and Data Interface (Encapsulated) | LAN 10/100 Base-T | LAN 10/100 Base-T |
| Inductance | - | - | - | - |
| ET (Volt-Time) | - | - | - | - |
| Turns Ratio - Primary:Secondary | 1:1 | 1:1 | 1:1 | 1:1 |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Size / Dimension | 1.000" L x 0.390" W (25.40mm x 9.91mm) | 1.000" L x 0.390" W (25.40mm x 9.91mm) | 1.000" L x 0.390" W (25.40mm x 9.91mm) | 1.000" L x 0.390" W (25.40mm x 9.91mm) |
| Height - Seated (Max) | 0.245" (6.22mm) | 0.245" (6.22mm) | 0.245" (6.22mm) | 0.245" (6.22mm) |
| Operating Temperature | 0°C ~ 70°C | 0°C ~ 70°C | - | - |
| Grade | - | - | - | - |
| Qualification | - | - | - | - |
