Noritake U.S.A., Inc. GU112X16G-7000
- Part No.:
- GU112X16G-7000
- Manufacturer:
- Noritake U.S.A., Inc.
- Category:
- Vacuum Fluorescent (VFD)
- Package:
- Datasheet:
-
GU112X16G-7000.pdf
- Description:
- MODULE VF GRAPHIC DISPLAY 112X16
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
GU112X16G-7000 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Noritake U.S.A., Inc.
- Series:
- 7000
- Packaging:
- Tray
- Product Status:
- Active
- Outline L x W x H:
- 80.00mm x 36.00mm x 8.80mm
- Viewing Area:
- 52.50mm L x 11.50mm W
- Display Format:
- 16 x 2
- Display Type:
- Graphic
- Format:
- 5 x 7 Dots
- Voltage - Supply:
- 5V
- Character Size:
- -
- Number of Dots:
- 112 x 16
- Interface:
- Parallel
- Controller Type:
- -
- Operating Temperature:
- -40°C ~ 85°C

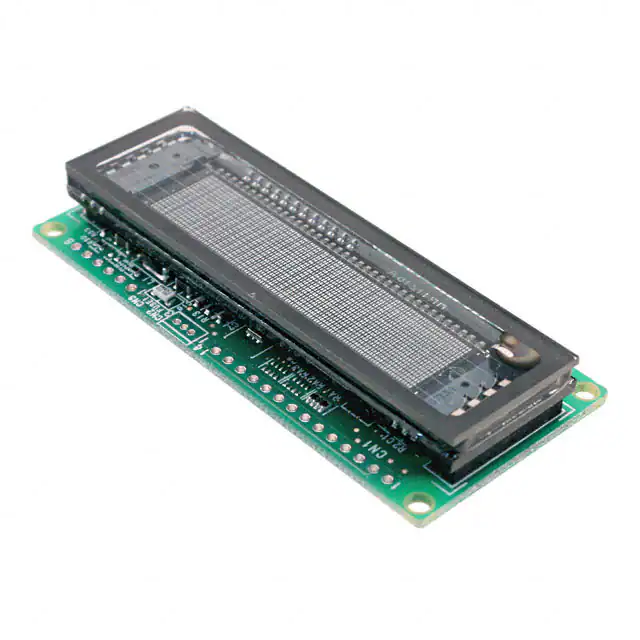

| Image |  |
 |
|
 |
|
| Part Number | GU112X16G-7000 | GU112X16G-7003D | GU112X16G-7000D | GU112X16G-7003 | GU112X16G-7002 |
| Manufacturer | Noritake U.S.A., Inc. | Noritake U.S.A., Inc. | Noritake U.S.A., Inc. | Noritake U.S.A., Inc. | Noritake U.S.A., Inc. |
| Series | 7000 | GU-7000 | GU-7000 | 7000 | 7000 |
| Packaging | Tray | Tray | Tray | Tray | - |
| Product Status | Active | Active | Active | Active | Obsolete |
| Outline L x W x H | 80.00mm x 36.00mm x 8.80mm | - | - | 80.00mm x 36.00mm x 8.80mm | 80.00mm x 36.00mm x 8.80mm |
| Viewing Area | 52.50mm L x 11.50mm W | 52.50mm L x 11.45mm W | 52.50mm L x 11.45mm W | 52.50mm L x 11.50mm W | 52.50mm L x 11.50mm W |
| Display Format | 16 x 2 | 16 x 2 | 16 x 2 | 16 x 2 | 16 x 2 |
| Display Type | Graphic | Character | Character | Graphic | Graphic |
| Format | 5 x 7 Dots | 5 x 7 Dots, 6 x 8 Dots, 7 x 8 Dots | 5 x 7 Dots, 6 x 8 Dots, 7 x 8 Dots | 5 x 7 Dots | 5 x 7 Dots |
| Voltage - Supply | 5V | 5V | 5V | 4.75V ~ 5.25V | 4.75V ~ 5.25V |
| Character Size | - | 2.68mm H x 5.65mm W | 2.68mm H x 5.84mm W | - | - |
| Number of Dots | 112 x 16 | 112 x 16 | 112 x 16 | 112 x 16 | 112 x 16 |
| Interface | Parallel | I2C, SPI | Parallel, 8-Bit | Serial | Parallel |
| Controller Type | - | - | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
