AUO G057QTN01.0
- Part No.:
- G057QTN01.0
- Manufacturer:
- AUO
- Category:
- TFT-LCD Panel
- Package:
- Description:
- AUO 5.7" TN LCM 320×240 500nits WLED TTL 33pins
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
Product Details
G057QTN01.0 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- AUO
- Panel Size:
- 5.7"
- TNVAIPS:
- TN
- Resolution:
- 320×240
- CR:
- 1900/1/29 4:01:00
- Viewing Angle:
- 80/80/70/70
- Colors:
- 262K
- Outline Size:
- 144(W)×104.6(H)×12.8(D)
- Treatment:
- Antiglare, Hard coating (3H)
- Brightness:
- 500 (Typ.)(cd/m²)
- Contrast Ratio:
- 700 : 1 (Typ.) (TM)
- View Direction:
- Viewing Angle:
- 80/80/70/70 (Typ.)(CR≥10)
- Response Time:
- 15/10 (Typ.)(Tr/Td) ms
- Best View on:
- -
- Work Mode:
- TN, Normally White, Transmissive
- Glass Thickness:
- Transmissivity:
- Color Depth:
- 262K 50% NTSC
- Mass:
- 150/165g (Typ./Max.)
- Used for:
- Touch Screen:
- Without
- Refresh Rate:
- 60Hz
| Image |  |
 |
 |
 |

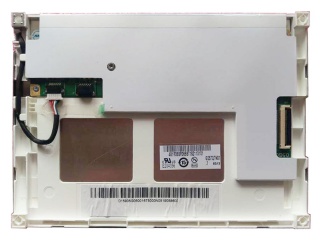

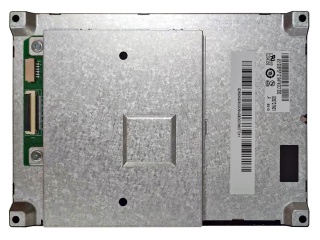

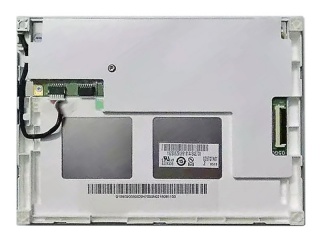

| Part Number | G057QTN01.0 | G057QTN01.4 | G057QTN01.1 | G057QTN01.2 |
| Manufacturer | AUO | AUO | AUO | AUO |
| Panel Size | 5.7" | 5.7" | 5.7" | 5.7" |
| TNVAIPS | TN | TN | TN | TN |
| Resolution | 320×240 | 320×240 | 320×240 | 320×240 |
| CR | 1900/1/29 4:01:00 | 1900/1/29 4:01:00 | 1900/1/29 4:01:00 | 1900/1/29 4:01:00 |
| Viewing Angle | 80/80/70/70 | 80/80/70/70 | 80/80/70/70 | 80/80/70/70 |
| Colors | 262K | 262K | 262K | 262K |
| Outline Size | 144(W)×104.6(H)×12.8(D) | 144(W)×104.6(H)×9.8(D) | ||
| Treatment | Antiglare, Hard coating (3H) | Antiglare, Hard coating (3H) | ||
| Brightness | 500 (Typ.)(cd/m²) | 500 (Typ.)(cd/m²) | - | - |
| Contrast Ratio | 700 : 1 (Typ.) (TM) | 700 : 1 (Typ.) (TM) | 700:1 (Typ.) (TM) | 700:1 (Typ.) (TM) |
| View Direction | 12 o'clock | |||
| Viewing Angle | 80/80/70/70 (Typ.)(CR≥10) | 80/80/70/70 (Typ.)(CR≥10) | 80/80/70/70 (Typ.)(CR≥10) (Left / Right / Up / Down) | 80/80/70/70 (Typ.)(CR≥10) (Left / Right / Up / Down) |
| Response Time | 15/10 (Typ.)(Tr/Td) ms | 15/10 (Typ.)(Tr/Td) ms | 15/10 (Typ.)(Tr/Td) | 15/10 (Typ.)(Tr/Td) |
| Best View on | - | - | 12 o'clock | |
| Work Mode | TN, Normally White, Transmissive | TN, Normally White, Transmissive | TN, Normally White, Transmissive | TN, Normally White, Transmissive |
| Glass Thickness | ||||
| Transmissivity | ||||
| Color Depth | 262K 50% NTSC | 262K 50% NTSC | 262K 50% NTSC | 262K 50% NTSC |
| Mass | 150/165g (Typ./Max.) | 150/165g (Typ./Max.) | - | - |
| Used for | Industrial | Industrial | ||
| Touch Screen | Without | Without | Without | Without |
| Refresh Rate | 60Hz | 60Hz | 60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit) | 60Hz |
