onsemi FOD4216S
- Part No.:
- FOD4216S
- Manufacturer:
- onsemi
- Category:
- Triac, SCR Output Optoisolators
- Package:
- 6-SMD, Gull Wing
- Datasheet:
-
FOD4216S.pdf
- Description:
- OPTOISOLATOR 5KV TRIAC 6SMD
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
FOD4216S Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- onsemi
- Series:
- -
- Package/Case:
- 6-SMD, Gull Wing
- Packaging:
- Bulk
- Product Status:
- Active
- Output Type:
- Triac
- Zero Crossing Circuit:
- No
- Number of Channels:
- 1
- Voltage - Isolation:
- 5000Vrms
- Voltage - Off State:
- 600 V
- Static dV/dt (Min):
- 10kV/µs
- Current - LED Trigger (Ift) (Max):
- 1.3mA
- Current - On State (It (RMS)) (Max):
- -
- Current - Hold (Ih):
- 500µA
- Turn On Time:
- 60µs
- Voltage - Forward (Vf) (Typ):
- 1.28V
- Current - DC Forward (If) (Max):
- 30 mA
- Operating Temperature:
- -55°C ~ 100°C
- Mounting Type:
- Surface Mount
- Supplier Device Package:
- 6-SMD
- Approval Agency:
- cUL, FIMKO, UL

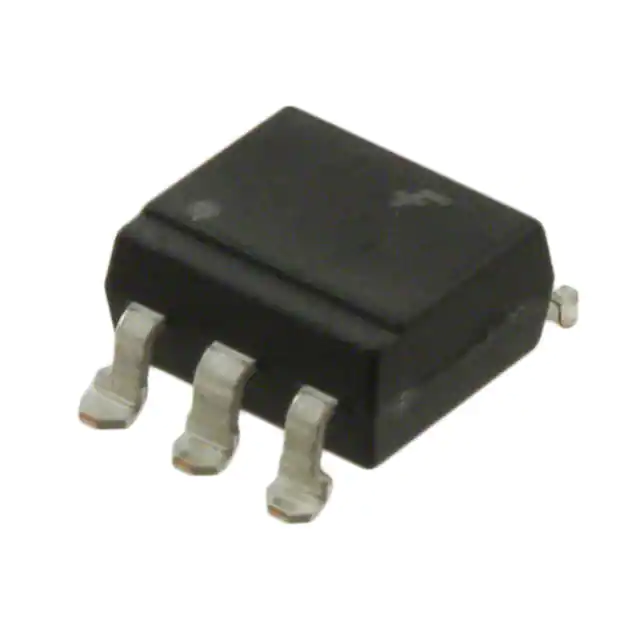

| Image |  |
 |
|
 |
| Part Number | FOD4216SD | FOD4216SV | FOD4216S | FOD4216SDV |
| Manufacturer | onsemi | onsemi | onsemi | onsemi |
| Series | - | - | - | - |
| Package/Case | 6-SMD, Gull Wing | 6-SMD, Gull Wing | 6-SMD, Gull Wing | 6-SMD, Gull Wing |
| Packaging | Tape & Reel (TR) | Tube | Bulk | Tape & Reel (TR) |
| Product Status | Active | Active | Active | Active |
| Output Type | Triac | Triac | Triac | Triac |
| Zero Crossing Circuit | No | No | No | No |
| Number of Channels | 1 | 1 | 1 | 1 |
| Voltage - Isolation | 5000Vrms | 5000Vrms | 5000Vrms | 5000Vrms |
| Voltage - Off State | 600 V | 600 V | 600 V | 600 V |
| Static dV/dt (Min) | 10kV/µs | 10kV/µs | 10kV/µs | 10kV/µs |
| Current - LED Trigger (Ift) (Max) | 1.3mA | 1.3mA | 1.3mA | 1.3mA |
| Current - On State (It (RMS)) (Max) | - | - | - | - |
| Current - Hold (Ih) | 500µA | 500µA | 500µA | 500µA |
| Turn On Time | 60µs | 60µs | 60µs | 60µs |
| Voltage - Forward (Vf) (Typ) | 1.28V | 1.28V | 1.28V | 1.28V |
| Current - DC Forward (If) (Max) | 30 mA | 30 mA | 30 mA | 30 mA |
| Operating Temperature | -55°C ~ 100°C | -55°C ~ 100°C | -55°C ~ 100°C | -55°C ~ 100°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 6-SMD | 6-SMD | 6-SMD | 6-SMD |
| Approval Agency | cUL, FIMKO, UL | cUL, FIMKO, UL, VDE | cUL, FIMKO, UL | cUL, FIMKO, UL, VDE |
