onsemi FNA41560
- Part No.:
- FNA41560
- Manufacturer:
- onsemi
- Category:
- Power Driver Modules
- Package:
- 26-PowerDIP Module (1.024", 26.00mm)
- Description:
- MODULE SPM 600V 15A 26PWRDIP
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
FNA41560 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- onsemi
- Series:
- Motion SPM® 45
- Package/Case:
- 26-PowerDIP Module (1.024", 26.00mm)
- Packaging:
- Tube
- Product Status:
- Not For New Designs
- Type:
- IGBT
- Configuration:
- 3 Phase
- Current:
- 15 A
- Voltage:
- 600 V
- Voltage - Isolation:
- 2000Vrms
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Through Hole

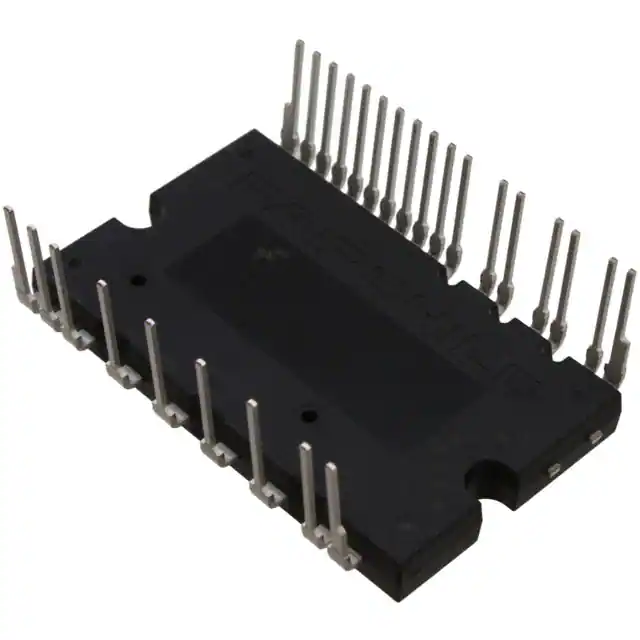

| Image |  |
 |
 |
| Part Number | FNA41560T2 | FNA41560 | FNA41560B2 |
| Manufacturer | onsemi | onsemi | onsemi |
| Series | Motion SPM® 45 | Motion SPM® 45 | Motion SPM® 45 |
| Package/Case | 26-PowerDIP Module (1.134", 28.80mm) | 26-PowerDIP Module (1.024", 26.00mm) | 26-PowerDIP Module (1.024", 26.00mm) |
| Packaging | Tube | Tube | Tube |
| Product Status | Active | Not For New Designs | Not For New Designs |
| Type | IGBT | IGBT | IGBT |
| Configuration | 3 Phase Inverter | 3 Phase | 3 Phase |
| Current | 15 A | 15 A | 15 A |
| Voltage | 600 V | 600 V | 600 V |
| Voltage - Isolation | 2000Vrms | 2000Vrms | 2000Vrms |
| Grade | - | - | - |
| Qualification | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole |
