Schaffner EMC Inc. FN7562-32-M4
- Part No.:
- FN7562-32-M4
- Manufacturer:
- Schaffner EMC Inc.
- Category:
- Feed Through Capacitors
- Package:
- Axial - Threaded Terminals
- Datasheet:
-
FN7562-32-M4.pdf
- Description:
- CAP FEEDTHRU 0.1UF 650V AXIAL
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
FN7562-32-M4 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Schaffner EMC Inc.
- Series:
- FN 756X
- Package/Case:
- Axial - Threaded Terminals
- Packaging:
- Tray
- Product Status:
- Active
- Capacitance:
- 0.1 µF
- Tolerance:
- ±20%
- Voltage - Rated:
- 650V
- Current:
- 32 A
- DC Resistance (DCR) (Max):
- 0.62mOhm (Typ)
- Operating Temperature:
- -40°C ~ 100°C
- Insertion Loss:
- -
- Temperature Coefficient:
- -
- Ratings:
- Y4
- Mounting Type:
- Bolt Mount
- Size / Dimension:
- 0.787" Dia x 1.654" L (20.00mm x 42.00mm)
- Height (Max):
- -
- Thread Size:
- -
| Image |  |
 |
 |
 |
 |

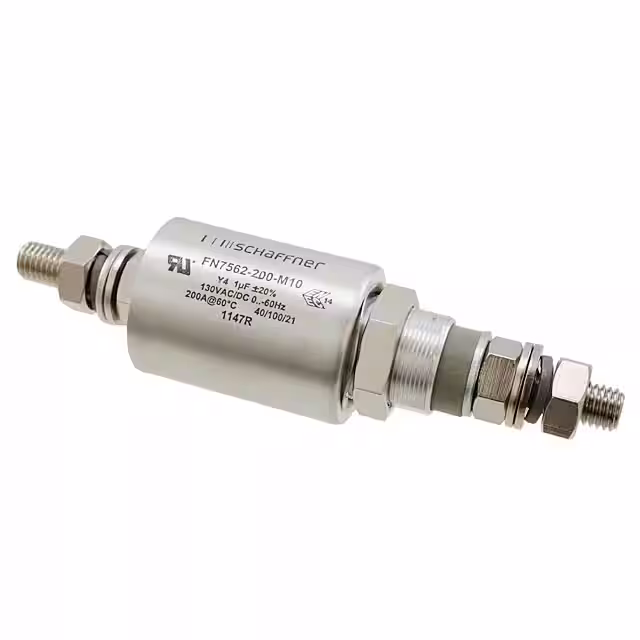

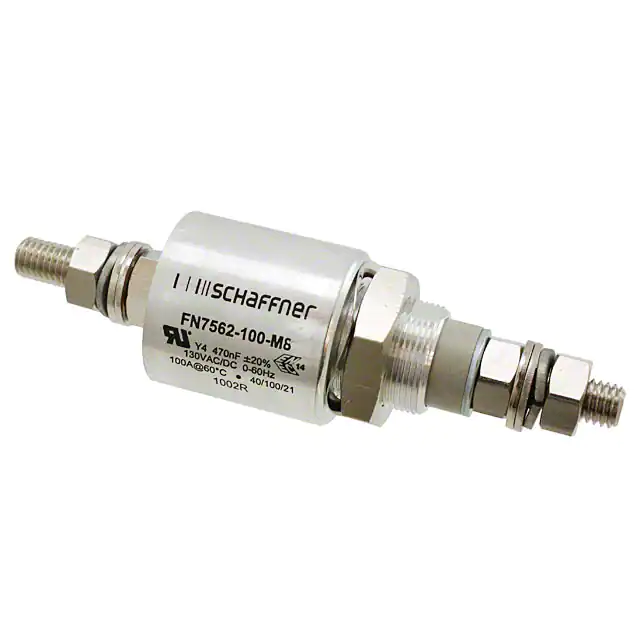

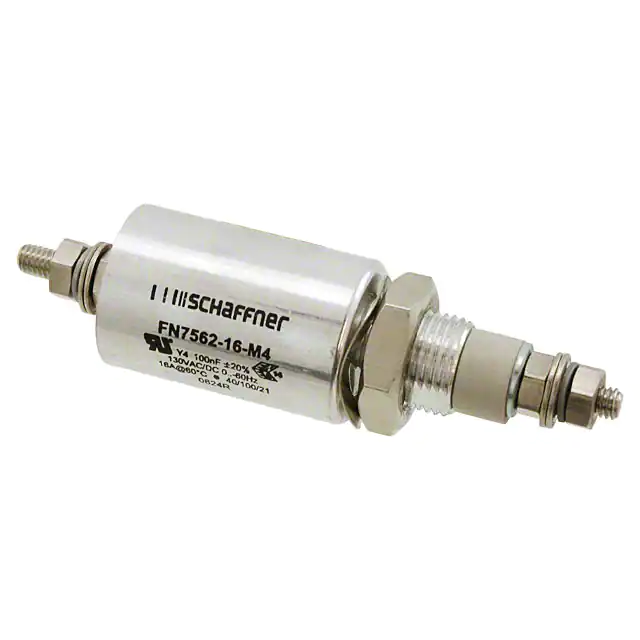

| Part Number | FN7562-32-M4 | FN7562-16-M4 | FN7562-200-M10 | FN7562-100-M8 | FN7562-63-M6 |
| Manufacturer | Schaffner EMC Inc. | Schaffner EMC Inc. | Schaffner EMC Inc. | Schaffner EMC Inc. | Schaffner EMC Inc. |
| Series | FN 756X | FN 756X | FN 756X | FN 756X | FN 756X |
| Package/Case | Axial - Threaded Terminals | Axial - Threaded Terminals | Axial - Threaded Terminals | Axial - Threaded Terminals | Axial - Threaded Terminals |
| Packaging | Tray | Tray | Tray | Tray | Bulk |
| Product Status | Active | Active | Active | Active | Active |
| Capacitance | 0.1 µF | 0.1 µF | 1 µF | 0.47 µF | 0.1 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 650V | 650V | 650V | 650V | 650V |
| Current | 32 A | 16 A | 200 A | 100 A | 63 A |
| DC Resistance (DCR) (Max) | 0.62mOhm (Typ) | 0.62mOhm (Typ) | 0.18mOhm (Typ) | 0.23mOhm (Typ) | 0.3mOhm (Typ) |
| Operating Temperature | -40°C ~ 100°C | -40°C ~ 100°C | -40°C ~ 100°C | -40°C ~ 100°C | -40°C ~ 100°C |
| Insertion Loss | - | - | - | - | - |
| Temperature Coefficient | - | - | - | - | - |
| Ratings | Y4 | Y4 | Y4 | Y4 | Y4 |
| Mounting Type | Bolt Mount | - | - | - | Bolt Mount |
| Size / Dimension | 0.787" Dia x 1.654" L (20.00mm x 42.00mm) | 0.787" Dia x 2.953" L (20.00mm x 75.00mm) | 1.496" Dia x 5.787" L (38.00mm x 147.00mm) | 1.260" Dia x 4.449" L (32.00mm x 113.00mm) | 0.984" Dia x 3.780" L (25.00mm x 96.00mm) |
| Height (Max) | - | - | - | - | - |
| Thread Size | - | M12x1 | M24x1 | M20x1 | - |
