Schaffner EMC Inc. FN7510-20-M4
- Part No.:
- FN7510-20-M4
- Manufacturer:
- Schaffner EMC Inc.
- Category:
- Feed Through Capacitors
- Package:
- Axial - Threaded Terminals
- Description:
- 0
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
FN7510-20-M4 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Schaffner EMC Inc.
- Series:
- FN 751X
- Package/Case:
- Axial - Threaded Terminals
- Packaging:
- Bulk
- Product Status:
- Obsolete
- Capacitance:
- 4700 pF
- Tolerance:
- ±20%
- Voltage - Rated:
- 1000V (1kV)
- Current:
- 20 A
- DC Resistance (DCR) (Max):
- -
- Operating Temperature:
- -40°C ~ 100°C
- Insertion Loss:
- -
- Temperature Coefficient:
- -
- Ratings:
- Y2
- Mounting Type:
- Bolt Mount
- Size / Dimension:
- -
- Height (Max):
- -
- Thread Size:
- -
| Image |  |
 |
 |
 |
 |

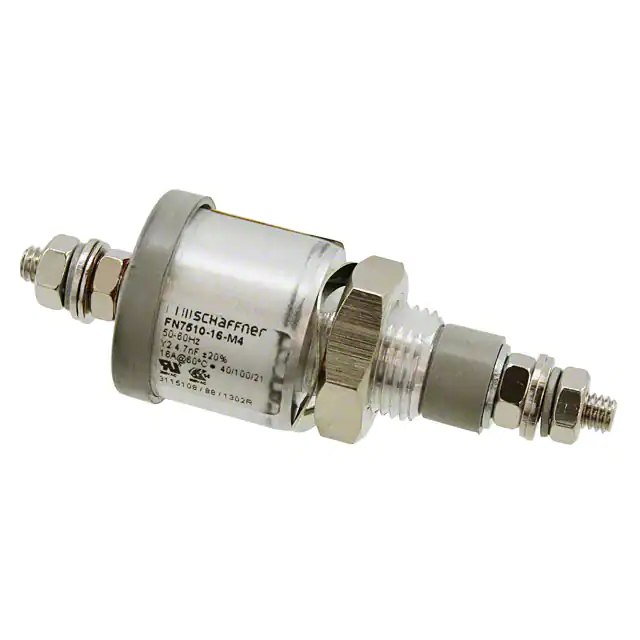

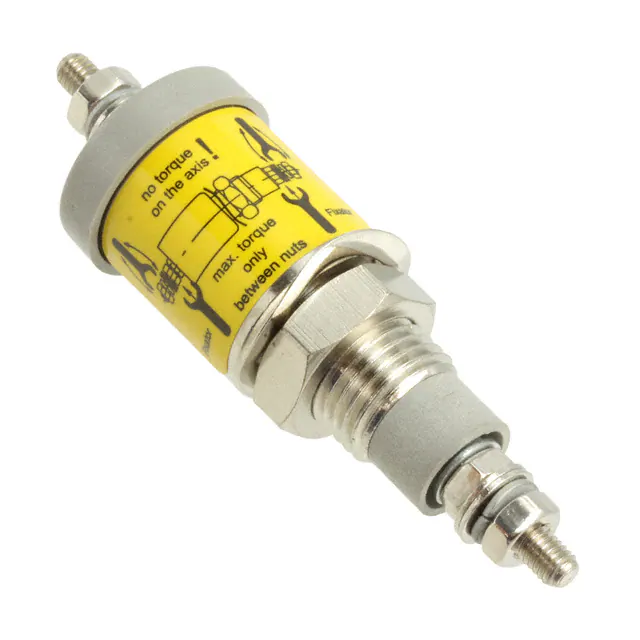

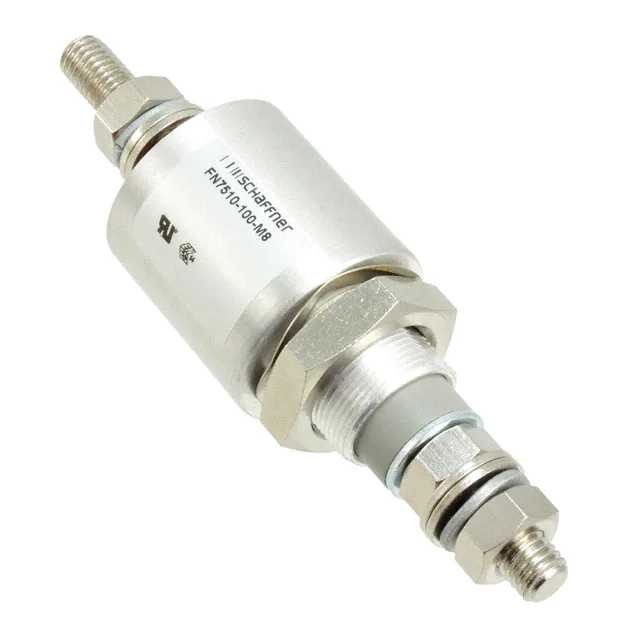

| Part Number | FN7510-32-M4 | FN7510-10-M3 | FN7510-100-M8 | FN7510-16-M4 | FN7510-20-M4 |
| Manufacturer | Schaffner EMC Inc. | Schaffner EMC Inc. | Schaffner EMC Inc. | Schaffner EMC Inc. | Schaffner EMC Inc. |
| Series | FN 751X | FN 751X | FN 751X | FN 751X | FN 751X |
| Package/Case | Axial - Threaded Terminals | Axial - Threaded Terminals | Axial - Threaded Terminals | Axial - Threaded Terminals | Axial - Threaded Terminals |
| Packaging | Tray | Tray | Tray | Tray | Bulk |
| Product Status | Active | Active | Active | Active | Obsolete |
| Capacitance | 4700 pF | 2200 pF | 0.047 µF | 4700 pF | 4700 pF |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 1000V (1kV) | 1000V (1kV) | 1000V (1kV) | 1000V (1kV) | 1000V (1kV) |
| Current | 32 A | 10 A | 100 A | 16 A | 20 A |
| DC Resistance (DCR) (Max) | 0.52mOhm (Typ) | 0.8mOhm (Typ) | 0.23mOhm (Typ) | 0.5mOhm (Typ) | - |
| Operating Temperature | -40°C ~ 100°C | -40°C ~ 100°C | -40°C ~ 100°C | -40°C ~ 100°C | -40°C ~ 100°C |
| Insertion Loss | - | - | - | - | - |
| Temperature Coefficient | - | - | - | - | - |
| Ratings | Y2 | Y2 | Y2 | Y2 | Y2 |
| Mounting Type | - | - | - | - | Bolt Mount |
| Size / Dimension | 0.864" Dia x 2.480" L (21.95mm x 63.00mm) | 0.663" Dia x 2.244" L (16.85mm x 57.00mm) | 1.260" Dia x 4.449" L (32.00mm x 113.00mm) | 0.864" Dia x 2.480" L (21.95mm x 63.00mm) | - |
| Height (Max) | - | - | - | - | - |
| Thread Size | M12x2 | M10x1 | M20x1 | M12x1 | - |
