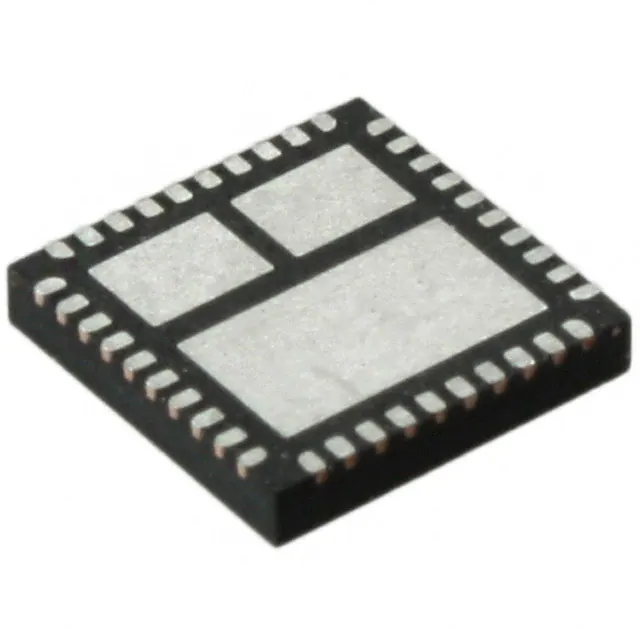

onsemi FDMF6824B-SN00323
- Part No.:
- FDMF6824B-SN00323
- Manufacturer:
- onsemi
- Category:
- Full Half-Bridge (H Bridge) Drivers
- Package:
- 40-PowerTFQFN
- Description:
- FDMF6824B-SN00323
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
FDMF6824B-SN00323 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- onsemi
- Series:
- -
- Package/Case:
- 40-PowerTFQFN
- Packaging:
- Bulk
- Product Status:
- Obsolete
- Output Configuration:
- Half Bridge
- Applications:
- DC-DC Converters, Voltage Regulators
- Interface:
- Logic, PWM
- Load Type:
- Inductive, Capacitive, Resistive
- Technology:
- DrMOS, Power MOSFET
- Rds On (Typ):
- 1Ohm LS + HS
- Current - Output / Channel:
- 55A
- Current - Peak Output:
- 55A
- Voltage - Supply:
- 4.5V ~ 5.5V
- Voltage - Load:
- 3V ~ 16V
- Operating Temperature:
- -40°C ~ 150°C (TJ)
- Grade:
- -
- Qualification:
- -
- Features:
- Bootstrap Circuit, Diode Emulation
- Fault Protection:
- Over Temperature, Shoot-Through, UVLO
- Mounting Type:
- Surface Mount
- Supplier Device Package:
- 40-PQFN (6x6)
| Image |  |
 |
| Part Number | FDMF6824B | FDMF6824B-SN00323 |
| Manufacturer | onsemi | onsemi |
| Series | XS™ DrMOS | - |
| Package/Case | 40-PowerTFQFN | 40-PowerTFQFN |
| Packaging | Tape & Reel (TR) | Bulk |
| Product Status | Obsolete | Obsolete |
| Output Configuration | Half Bridge | Half Bridge |
| Applications | Synchronous Buck Converters | DC-DC Converters, Voltage Regulators |
| Interface | PWM | Logic, PWM |
| Load Type | Inductive | Inductive, Capacitive, Resistive |
| Technology | DrMOS | DrMOS, Power MOSFET |
| Rds On (Typ) | 1Ohm LS, 1Ohm HS | 1Ohm LS + HS |
| Current - Output / Channel | 55A | 55A |
| Current - Peak Output | - | 55A |
| Voltage - Supply | 4.5V ~ 5.5V | 4.5V ~ 5.5V |
| Voltage - Load | 3V ~ 16V | 3V ~ 16V |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) |
| Grade | - | - |
| Qualification | - | - |
| Features | Bootstrap Circuit, Status Flag | Bootstrap Circuit, Diode Emulation |
| Fault Protection | Over Temperature, Shoot-Through, UVLO | Over Temperature, Shoot-Through, UVLO |
| Mounting Type | Surface Mount | Surface Mount |
| Supplier Device Package | 40-PQFN (6x6) | 40-PQFN (6x6) |
