Analog Devices Inc. EVAL-AD5761RSDZ
- Part No.:
- EVAL-AD5761RSDZ
- Manufacturer:
- Analog Devices Inc.
- Package:
- Datasheet:
-
EVAL-AD5761RSDZ.pdf
- Description:
- EVAL BOARD FOR AD5761R
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
EVAL-AD5761RSDZ Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Analog Devices Inc.
- Series:
- -
- Packaging:
- Box
- Product Status:
- Active
- Number of DAC's:
- 1
- Number of Bits:
- 16
- Sampling Rate (Per Second):
- -
- Data Interface:
- Serial
- Settling Time:
- 9 µs
- DAC Type:
- Voltage
- Utilized IC / Part:
- AD5761R
- Contents:
- Board(s)
| Image |  |
 |
 |
 |
 |

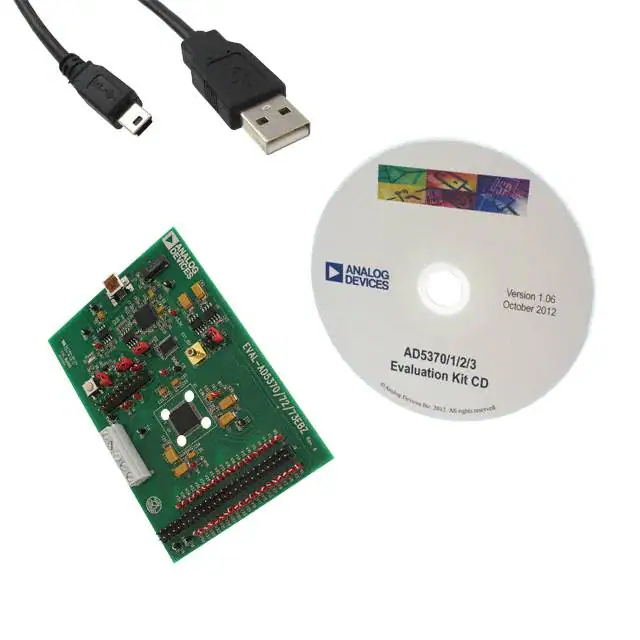

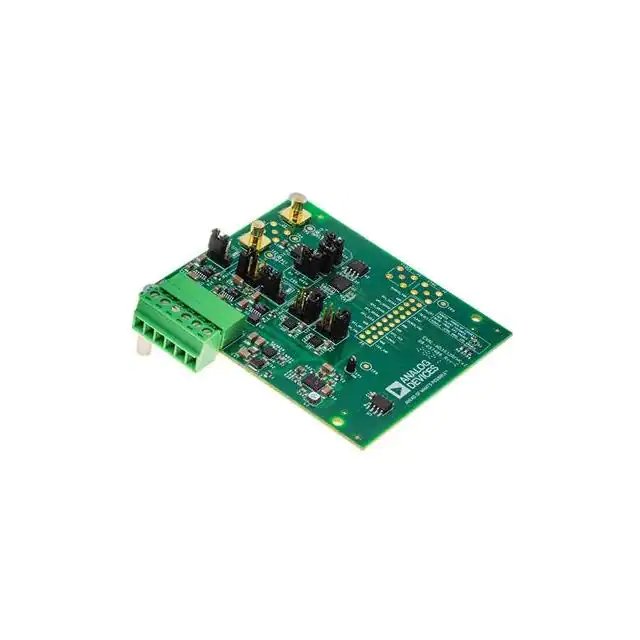

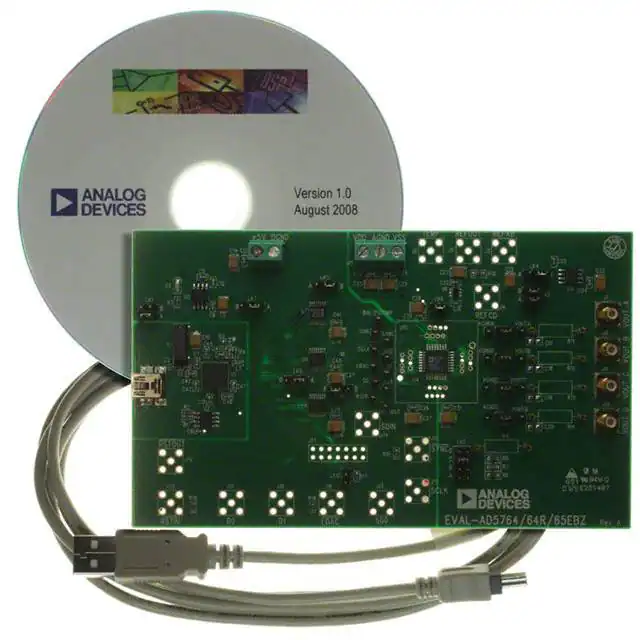

| Part Number | EVAL-AD5761RSDZ | EVAL-AD5679RSDZ | EVAL-AD5370EBZ | EVAL-AD5764EBZ | EVAL-AD3552RFMC1Z |
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Series | - | nanoDAC+® | - | - | - |
| Packaging | Box | Box | Box | Box | Box |
| Product Status | Active | Active | Active | Active | Active |
| Number of DAC's | 1 | 16 | 40 | 4 | 1 |
| Number of Bits | 16 | 16 | 16 | 16 | 16 |
| Sampling Rate (Per Second) | - | - | 540k | 30M | - |
| Data Interface | Serial | Serial, SPI | Serial | DSP, MICROWIRE™, QSPI™, Serial, SPI™ | Serial, SPI |
| Settling Time | 9 µs | 6 µs | 20 µs | 8 µs | 100 ns |
| DAC Type | Voltage | Voltage | Voltage | Voltage | Voltage |
| Utilized IC / Part | AD5761R | AD5679R | AD5370 | AD5764 | AD3552R |
| Contents | Board(s) | Board(s) | Board(s) | Board(s), Cable(s) | Board(s) |
