Analog Devices Inc. EVAL01-HMCAD1520
- Part No.:
- EVAL01-HMCAD1520
- Manufacturer:
- Analog Devices Inc.
- Package:
- Datasheet:
-
EVAL01-HMCAD1520.pdf
- Description:
- EVAL BOARD HMCAD1520
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
EVAL01-HMCAD1520 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Analog Devices Inc.
- Series:
- EasyBoard™
- Packaging:
- Box
- Product Status:
- Active
- Number of A/D Converters:
- 4
- Number of Bits:
- 8, 12, 14, 16
- Sampling Rate (Per Second):
- 1G
- Data Interface:
- LVDS, Serial, SPI
- Input Range:
- 2Vpp
- Power (Typ) @ Conditions:
- -
- Utilized IC / Part:
- HMCAD1520
- Contents:
- Board(s)
| Image |  |
 |
 |
 |
 |

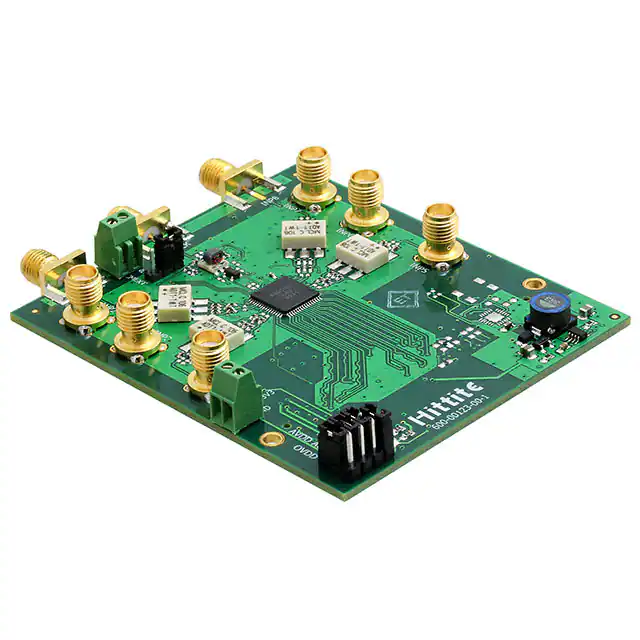

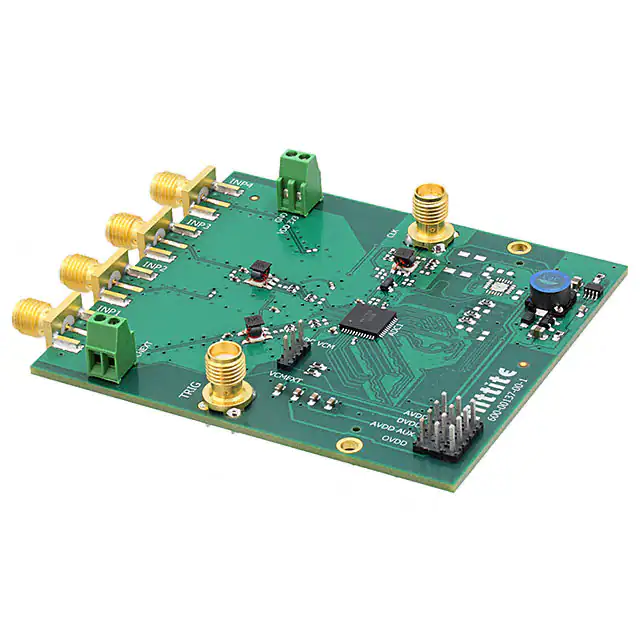

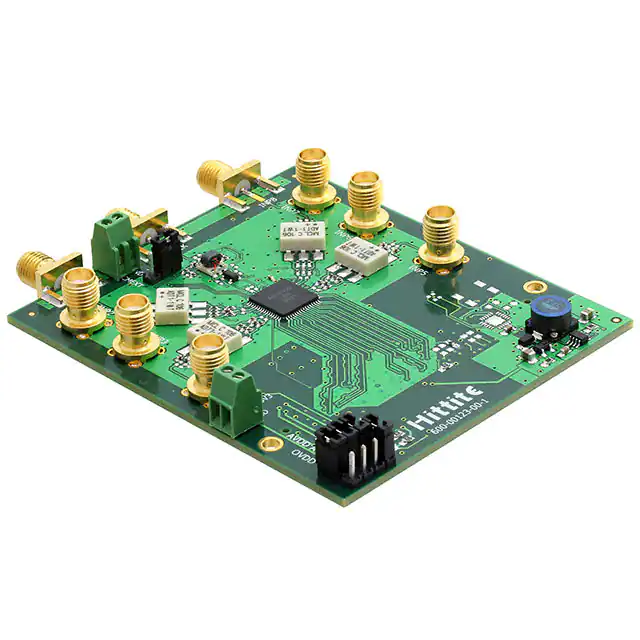

| Part Number | EVAL01-HMCAD1101 | EVAL01-HMCAD1102 | EVAL01-HMCAD1041 | EVAL01-HMCAD1511 | EVAL01-HMCAD1520 |
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Series | EasyBoard™ | EasyBoard™ | EasyBoard™ | EasyBoard™ | EasyBoard™ |
| Packaging | Box | Box | Box | Box | Box |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Active |
| Number of A/D Converters | 8 | 8 | 1 | 4 | 4 |
| Number of Bits | 12, 13 | 12 | 10 | 8 | 8, 12, 14, 16 |
| Sampling Rate (Per Second) | 65M | 80M | 65M, 80M | 1G | 1G |
| Data Interface | LVDS - Serial | LVDS - Serial | Parallel | LVDS, Serial, SPI | LVDS, Serial, SPI |
| Input Range | 2Vpp | 2Vpp | 2Vpp | 2Vpp | 2Vpp |
| Power (Typ) @ Conditions | 405mW @ 65MSPS | 470mW @ 80MSPS | - | 710mW @ 1GSPS | - |
| Utilized IC / Part | HMCAD1101 | HMCAD1102 | HMCAD1041 | HMCAD1511 | HMCAD1520 |
| Contents | Board(s) | Board(s) | Board(s) | Board(s) | Board(s) |
