Intel EPM7064STC100-7N
- Part No.:
- EPM7064STC100-7N
- Manufacturer:
- Intel
- Package:
- 100-TQFP
- Datasheet:
-
EPM7064STC100-7N.pdf
- Description:
- IC CPLD 64MC 7.5NS 100TQFP
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
EPM7064STC100-7N Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Intel
- Series:
- MAX® 7000S
- Package/Case:
- 100-TQFP
- Packaging:
- Tray
- Product Status:
- Obsolete
- Programmable:
- Not Verified
- Programmable Type:
- In System Programmable
- Delay Time tpd(1) Max:
- 7.5 ns
- Voltage Supply - Internal:
- 4.75V ~ 5.25V
- Number of Logic Elements/Blocks:
- 4
- Number of Macrocells:
- 64
- Number of Gates:
- 1250
- Number of I/O:
- 68
- Operating Temperature:
- 0°C ~ 70°C (TA)
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Surface Mount
- Supplier Device Package:
- 100-TQFP (14x14)

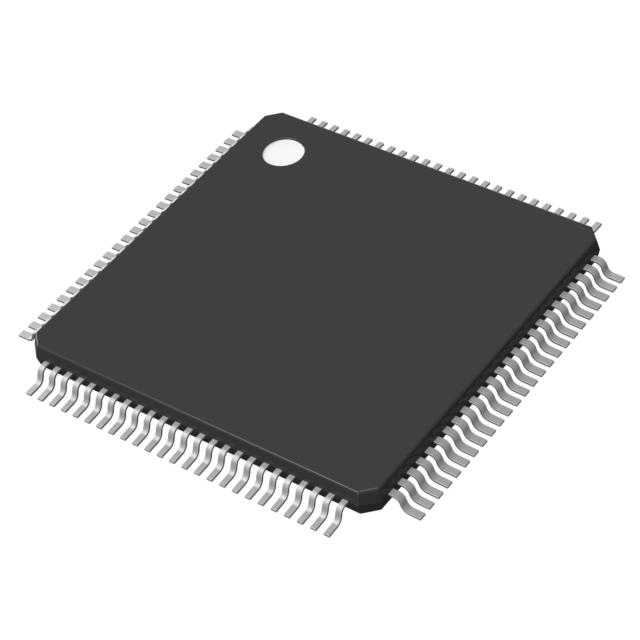

| Image |  |
 |
|
|
|
| Part Number | EPM7064STC100-6 | EPM7064STC100-6F | EPM7064STC100-5F | EPM7064STC100-10 | EPM7064STC100-10F |
| Manufacturer | Intel | Intel | Intel | Intel | Intel |
| Series | MAX® 7000S | MAX® 7000S | MAX® 7000S | MAX® 7000S | MAX® 7000S |
| Package/Case | 100-TQFP | 100-TQFP | 100-TQFP | 100-TQFP | 100-TQFP |
| Packaging | Tray | Tray | Tray | Tray | Tray |
| Product Status | Active | Obsolete | Obsolete | Obsolete | Obsolete |
| Programmable | Not Verified | Not Verified | Not Verified | Not Verified | Not Verified |
| Programmable Type | In System Programmable | In System Programmable | In System Programmable | In System Programmable | In System Programmable |
| Delay Time tpd(1) Max | 6 ns | 6 ns | 5 ns | 10 ns | 10 ns |
| Voltage Supply - Internal | 4.75V ~ 5.25V | 4.75V ~ 5.25V | 4.75V ~ 5.25V | 4.75V ~ 5.25V | 4.75V ~ 5.25V |
| Number of Logic Elements/Blocks | 4 | 4 | 4 | 4 | 4 |
| Number of Macrocells | 64 | 64 | 64 | 64 | 64 |
| Number of Gates | 1250 | 1250 | 1250 | 1250 | 1250 |
| Number of I/O | 68 | 68 | 68 | 68 | 68 |
| Operating Temperature | 0°C ~ 70°C (TA) | 0°C ~ 70°C (TA) | 0°C ~ 70°C (TA) | 0°C ~ 70°C (TA) | 0°C ~ 70°C (TA) |
| Grade | - | - | - | - | - |
| Qualification | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 100-TQFP (14x14) | 100-TQFP (14x14) | 100-TQFP (14x14) | 100-TQFP (14x14) | 100-TQFP (14x14) |
- Include Parts
- Popular Search
The following parts include "EPM7064STC100-7N" in Silicon Labs EPM7064STC100-7N.
- Part Number
- Manufacturer
- Package
- Description
- 5M40ZE64C5N Intel 64-TQFP Exposed Pad IC CPLD 32MC 7.5NS 64EQFP
- ATF1502ASV-15AU44 Microchip Technology 44-TQFP IC CPLD 32MC 15NS 44TQFP
- 5M80ZE64C5N Intel 64-TQFP Exposed Pad IC CPLD 64MC 7.5NS 64EQFP
- 5M80ZT100C5N Intel 100-TQFP IC CPLD 64MC 7.5NS 100TQFP
- ATF1502AS-10AU44 Microchip Technology 44-TQFP IC CPLD 32MC 10NS 44TQFP
- ATF1502AS-10JU44 Microchip Technology 44-LCC (J-Lead) IC CPLD 32MC 10NS 44PLCC
- 5M80ZE64I5N Intel 64-TQFP Exposed Pad IC CPLD 64MC 7.5NS 64EQFP
- 5M80ZT100I5N Intel 100-TQFP IC CPLD 64MC 7.5NS 100TQFP
- LC4032V-75TN48C Lattice Semiconductor Corporation 48-LQFP IC CPLD 32MC 7.5NS 48TQFP
- ATF1504ASV-15AU44 Microchip Technology 44-TQFP IC CPLD 64MC 15NS 44TQFP
