Intel EPM7064LC68-12MM
- Part No.:
- EPM7064LC68-12MM
- Manufacturer:
- Intel
- Package:
- 68-LCC (J-Lead)
- Datasheet:
-
EPM7064LC68-12MM.pdf
- Description:
- IC CPLD 64MC 12NS 68PLCC
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
EPM7064LC68-12MM Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Intel
- Series:
- MAX® 7000
- Package/Case:
- 68-LCC (J-Lead)
- Packaging:
- Tray
- Product Status:
- Obsolete
- Programmable:
- Not Verified
- Programmable Type:
- EE PLD
- Delay Time tpd(1) Max:
- 12 ns
- Voltage Supply - Internal:
- 4.75V ~ 5.25V
- Number of Logic Elements/Blocks:
- 4
- Number of Macrocells:
- 64
- Number of Gates:
- 1250
- Number of I/O:
- 52
- Operating Temperature:
- 0°C ~ 70°C (TA)
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Surface Mount
- Supplier Device Package:
- 68-PLCC (24x24)

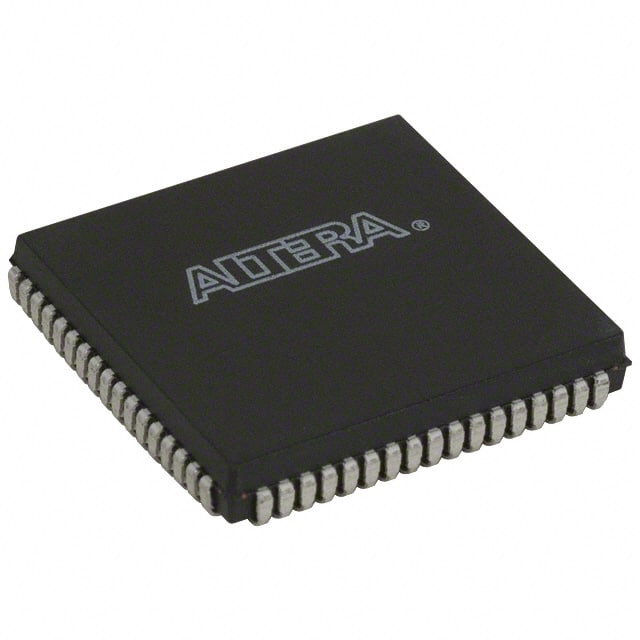

| Image |  |
|
|
|
 |
| Part Number | EPM7064LC68-10 | EPM7064LC68-12 | EPM7064LC68-15 | EPM7064LC68-7 | EPM7064LC68-10YY |
| Manufacturer | Intel | Intel | Intel | Intel | Intel |
| Series | MAX® 7000 | MAX® 7000 | MAX® 7000 | MAX® 7000 | MAX® 7000 |
| Package/Case | 68-LCC (J-Lead) | 68-LCC (J-Lead) | 68-LCC (J-Lead) | 68-LCC (J-Lead) | 68-LCC (J-Lead) |
| Packaging | Tube | Tube | Tube | Tube | Tray |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Programmable | Not Verified | Not Verified | Not Verified | Not Verified | Not Verified |
| Programmable Type | EE PLD | EE PLD | EE PLD | EE PLD | EE PLD |
| Delay Time tpd(1) Max | 10 ns | 12 ns | 15 ns | 7.5 ns | 10 ns |
| Voltage Supply - Internal | 4.75V ~ 5.25V | 4.75V ~ 5.25V | 4.75V ~ 5.25V | 4.75V ~ 5.25V | 4.75V ~ 5.25V |
| Number of Logic Elements/Blocks | 4 | 4 | 4 | 4 | 4 |
| Number of Macrocells | 64 | 64 | 64 | 64 | 64 |
| Number of Gates | 1250 | 1250 | 1250 | 1250 | 1250 |
| Number of I/O | 52 | 52 | 52 | 52 | 52 |
| Operating Temperature | 0°C ~ 70°C (TA) | 0°C ~ 70°C (TA) | 0°C ~ 70°C (TA) | 0°C ~ 70°C (TA) | 0°C ~ 70°C (TA) |
| Grade | - | - | - | - | - |
| Qualification | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 68-PLCC (24x24) | 68-PLCC (24x24) | 68-PLCC (24x24) | 68-PLCC (24x24) | 68-PLCC (24x24) |
