Panasonic Electronic Components ENW-F9408A1EF
- Part No.:
- ENW-F9408A1EF
- Manufacturer:
- Panasonic Electronic Components
- Category:
- RF Transceiver Modules and Modems
- Package:
- 64-SMD Module
- Datasheet:
-
ENW-F9408A1EF.pdf
- Description:
- RF TXRX MOD BLUETOOTH WIFISMD
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
ENW-F9408A1EF Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Panasonic Electronic Components
- Series:
- -
- Package/Case:
- 64-SMD Module
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Active
- Programmable:
- Not Verified
- RF Family/Standard:
- Bluetooth, WiFi
- Protocol:
- 802.11a/b/g/n/ac, Bluetooth v5.0
- Modulation:
- 16QAM, 64QAM, BPSK, CCK, DPSK, DQPSK, DSSS, GFSK, QPSK, OFDM
- Frequency:
- 2.4GHz, 5GHz
- Data Rate:
- 200Mbps
- Power - Output:
- 16dBm
- Sensitivity:
- -97dBm
- Serial Interfaces:
- SDIO, JTAG, PCM, UART
- Antenna Type:
- Antenna Not Included
- Utilized IC / Part:
- 88W8987, PAN9028
- Memory Size:
- -
- Voltage - Supply:
- 3V ~ 3.6V
- Current - Receiving:
- 60mA
- Current - Transmitting:
- 320mA
- Mounting Type:
- Surface Mount
- Operating Temperature:
- -30°C ~ 85°C (TA)
| Image |  |
 |
 |
 |
 |

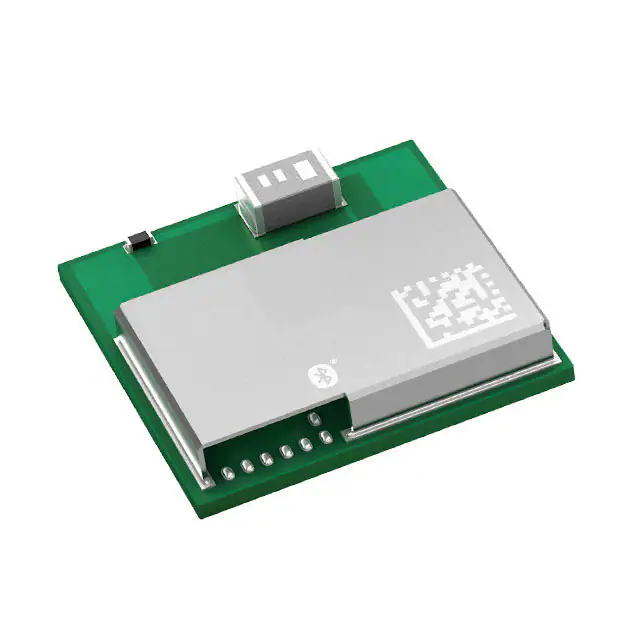

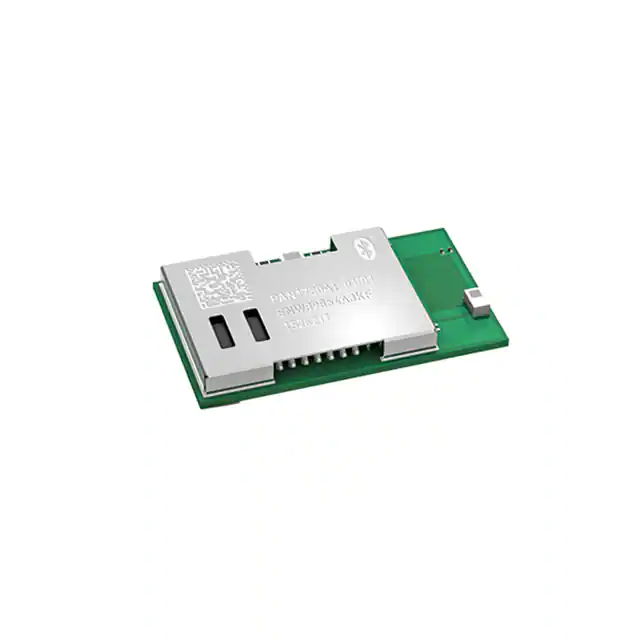

| Part Number | ENW-F9201A1EF | ENW-F9408A1EF | ENW-89823A3KF | ENW-89854A3KF | ENW-89854A1KF |
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Series | PAN9026 | - | PAN1326B | PAN1780AT | PAN1780 |
| Package/Case | 51-SMD Module | 64-SMD Module | Module | 74-SMD Module | 74-SMD Module |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
| Product Status | Active | Active | Active | Active | Active |
| Programmable | Not Verified | Not Verified | Not Verified | Not Verified | Not Verified |
| RF Family/Standard | Bluetooth, WiFi | Bluetooth, WiFi | Bluetooth | 802.15.4, Bluetooth | Bluetooth |
| Protocol | 802.11a/b/g/n, Bluetooth v5.0 | 802.11a/b/g/n/ac, Bluetooth v5.0 | Bluetooth v4.0 | Bluetooth v5.0 | Bluetooth v5.0 |
| Modulation | CCK, DSSS, OFDM | 16QAM, 64QAM, BPSK, CCK, DPSK, DQPSK, DSSS, GFSK, QPSK, OFDM | GFSK | - | - |
| Frequency | 2.4GHz, 5GHz | 2.4GHz, 5GHz | 2.4GHz | - | - |
| Data Rate | 150Mbps | 200Mbps | 3Mbps | 2Mbps | 2Mbps |
| Power - Output | 16dBm | 16dBm | 10dBm | 8dBm | 8dBm |
| Sensitivity | -98dBm | -97dBm | -93dBm | -103dBm | -103dBm |
| Serial Interfaces | SDIO, JTAG, PCM, UART | SDIO, JTAG, PCM, UART | I2S, UART | ADC, GPIO, I2C, I2S, SPI, PDM, PWM, UART, USB | ADC, GPIO, I2C, PWM, SPI, UART |
| Antenna Type | Integrated, Chip | Antenna Not Included | Integrated, Chip | Integrated, Ceramic Patch | Integrated, Chip |
| Utilized IC / Part | 88W8977, PAN9026 | 88W8987, PAN9028 | CC2564B | nRF52840 | nRF52840 |
| Memory Size | - | - | - | 1MB Flash, 256kB RAM | 1MB Flash, 256kB RAM |
| Voltage - Supply | 1.8V ~ 3.3V | 3V ~ 3.6V | 1.7V ~ 4.8V | - | 1.7V ~ 5.5V |
| Current - Receiving | 70mA | 60mA | 33mA | 4.8mA | 4.8mA |
| Current - Transmitting | 400mA | 320mA | 33mA | 4.8mA | 4.8mA |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Operating Temperature | -30°C ~ 85°C | -30°C ~ 85°C (TA) | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
