CUI Inc. EMC-05B
- Part No.:
- EMC-05B
- Manufacturer:
- CUI Inc.
- Category:
- Power Line Filter Modules
- Package:
- Datasheet:
-
EMC-05B.pdf
- Description:
- LINE FILTER 85V-305VAC 0.5A TH
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
EMC-05B Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- CUI Inc.
- Series:
- -
- Packaging:
- Tray
- Product Status:
- Not For New Designs
- Filter Type:
- Single Phase
- Configuration:
- Single Stage
- Voltage - Rated DC:
- -
- Voltage - Rated AC:
- 85V ~ 305V
- Voltage - Rated AC (Phase to Ground/Neutral):
- -
- Voltage - Rated AC (Phase to Phase):
- -
- Current:
- 500 mA
- Frequency - Operating:
- 47Hz, 63Hz
- Applications:
- General Purpose
- Approval Agency:
- -
- Operating Temperature:
- -40°C ~ 85°C
- Mounting Type:
- Through Hole
- Termination Style:
- PC Pins
- Inductance:
- -
| Image |  |
 |
 |
 |
 |

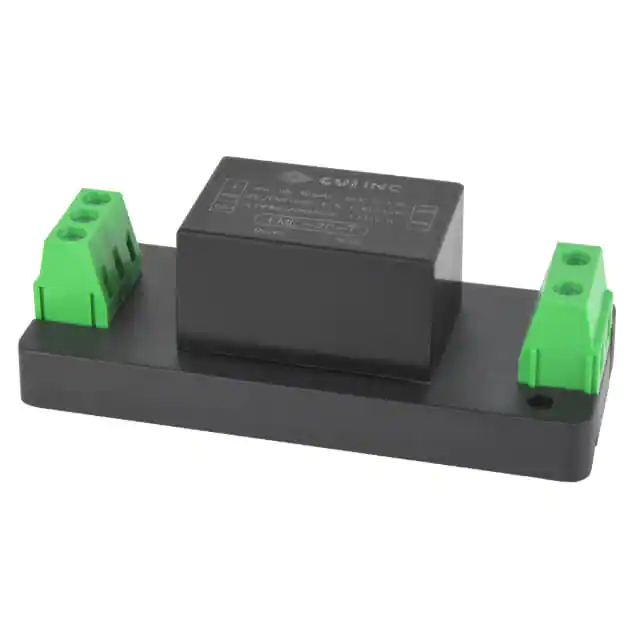

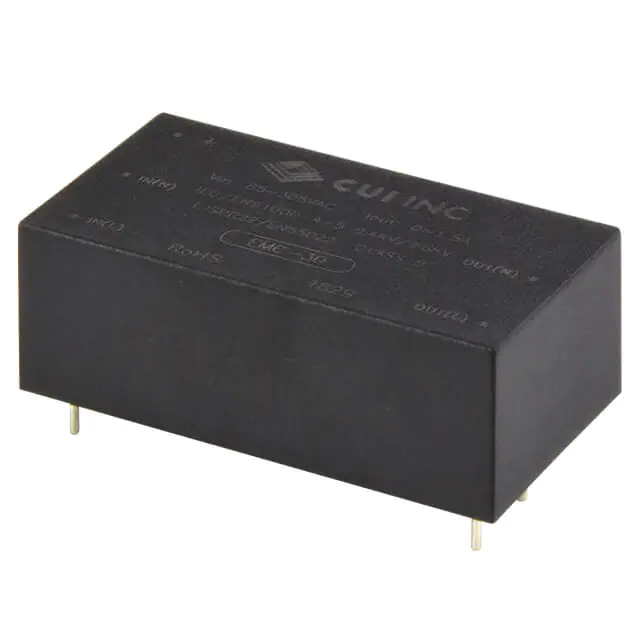

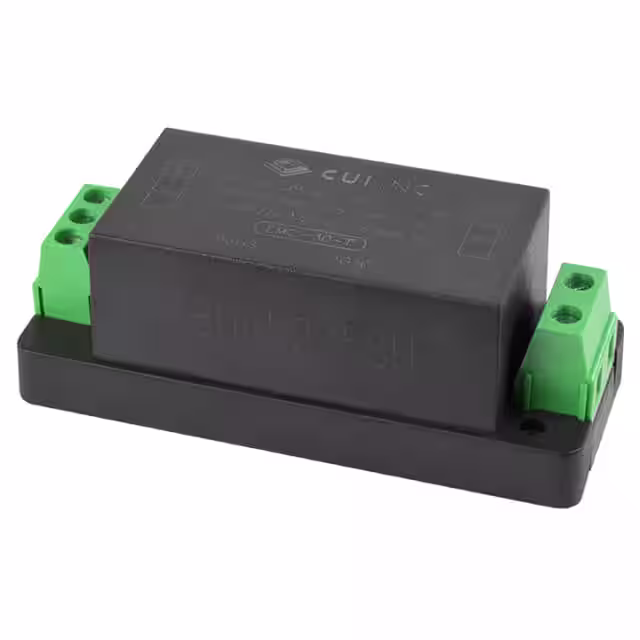

| Part Number | EMC-05B | EMC-05A | EMC-30 | EMC-20-T | EMC-30-T |
| Manufacturer | CUI Inc. | CUI Inc. | CUI Inc. | CUI Inc. | CUI Inc. |
| Series | - | - | EMC-30 | EMC-20 | EMC-30 |
| Packaging | Tray | Tray | Tray | Tray | Tray |
| Product Status | Not For New Designs | Not For New Designs | Not For New Designs | Not For New Designs | Not For New Designs |
| Filter Type | Single Phase | Single Phase | Single Phase | Single Phase | Single Phase |
| Configuration | Single Stage | Single Stage | Single Stage | Single Stage | Single Stage |
| Voltage - Rated DC | - | - | - | - | - |
| Voltage - Rated AC | 85V ~ 305V | 85V ~ 305V | 85V ~ 305V | 85V ~ 305V | 85V ~ 305V |
| Voltage - Rated AC (Phase to Ground/Neutral) | - | - | - | - | - |
| Voltage - Rated AC (Phase to Phase) | - | - | - | - | - |
| Current | 500 mA | 500 mA | 1.5 A | 1.5 A | 1.5 A |
| Frequency - Operating | 47Hz, 63Hz | 47Hz, 63Hz | 47Hz, 63Hz | 47Hz, 63Hz | 47Hz, 63Hz |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Approval Agency | - | - | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Chassis Mount | Chassis Mount |
| Termination Style | PC Pins | PC Pins | PC Pins | Terminal Block | Terminal Block |
| Inductance | - | - | - | - | - |
