Silicon Labs EFR32FG23A010F256GM40-C
- Part No.:
- EFR32FG23A010F256GM40-C
- Manufacturer:
- Silicon Labs
- Category:
- RF Transceiver ICs
- Package:
- 40-VFQFN Exposed Pad
- Datasheet:
-
EFR32FG23A010F256GM40-C.pdf
- Description:
- IC RF TXRX+MCU ISM<1GHZ 40QFN
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
EFR32FG23A010F256GM40-C Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Silicon Labs
- Series:
- -
- Package/Case:
- 40-VFQFN Exposed Pad
- Packaging:
- Tray
- Product Status:
- Active
- Programmable:
- -
- Type:
- TxRx + MCU
- RF Family/Standard:
- General ISM < 1GHz
- Protocol:
- Flex Gecko
- Modulation:
- 2FSK, 2GMSK, 4FSK, 4GMSK, DSSS, GFSK, GMSK, OOK, O-QPSK
- Frequency:
- 110MHz ~ 223MHz, 223MHz ~ 372MHz, 372MHz ~ 557MHz, 557MHz ~ 727MHz, 742MHz ~ 970MHz
- Data Rate (Max):
- 2Mbps
- Power - Output:
- 14dBm
- Sensitivity:
- -126.9dBm
- Memory Size:
- 256kB Flash, 32kB RAM
- Serial Interfaces:
- ADC, I2C, I2S, IrDA, SPI, UART, USART
- GPIO:
- 23
- Voltage - Supply:
- 1.71V ~ 3.8V
- Current - Receiving:
- 3.7mA ~ 9.5mA
- Current - Transmitting:
- 8.2mA ~ 92mA
- Operating Temperature:
- -40°C ~ 85°C (TA)
- Grade:
- -
- Qualification:
- -
- Supplier Device Package:
- 40-QFN (5x5)
| Image |  |
 |
 |
|

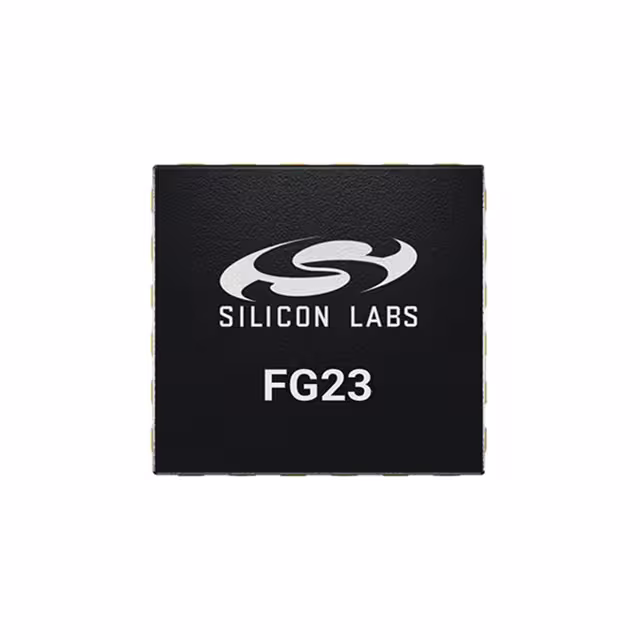

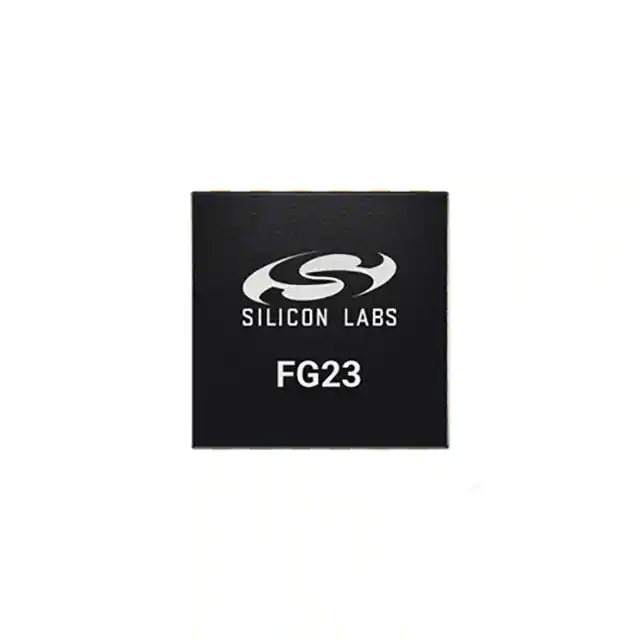

| Part Number | EFR32FG23A010F256GM40-C | EFR32FG23A010F256GM40-B | EFR32FG23A010F256GM40-BR | EFR32FG23A010F256GM40-CR |
| Manufacturer | Silicon Labs | Silicon Labs | Silicon Labs | Silicon Labs |
| Series | - | - | - | EFR32FG23 |
| Package/Case | 40-VFQFN Exposed Pad | 40-VFQFN Exposed Pad | 40-VFQFN Exposed Pad | 40-VFQFN Exposed Pad |
| Packaging | Tray | Tray | Tape & Reel (TR) | Tape & Reel (TR) |
| Product Status | Active | Discontinued at Digi-Key | Discontinued at Digi-Key | Active |
| Programmable | - | Not Verified | Not Verified | - |
| Type | TxRx + MCU | TxRx + MCU | TxRx + MCU | TxRx + MCU |
| RF Family/Standard | General ISM < 1GHz | General ISM < 1GHz | General ISM < 1GHz | WiFi |
| Protocol | Flex Gecko | Flex Gecko | Flex Gecko | - |
| Modulation | 2FSK, 2GMSK, 4FSK, 4GMSK, DSSS, GFSK, GMSK, OOK, O-QPSK | 2FSK, 4FSK, DSSS, GFSK, GMSK, OOK, OQPSK | 2FSK, 4FSK, DSSS, GFSK, GMSK, OOK, OQPSK | 2FSK, 2GMSK, 4FSK, 4GMSK, DSSS, GFSK, GMSK, OOK, O-QPSK |
| Frequency | 110MHz ~ 223MHz, 223MHz ~ 372MHz, 372MHz ~ 557MHz, 557MHz ~ 727MHz, 742MHz ~ 970MHz | 110MHz ~ 223MHz, 223MHz ~ 372MHz, 372MHz ~ 557MHz, 557MHz ~ 727MHz, 742MHz ~ 970MHz | 110MHz ~ 223MHz, 223MHz ~ 372MHz, 372MHz ~ 557MHz, 557MHz ~ 727MHz, 742MHz ~ 970MHz | 169.4MHz ~ 169.475MHz, 169.5875MHz ~ 169.8125MHz, 314MHz ~ 315MHz, 314MHz ~ 316MHz, 433MHz ~ 434.79MHz, 470MHz ~ 510MHz, 863MHz ~ 869.2MHz, 863MHz ~ 870MHz, 869.4MHz ~ 869.65MHz, 902MHz ~ 928MHz, 920M |
| Data Rate (Max) | 2Mbps | 2Mbps | 2Mbps | 2Mbps |
| Power - Output | 14dBm | 14dBm | 14dBm | 14dBm |
| Sensitivity | -126.9dBm | -125.8dBm | -125.8dBm | -126.9dBm |
| Memory Size | 256kB Flash, 32kB RAM | 256kB Flash, 32kB RAM | 256kB Flash, 32kB RAM | 256kB Flash, 32kB RAM |
| Serial Interfaces | ADC, I2C, I2S, IrDA, SPI, UART, USART | I2C, I2S, SPI, UART | I2C, I2S, SPI, UART | ADC, I2C, I2S, IrDA, SPI, UART, USART |
| GPIO | 23 | 23 | 23 | 23 |
| Voltage - Supply | 1.71V ~ 3.8V | 1.71V ~ 3.8V | 1.71V ~ 3.8V | 1.71V ~ 3.8V |
| Current - Receiving | 3.7mA ~ 9.5mA | 3.7mA ~ 9.5mA | 3.7mA ~ 9.5mA | 3.7mA ~ 9.5mA |
| Current - Transmitting | 8.2mA ~ 92mA | 8.2mA ~ 90.6mA | 8.2mA ~ 90.6mA | 8.2mA ~ 92mA |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Grade | - | - | - | - |
| Qualification | - | - | - | - |
| Supplier Device Package | 40-QFN (5x5) | 40-QFN (5x5) | 40-QFN (5x5) | 40-QFN (5x5) |
