Quectel EC21AUXGA-128-SGNS2
- Part No.:
- EC21AUXGA-128-SGNS2
- Manufacturer:
- Quectel
- Category:
- RF Transceiver Modules and Modems
- Package:
- Module
- Datasheet:
-
EC21AUXGA-128-SGNS2.pdf
- Description:
- RF TXRX MODULE CELL SMD
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
EC21AUXGA-128-SGNS2 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Quectel
- Series:
- EC21
- Package/Case:
- Module
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Obsolete
- Programmable:
- Not Verified
- RF Family/Standard:
- Cellular
- Protocol:
- GSM, LTE, WCDMA
- Modulation:
- -
- Frequency:
- -
- Data Rate:
- 10Mbps
- Power - Output:
- 33dBm
- Sensitivity:
- -102dBm
- Serial Interfaces:
- UART, USB
- Antenna Type:
- Antenna Not Included
- Utilized IC / Part:
- -
- Memory Size:
- -
- Voltage - Supply:
- 3.3V ~ 4.3V
- Current - Receiving:
- 34mA
- Current - Transmitting:
- 34mA
- Mounting Type:
- Surface Mount
- Operating Temperature:
- -40°C ~ 85°C
| Image |  |
 |
 |

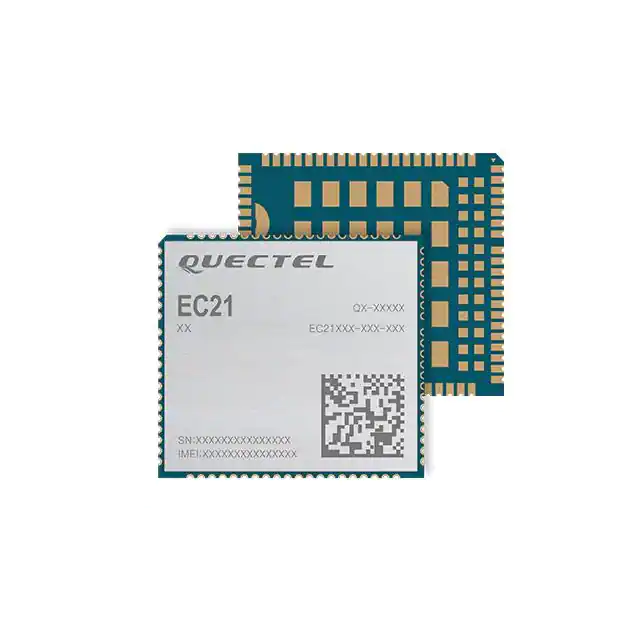

| Part Number | EC21AUXGA-128-SGNS | EC21AUXGA-MINIPCIE | EC21AUXGA-128-SGNS2 |
| Manufacturer | Quectel | Quectel | Quectel |
| Series | EC21 | - | EC21 |
| Package/Case | Module | Module | Module |
| Packaging | Tape & Reel (TR) | Tray | Tape & Reel (TR) |
| Product Status | Obsolete | Obsolete | Obsolete |
| Programmable | Not Verified | Not Verified | Not Verified |
| RF Family/Standard | Cellular | Cellular, Navigation | Cellular |
| Protocol | GSM, LTE, WCDMA | BeiDou, EDGE, Galileo, GLONASS, GPS, GNSS, GSM, LTE, UMTS, WCDMA | GSM, LTE, WCDMA |
| Modulation | - | - | - |
| Frequency | - | - | - |
| Data Rate | 10Mbps | 42Mbps | 10Mbps |
| Power - Output | 33dBm | - | 33dBm |
| Sensitivity | -102dBm | - | -102dBm |
| Serial Interfaces | UART, USB | I2C, PCM, UART, USB | UART, USB |
| Antenna Type | Antenna Not Included | Antenna Not Included | Antenna Not Included |
| Utilized IC / Part | - | - | - |
| Memory Size | - | - | - |
| Voltage - Supply | 3.3V ~ 4.3V | 3V ~ 3.6V | 3.3V ~ 4.3V |
| Current - Receiving | 34mA | 22mA | 34mA |
| Current - Transmitting | 34mA | 22mA | 34mA |
| Mounting Type | Surface Mount | Card Edge | Surface Mount |
| Operating Temperature | -40°C ~ 85°C | -35°C ~ 75°C | -40°C ~ 85°C |
