Display Visions EA W162-XBLW
- Part No.:
- EA W162-XBLW
- Manufacturer:
- Display Visions
- Category:
- LCD, OLED Character and Numeric
- Package:
- Datasheet:
-
EA W162-XBLW.pdf
- Description:
- OLED MODULE 32DIG 16 X 2 PASSIVE
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
EA W162-XBLW Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Display Visions
- Series:
- -
- Packaging:
- Bag
- Product Status:
- Active
- Number of Characters:
- 32.0
- Display Format:
- 16 x 2
- Character Format:
- 5 x 8 Dots
- Display Type:
- OLED
- Display Mode:
- Passive
- Character Size:
- 8.90mm H x 4.74mm W
- Outline L x W x H:
- 122.00mm x 44.00mm x 4.70mm
- Viewing Area:
- 99.00mm L x 24.00mm W
- Backlight:
- Without Backlight
- Voltage - Supply:
- 3.3V ~ 5V
- Dot Size:
- 0.90mm W x 1.06mm H
- Interface:
- Parallel, 8-Bit
- Controller Type:
- -
- Operating Temperature:
- -40°C ~ 80°C
- Text Color:
- White
- Background Color:
- Black
| Image |  |
 |
 |
 |
|

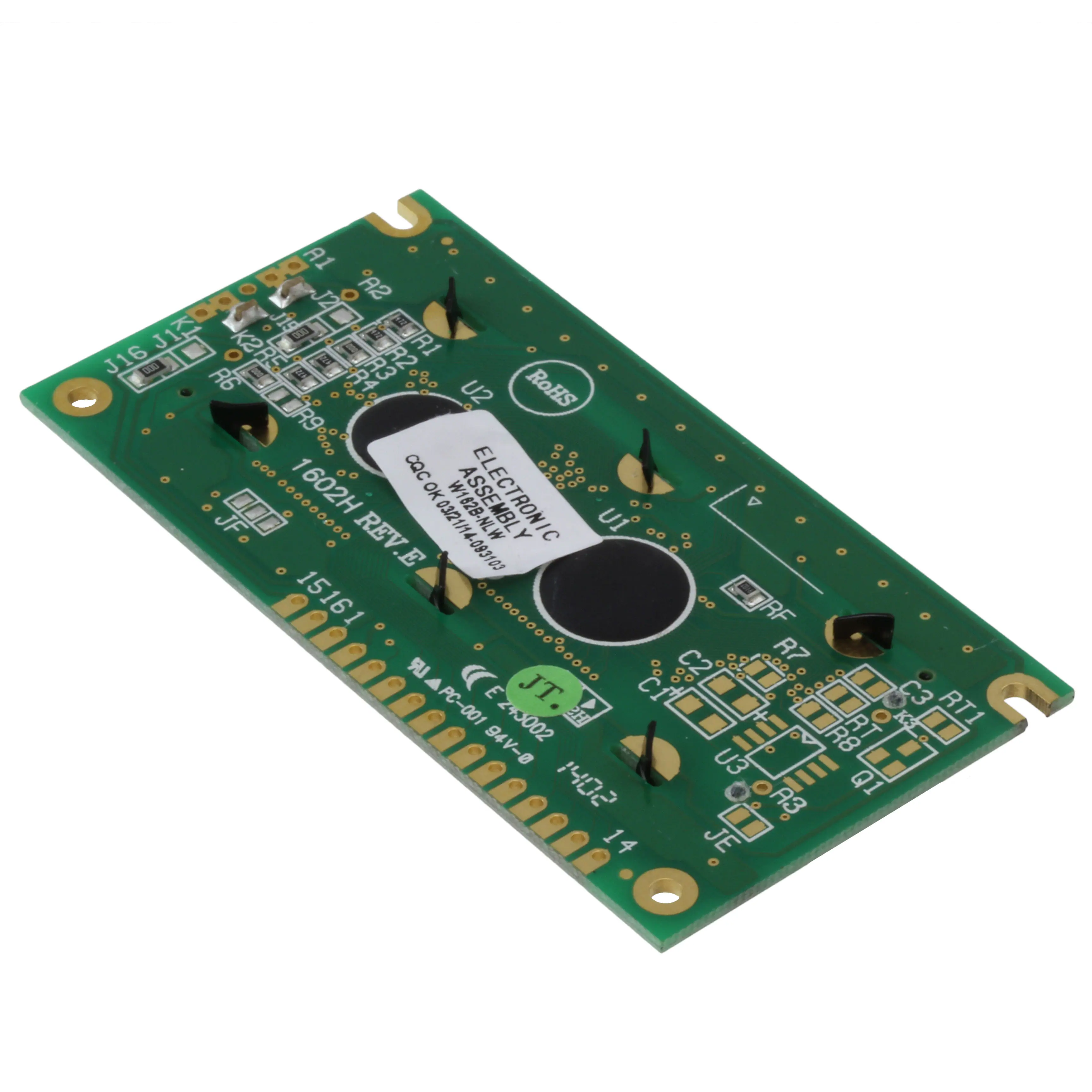

| Part Number | EA W162B-N3LW | EA W162-XBLG | EA W162-N3LED | EA W162B-NLW | EA W162-NLED |
| Manufacturer | Display Visions | Display Visions | Display Visions | Display Visions | Display Visions |
| Series | BlueLine | - | - | BlueLine | - |
| Packaging | Bag | Bag | Bulk | Bag | Bulk |
| Product Status | Active | Active | Active | Active | Active |
| Number of Characters | 32.0 | 32.0 | 32.0 | 32.0 | 32.0 |
| Display Format | 16 x 2 | 16 x 2 | 16 x 2 | 16 x 2 | 16 x 2 |
| Character Format | - | 5 x 8 Dots | 5 x 8 Dots | - | 5 x 8 Dots |
| Display Type | STN - Super-Twisted Nematic | OLED | STN - Super-Twisted Nematic | STN - Super-Twisted Nematic | LCD - Color |
| Display Mode | Transflective | Passive | - | Transflective | - |
| Character Size | - | 8.90mm H x 4.74mm W | - | - | - |
| Outline L x W x H | - | 122.00mm x 44.00mm x 4.70mm | 80.00mm x 36.00mm x 13.20mm | - | 84.00mm x 44.00mm x 14.00mm |
| Viewing Area | 64.50mm L x 16.00mm W | 99.00mm L x 24.00mm W | 66.00mm L x 16.00mm W | 64.50mm L x 16.00mm W | 66.00mm L x 17.00mm W |
| Backlight | LED - White | Without Backlight | LED - Yellow/Green | LED - White | LED - Yellow/Green |
| Voltage - Supply | 5V | 3.3V ~ 5V | 5V | 5V | 5V |
| Dot Size | - | 0.90mm W x 1.06mm H | 0.56mm W x 0.66mm H | - | 0.55mm W x 0.65mm H |
| Interface | Parallel, 8-Bit | Parallel, 8-Bit | RS-422/232 | Parallel, 8-Bit | RS-422/232 |
| Controller Type | - | - | ST7066 | - | HD44780 |
| Operating Temperature | -20°C ~ 70°C | -40°C ~ 80°C | -20°C ~ 70°C | -20°C ~ 70°C | 0°C ~ 50°C |
| Text Color | White | Yellow | Black | White | Black |
| Background Color | Blue | Black | Yellow/Green | Blue | Yellow/Green |
