MACOM Technology Solutions DS-409-4BNC
- Part No.:
- DS-409-4BNC
- Manufacturer:
- MACOM Technology Solutions
- Category:
- RF Power Dividers/Splitters
- Package:
- Module
- Description:
- POWER_DIVIDER,4-WAY,
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
DS-409-4BNC Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- MACOM Technology Solutions
- Package/Case:
- Module
- Series:
- -
- Packaging:
- Tray
- Product Status:
- Active
- Insertion Loss:
- 1.5dB
- Frequency:
- 10 MHz ~ 2 GHz
- Specifications:
- Isolation (Min) 25dB, 2.5 VSWR (Max), 2° Imbalance (Max)
- Size / Dimension:
- 3.252" L x 1.500" W x 0.791" H (82.60mm x 38.10mm x 20.10mm)
| Image |  |
 |
 |
 |
 |

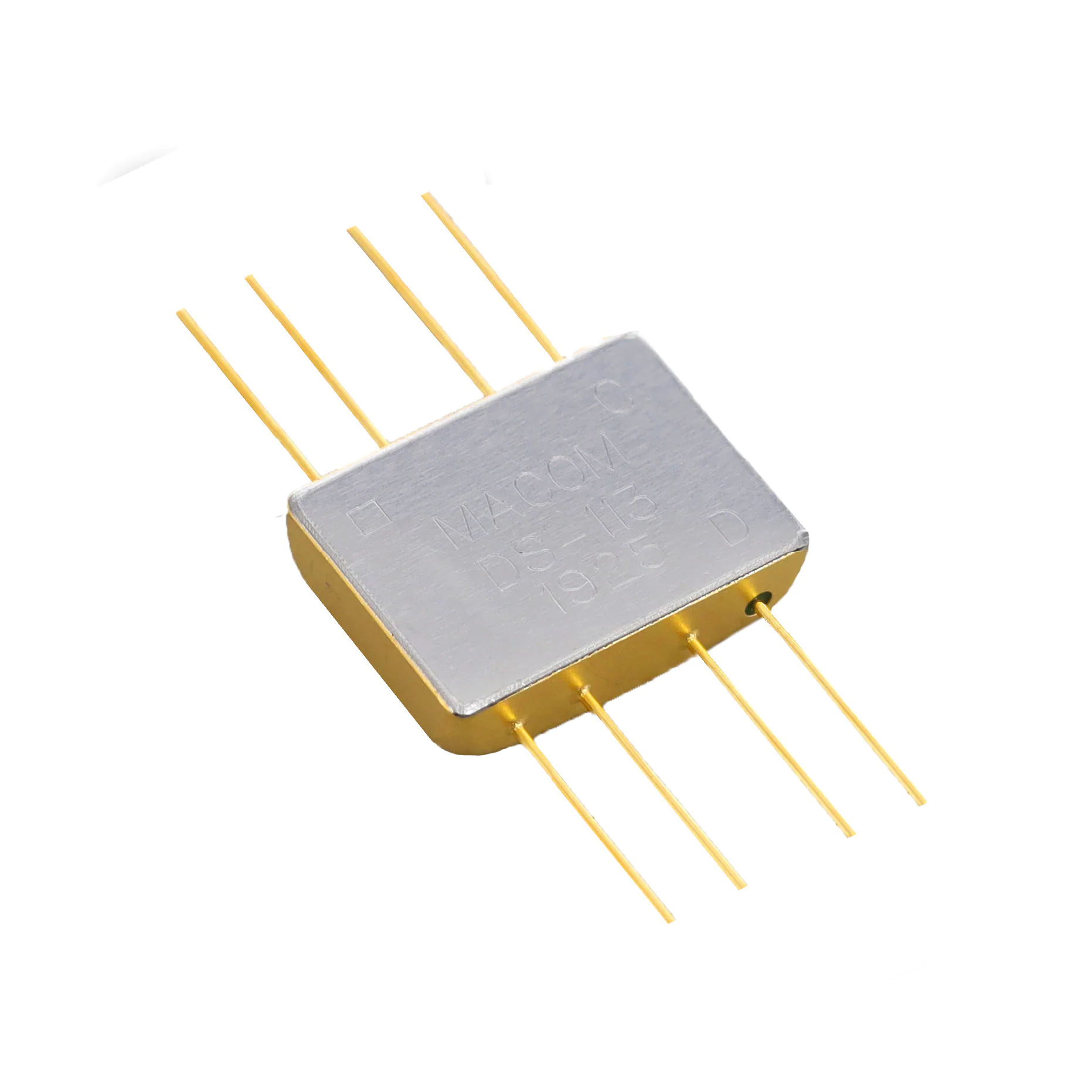

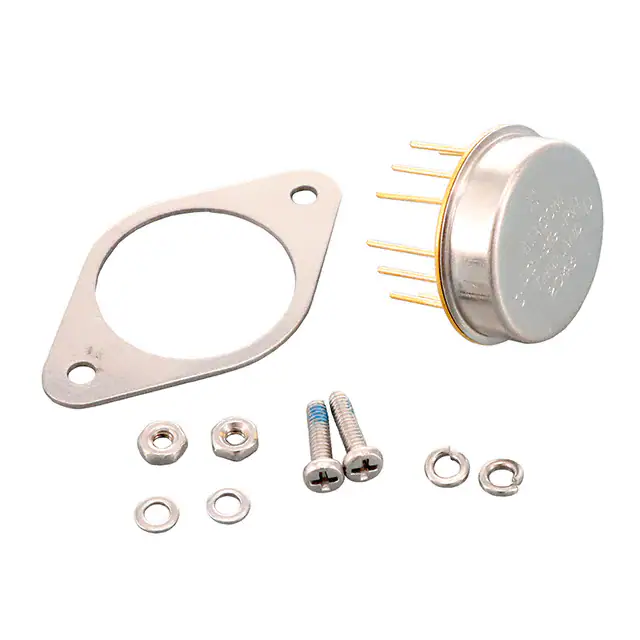

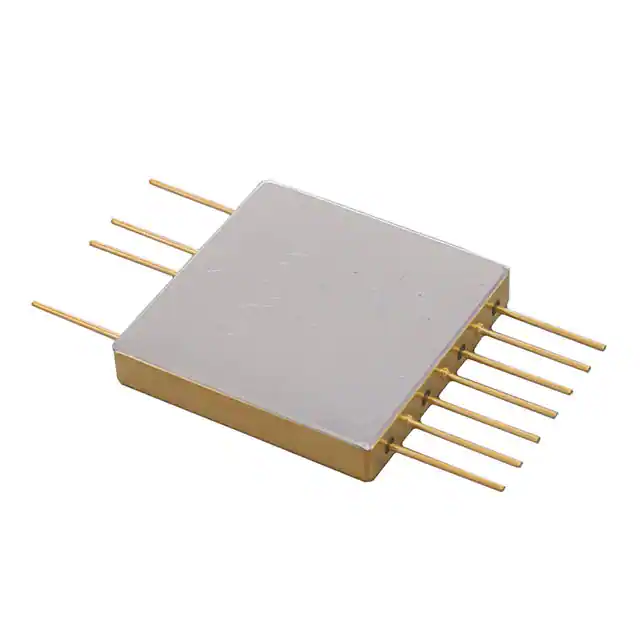

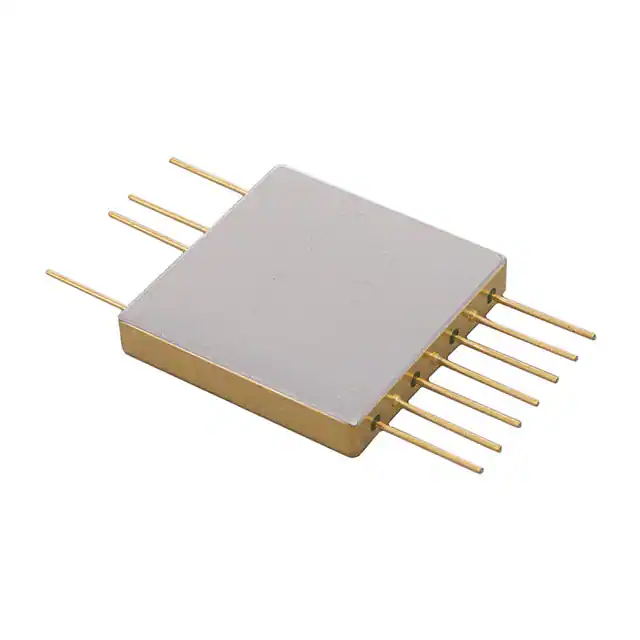

| Part Number | DSS-333-PIN | DS-327-PIN | DS-319-PIN | DS-112-PIN | DS-324-PIN |
| Manufacturer | MACOM Technology Solutions | MACOM Technology Solutions | MACOM Technology Solutions | MACOM Technology Solutions | MACOM Technology Solutions |
| Package/Case | SF-1 | FP-2 | FP-2 | FP-5 | FP-5 |
| Series | - | - | - | - | - |
| Packaging | Tray | Tray | Tray | Tray | Tray |
| Product Status | Active | Active | Active | Active | Active |
| Insertion Loss | 0.6dB | 1dB | 0.6dB | 0.85dB | 1dB |
| Frequency | 10 MHz ~ 500 MHz | 5 MHz ~ 1 GHz | 10 MHz ~ 500 MHz | 10 MHz ~ 500 MHz | 25 MHz ~ 1 GHz |
| Specifications | Isolation (Min) 25dB, 1.4 VSWR (Max), 2° Imbalance (Max) | Isolation (Min) 25dB, 1.5 VSWR (Max), 3° Imbalance (Max) | Isolation (Min) 25dB, 1.3 VSWR (Max), 1° Imbalance (Max) | Isolation (Min) 25dB, 1.5 VSWR (Max), 5° Imbalance (Max) | Isolation (Min) 20dB, 1.4 VSWR (Max), 6° Imbalance (Max) |
| Size / Dimension | 0.510" L x 0.386" W x 0.170" H (12.95mm x 9.80mm x 4.32mm) | 0.508" L x 0.386" W x 0.150" H (12.90mm x 9.80mm x 3.80mm) | 0.508" L x 0.386" W x 0.150" H (12.90mm x 9.80mm x 3.80mm) | 0.811" L x 0.811" W x 0.150" H (20.60mm x 20.60mm x 3.80mm) | 0.811" L x 0.811" W x 0.150" H (20.60mm x 20.60mm x 3.80mm) |
