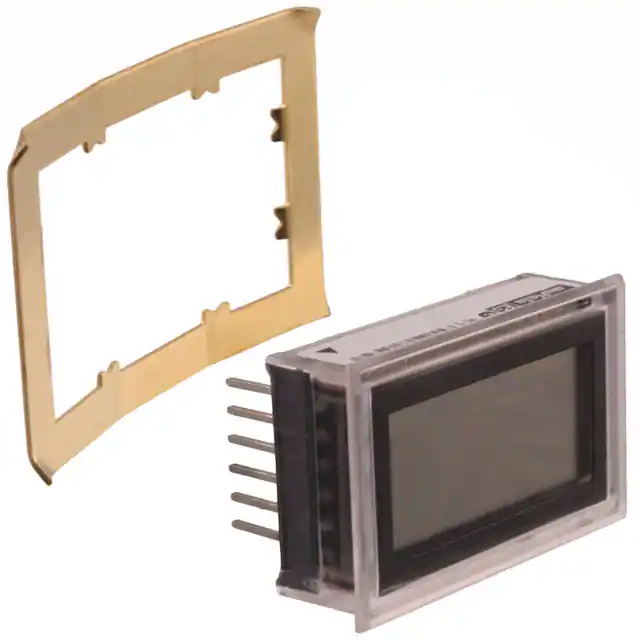

Murata Power Solutions Inc. DMS-20LCD-1-5-C
- Part No.:
- DMS-20LCD-1-5-C
- Manufacturer:
- Murata Power Solutions Inc.
- Category:
- Meters
- Package:
- Datasheet:
-
DMS-20LCD-1-5-C.pdf
- Description:
- VOLTMETER 2VDC LCD PANEL MOUNT
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
DMS-20LCD-1-5-C Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Murata Power Solutions Inc.
- Series:
- DMS-20LCD
- Packaging:
- Box
- Product Status:
- Active
- Type:
- Voltmeter
- Measuring Type:
- Voltage
- Measuring Range:
- ±2VDC
- Display Type:
- LCD - Black Characters
- Number of Characters Per Row:
- 3.5
- Display Characters - Height:
- 0.370" (9.40mm)
- Output Type:
- -
- Voltage - Supply:
- 5VDC
- Panel Cutout Dimensions:
- Rectangular - 33.93mm x 21.29mm
- Mounting Type:
- Panel Mount
- Termination Style:
- PC Pin
- Ingress Protection:
- -
- Features:
- -
| Image |  |
 |
 |
|
|

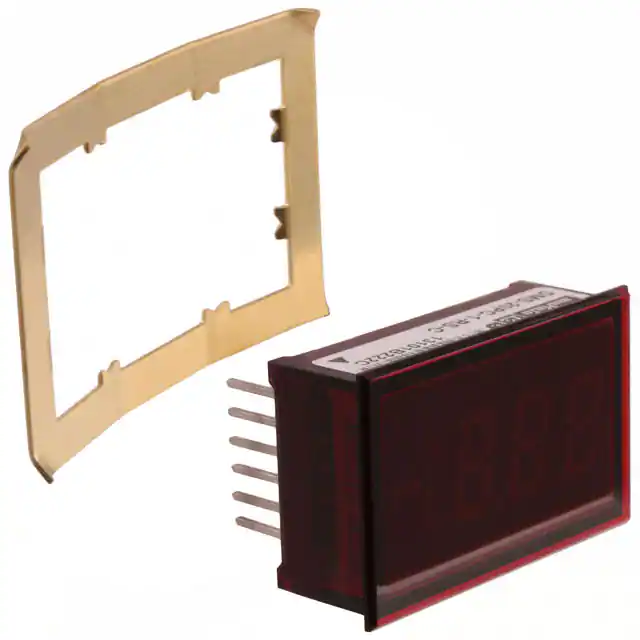

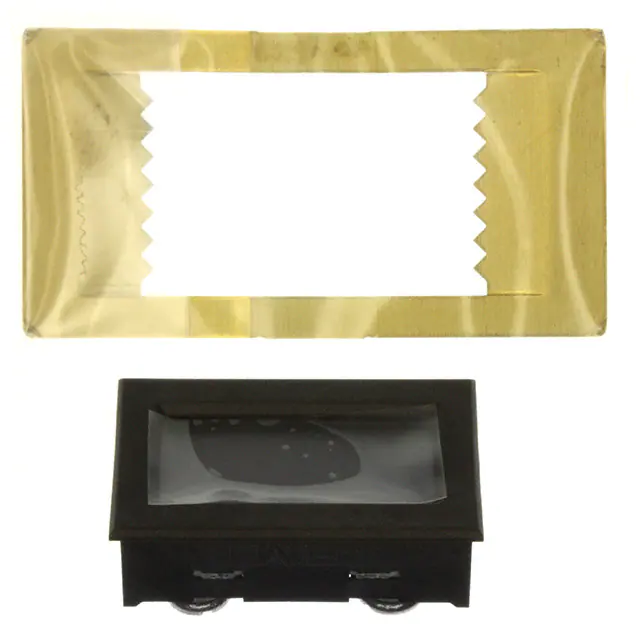

| Part Number | DMS-20LCD-0-DCM-C | DMS-20LCD-1-5-C | DMS-20PC-0-RL-C | DMS-20PC-1-RL-C | DMS-20PC-3-RL-C |
| Manufacturer | Murata Power Solutions Inc. | Murata Power Solutions Inc. | Murata Power Solutions Inc. | Murata Power Solutions Inc. | Murata Power Solutions Inc. |
| Series | DMS-20LCD-0/1 | DMS-20LCD | DMS-20PC | DMS-20PC | DMS-20PC |
| Packaging | Box | Box | Box | Box | Box |
| Product Status | Active | Active | Active | Active | Active |
| Type | Voltmeter | Voltmeter | Voltmeter | Voltmeter | Voltmeter |
| Measuring Type | Voltage | Voltage | Voltage | Voltage | Voltage |
| Measuring Range | 6.5 ~ 18VDC | ±2VDC | ±200mVDC | ±2VDC | ±200VDC |
| Display Type | LCD - Black Characters | LCD - Black Characters | LED - Red Characters | LED - Red Characters | LED - Red Characters |
| Number of Characters Per Row | 3.5 | 3.5 | 3.5 | 3.5 | 3.5 |
| Display Characters - Height | 0.370" (9.40mm) | 0.370" (9.40mm) | 0.370" (9.40mm) | 0.370" (9.40mm) | 0.370" (9.40mm) |
| Output Type | - | - | Reference | Reference | Reference |
| Voltage - Supply | 12VDC | 5VDC | 5VDC | 5VDC | 5VDC |
| Panel Cutout Dimensions | Rectangular - 33.93mm x 21.29mm | Rectangular - 33.93mm x 21.29mm | Rectangular - 33.93mm x 21.29mm | Rectangular - 33.93mm x 21.29mm | Rectangular - 33.93mm x 21.29mm |
| Mounting Type | Panel Mount | Panel Mount | Panel Mount | Panel Mount | Panel Mount |
| Termination Style | Screw Terminal | PC Pin | PC Pin | PC Pin | PC Pin |
| Ingress Protection | - | - | - | - | - |
| Features | Bezel Sold Separately | - | - | - | - |
