Kyocera International, Inc. DMC-40202NY-LY-AZE-BDN

Name: DMC-40202NY-LY-AZE-BDN
Brand: Kyocera International, Inc.
SKU: DMC-40202NY-LY-AZE-BDN
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Compare

Part No.:: DMC-40202NY-LY-AZE-BDN

Manufacturer:: Kyocera International, Inc.

Category:: LCD, OLED Character and Numeric

Package:

Datasheet:: DMC-40202NY-LY-AZE-BDN.pdf

Description:: LCD MOD 80DIG 40X2 TRANS YLW/GRN

Quantity:: Add To Cart Add To RFQ list

Unit Price:$0

Ext Price:$0

Payment:

Shipping:

DMC-40202NY-LY-AZE-BDN Information

Specifications
Comparison
Tags

Product attributes: Attribute value

Manufacturer:: Kyocera International, Inc.

Series:: -

Packaging:: Bulk

Product Status:: Obsolete

Number of Characters:: 80.0

Display Format:: 40 x 2

Character Format:: 5 x 8 Dots

Display Type:: STN - Super-Twisted Nematic

Display Mode:: Transmissive

Character Size:: -

Outline L x W x H:: 182.00mm x 34.50mm x 15.10mm

Viewing Area:: 152.50mm L x 16.50mm W

Backlight:: LED - Yellow/Green

Voltage - Supply:: 4.5V ~ 5.5V

Dot Size:: -

Interface:: Parallel

Controller Type:: -

Operating Temperature:: 0°C ~ 50°C

Text Color:: Yellow

Background Color:: Green

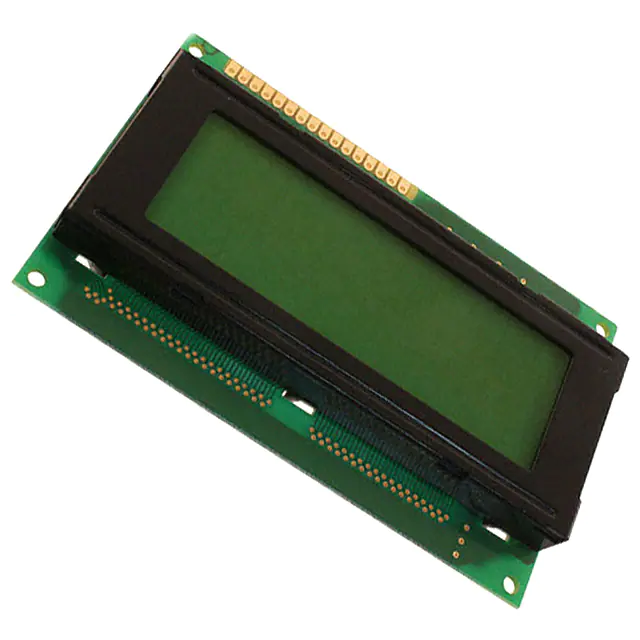

Part Number	DMC-20481NY-LY-BJE-BMN	DMC-20481NY-LY-ABE	DMC-20261NY-LY-AXE	DMC-20481NY-LY-AGE	DMC-16230NY-LY-AVE
Manufacturer	Kyocera International, Inc.	Kyocera International, Inc.	Kyocera International, Inc.	Kyocera International, Inc.	Kyocera International, Inc.
Series	-	DMC-20481	DMC-20261	DMC-20481	DMC-16230
Packaging	Bulk	-	-	-	-
Product Status	Obsolete	Obsolete	Obsolete	Obsolete	Obsolete
Number of Characters	80.0	80.0	40.0	80.0	32.0
Display Format	20 x 4	20 x 4	20 x 2	20 x 4	16 x 2
Character Format	5 x 8 Dots	5 x 8 Dots	5 x 8 Dots	5 x 8 Dots	5 x 7 Dots w/Cursor
Display Type	STN - Super-Twisted Nematic	STN - Super-Twisted Nematic	STN - Super-Twisted Nematic	STN - Super-Twisted Nematic	STN - Super-Twisted Nematic
Display Mode	Transmissive	Transmissive	Transmissive	Transmissive	Transmissive
Character Size	-	4.75mm H x 2.95mm W	5.55mm H x 3.20mm W	4.75mm H x 2.95mm W	9.66mm H x 4.84mm W
Outline L x W x H	98.50mm x 61.00mm x 15.60mm	98.50mm x 61.00mm x 15.60mm	116.00mm x 37.00mm x 15.70mm	98.50mm x 61.00mm x 15.60mm	122.00mm x 44.00mm x 14.60mm
Viewing Area	76.00mm L x 25.20mm W	76.00mm L x 25.20mm W	83.00mm L x 18.60mm W	76.00mm L x 25.20mm W	99.00mm L x 24.00mm W
Backlight	LED - Yellow/Green	LED - Yellow/Green	LED - Yellow/Green	LED - Yellow/Green	LED - Yellow/Green
Voltage - Supply	4.5V ~ 5.5V	4.5V ~ 5.5V	4.5V ~ 5.5V	4.5V ~ 5.5V	4.5V ~ 5.5V
Dot Size	-	0.55mm W x 0.55mm H	0.60mm W x 0.65mm H	0.55mm W x 0.55mm H	0.92mm W x 1.10mm H
Interface	Parallel	Parallel	Parallel	Parallel	Parallel
Controller Type	-	-	-	-	-
Operating Temperature	0°C ~ 50°C	0°C ~ 50°C	0°C ~ 50°C	0°C ~ 50°C	0°C ~ 50°C
Text Color	Yellow	-	-	-	-
Background Color	Green	-	-	-	-
