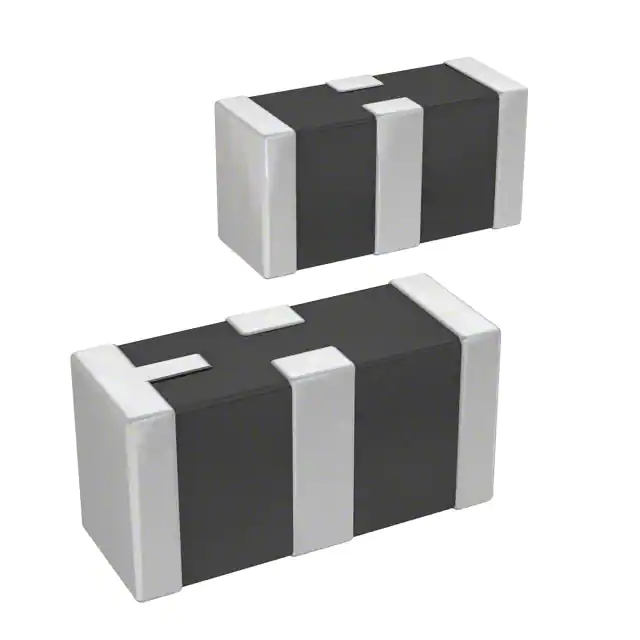

TDK Corporation DEA162450BT-1260B2
- Part No.:
- DEA162450BT-1260B2
- Manufacturer:
- TDK Corporation
- Category:
- RF Filters
- Package:
- 0603 (1608 Metric), 4 PC Pad
- Datasheet:
-
DEA162450BT-1260B2.pdf
- Description:
- RF FILTER BAND PASS 2.45GHZ 0603
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
DEA162450BT-1260B2 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- TDK Corporation
- Series:
- DEA
- Package/Case:
- 0603 (1608 Metric), 4 PC Pad
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Active
- Frequency:
- 2.45GHz Center
- Bandwidth:
- 100MHz
- Filter Type:
- Band Pass
- Ripple:
- -
- Insertion Loss:
- 1.7dB
- Mounting Type:
- Surface Mount
- Size / Dimension:
- 0.063" L x 0.032" W (1.60mm x 0.80mm)
- Height (Max):
- 0.028" (0.70mm)
| Image | , 4 PC Pad.jpg) |
 |
 |
 |
 |

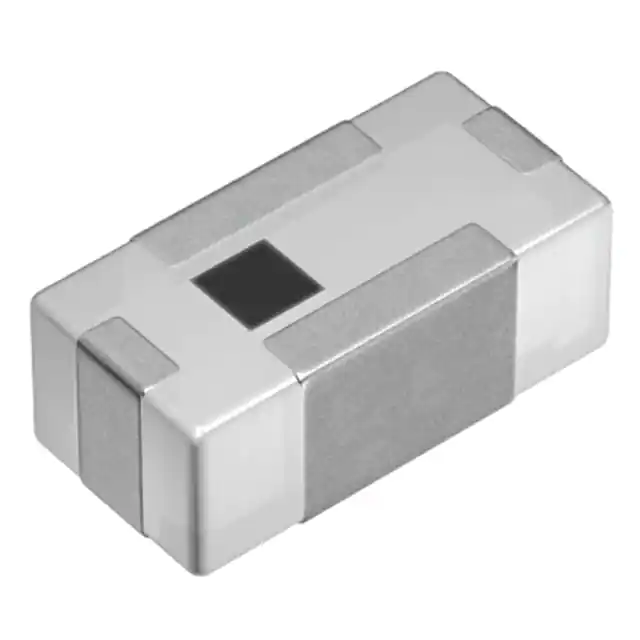

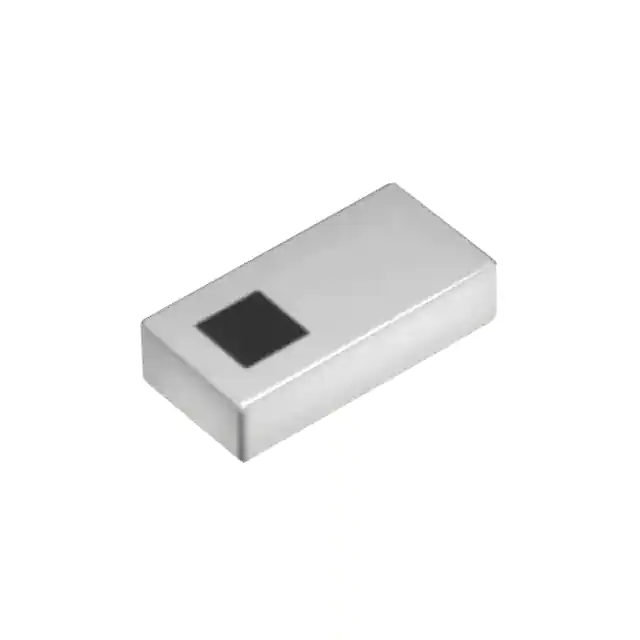

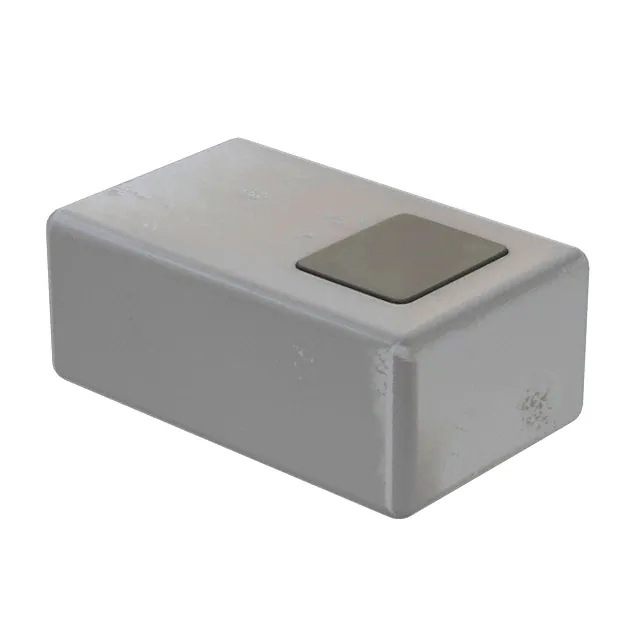

| Part Number | DEA162450BT-1260B2 | DEA162450BT-1298A1 | DEA162450BT-1295A1 | DEA162450BT-1288B1 | DEA162450BT-1288A2 |
| Manufacturer | TDK Corporation | TDK Corporation | TDK Corporation | TDK Corporation | TDK Corporation |
| Series | DEA | DEA | DEA | DEA | DEA |
| Package/Case | 0603 (1608 Metric), 4 PC Pad | 0603 (1608 Metric) | 0603 (1608 Metric), 3 PC Pad | 0603 (1608 Metric), 3 PC Pad | 0603 (1608 Metric), 3 PC Pad |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
| Product Status | Active | Active | Active | Active | Active |
| Frequency | 2.45GHz Center | 2.45GHz Center | 2.45GHz Center | 2.45GHz Center | 2.45GHz Center |
| Bandwidth | 100MHz | 100MHz | 100MHz | - | 100MHz |
| Filter Type | Band Pass | Band Pass | Band Pass | Band Pass | Band Pass |
| Ripple | - | - | - | - | - |
| Insertion Loss | 1.7dB | 1.3dB | 1.8dB | - | 1.7dB |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Size / Dimension | 0.063" L x 0.032" W (1.60mm x 0.80mm) | 0.063" L x 0.027" W (1.60mm x 0.70mm) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.063" L x 0.032" W (1.60mm x 0.80mm) | 0.063" L x 0.031" W (1.60mm x 0.80mm) |
| Height (Max) | 0.028" (0.70mm) | 0.035" (0.90mm) | 0.028" (0.70mm) | 0.028" (0.70mm) | 0.028" (0.70mm) |
