Analog Devices Inc. DC854D-A
- Part No.:
- DC854D-A
- Manufacturer:
- Analog Devices Inc.
- Package:
- Datasheet:
-
DC854D-A.pdf
- Description:
- EVAL BOARD FOR LTC2208
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
DC854D-A Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Analog Devices Inc.
- Series:
- -
- Packaging:
- Box
- Product Status:
- Active
- Number of A/D Converters:
- 1
- Number of Bits:
- 16
- Sampling Rate (Per Second):
- 130M
- Data Interface:
- Parallel
- Input Range:
- 2.25Vpp
- Power (Typ) @ Conditions:
- 1.498W @ 130MSPS
- Utilized IC / Part:
- LTC2208
- Contents:
- Board(s)
| Image |  |
 |
 |
 |
 |

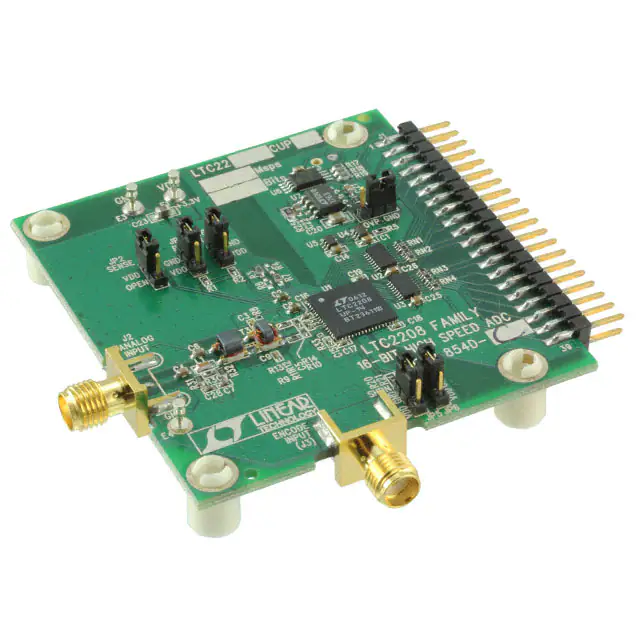

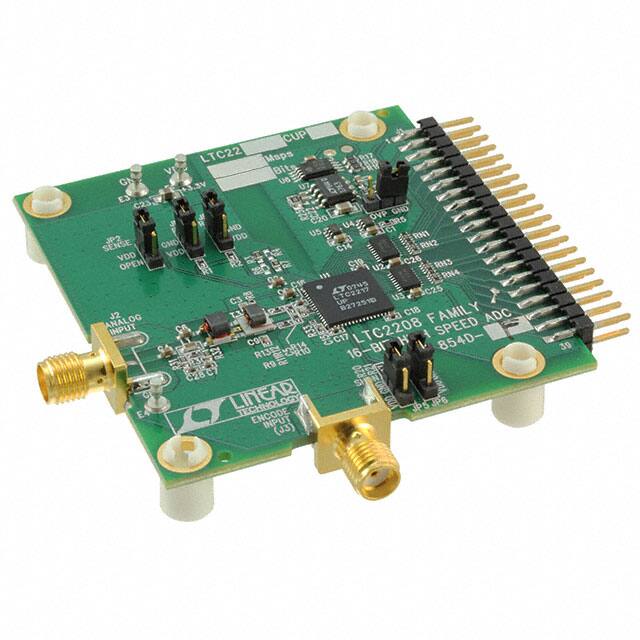

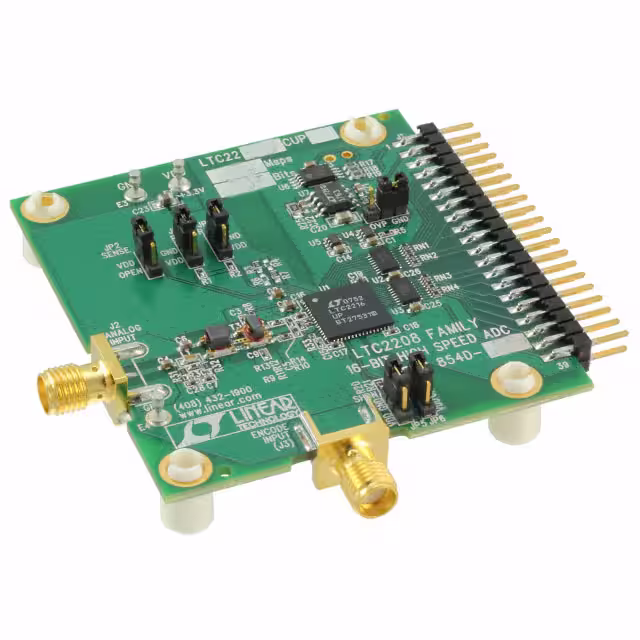

| Part Number | DC854D-A | DC854D-E | DC854D-D | DC854D-C | DC854D-F |
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Series | - | - | - | - | - |
| Packaging | Box | Box | Box | Box | Box |
| Product Status | Active | Active | Active | Active | Active |
| Number of A/D Converters | 1 | 1 | 1 | 1 | 1 |
| Number of Bits | 16 | 16 | 14 | 14 | 16 |
| Sampling Rate (Per Second) | 130M | 105M | 130M | 130M | 105M |
| Data Interface | Parallel | Parallel | Parallel | Parallel | Parallel |
| Input Range | 2.25Vpp | 2.25Vpp | 2.25Vpp | 2.25Vpp | 2.25Vpp |
| Power (Typ) @ Conditions | 1.498W @ 130MSPS | 1.45W @ 105MSPS | 1.498W @ 130MSPS | 1.498W @ 130MSPS | 1.45W @ 105MSPS |
| Utilized IC / Part | LTC2208 | LTC2217 | LTC2208-14 | LTC2208-14 | LTC2217 |
| Contents | Board(s) | Board(s) | Board(s) | Board(s) | Board(s) |
