Analog Devices Inc. DC782A-X
- Part No.:
- DC782A-X
- Manufacturer:
- Analog Devices Inc.
- Package:
- Datasheet:
-
DC782A-X.pdf
- Description:
- BOARD EVAL LTC2250IUH
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
DC782A-X Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Analog Devices Inc.
- Series:
- -
- Packaging:
- Box
- Product Status:
- Active
- Number of A/D Converters:
- 1
- Number of Bits:
- 10
- Sampling Rate (Per Second):
- 105M
- Data Interface:
- Parallel
- Input Range:
- 1 ~ 2Vpp
- Power (Typ) @ Conditions:
- 320mW @ 105MSPS
- Utilized IC / Part:
- LTC2250
- Contents:
- Board(s)
| Image |  |
 |
 |
 |
 |

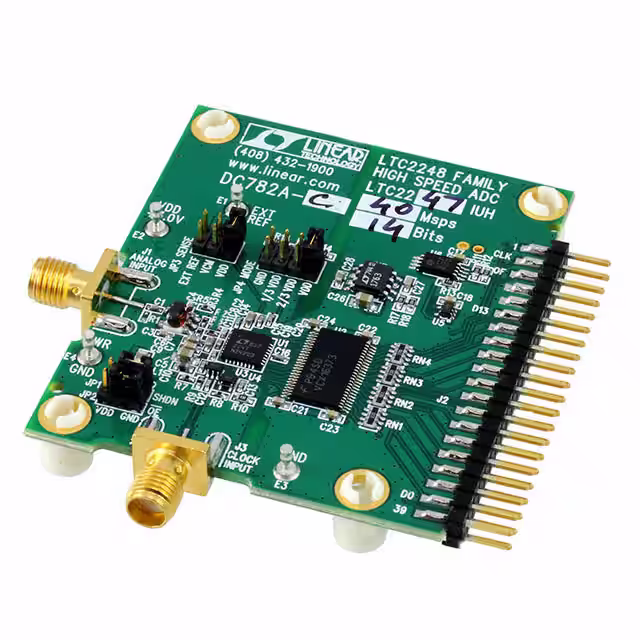

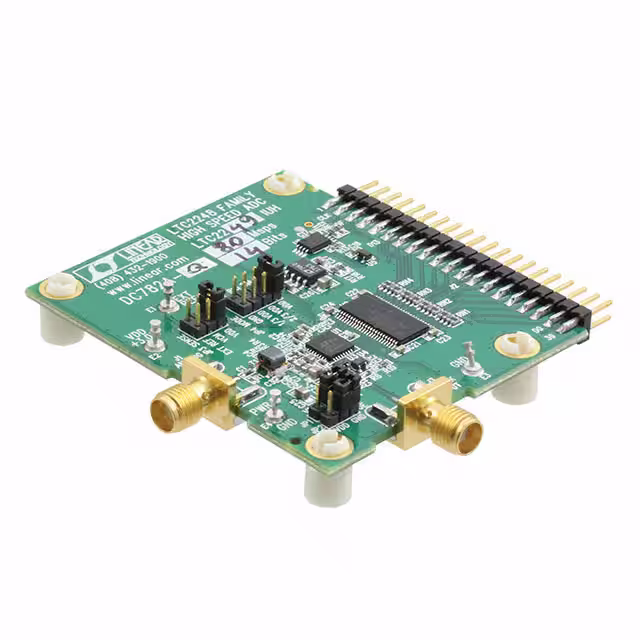

| Part Number | DC782A-U | DC782A-X | DC782A-C | DC782A-G | DC782A-Q |
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Series | - | - | - | - | - |
| Packaging | Box | Box | Box | Box | Box |
| Product Status | Active | Active | Active | Active | Active |
| Number of A/D Converters | 1 | 1 | 1 | 1 | 1 |
| Number of Bits | 12 | 10 | 14 | 12 | 14 |
| Sampling Rate (Per Second) | 125M | 105M | 40M | 65M | 80M |
| Data Interface | Parallel | Parallel | Parallel | Parallel | Parallel |
| Input Range | 1 ~ 2Vpp | 1 ~ 2Vpp | 1 ~ 2Vpp | 1 ~ 2Vpp | 1 ~ 2Vpp |
| Power (Typ) @ Conditions | 395mW @ 125MSPS | 320mW @ 105MSPS | 120mW @ 40MSPS | 205mW @ 65MSPS | 222mW @ 80MSPS |
| Utilized IC / Part | LTC2253 | LTC2250 | LTC2247 | LTC2228 | LTC2249 |
| Contents | Board(s) | Board(s) | Board(s) | Board(s) | Board(s) |
