Analog Devices Inc. DC2520A-B
- Part No.:
- DC2520A-B
- Manufacturer:
- Analog Devices Inc.
- Package:
- Datasheet:
-
DC2520A-B.pdf
- Description:
- DEMO BOARD FOR LTC2344-16
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
DC2520A-B Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Analog Devices Inc.
- Series:
- SoftSpan™
- Packaging:
- Box
- Product Status:
- Active
- Number of A/D Converters:
- 1
- Number of Bits:
- 16
- Sampling Rate (Per Second):
- 400k
- Data Interface:
- CMOS, LVDS, Serial
- Input Range:
- ±4.096V
- Power (Typ) @ Conditions:
- 106mW @ 400kSPS
- Utilized IC / Part:
- LTC2344-16
- Contents:
- Board(s)
| Image |  |
 |

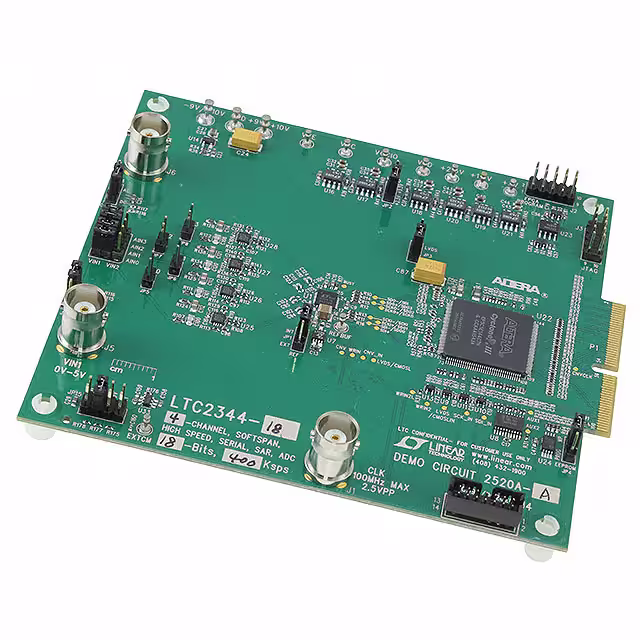

| Part Number | DC2520A-B | DC2520A-A |
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. |
| Series | SoftSpan™ | SoftSpan™ |
| Packaging | Box | Box |
| Product Status | Active | Active |
| Number of A/D Converters | 1 | 1 |
| Number of Bits | 16 | 18 |
| Sampling Rate (Per Second) | 400k | 400k |
| Data Interface | CMOS, LVDS, Serial | CMOS, LVDS, Serial |
| Input Range | ±4.096V | ±4.096V |
| Power (Typ) @ Conditions | 106mW @ 400kSPS | 106mW @ 400kSPS |
| Utilized IC / Part | LTC2344-16 | LTC2344-18 |
| Contents | Board(s) | Board(s) |
