Analog Devices Inc. DC2289A-A
- Part No.:
- DC2289A-A
- Manufacturer:
- Analog Devices Inc.
- Package:
- Datasheet:
-
DC2289A-A.pdf
- Description:
- EVAL BOARD FOR LTC2380-24
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
DC2289A-A Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Analog Devices Inc.
- Series:
- -
- Packaging:
- Box
- Product Status:
- Active
- Number of A/D Converters:
- 1
- Number of Bits:
- 24
- Sampling Rate (Per Second):
- 2M
- Data Interface:
- Serial, SPI
- Input Range:
- ±VREF
- Power (Typ) @ Conditions:
- 28mW @ 2MSPS
- Utilized IC / Part:
- LTC2380-24
- Contents:
- Board(s), Cable(s)
| Image |  |
 |

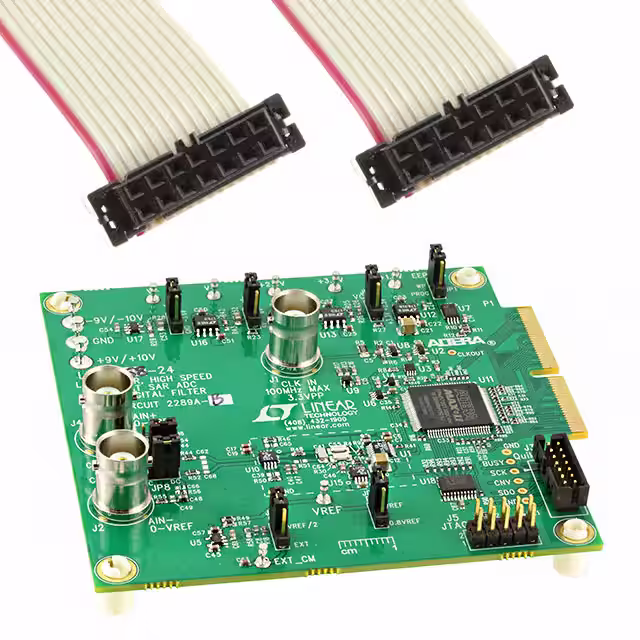

| Part Number | DC2289A-A | DC2289A-B |
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. |
| Series | - | - |
| Packaging | Box | Box |
| Product Status | Active | Active |
| Number of A/D Converters | 1 | 1 |
| Number of Bits | 24 | 24 |
| Sampling Rate (Per Second) | 2M | 1M |
| Data Interface | Serial, SPI | Serial, SPI |
| Input Range | ±VREF | 0 ~ VREF |
| Power (Typ) @ Conditions | 28mW @ 2MSPS | 21mW @ 1MSPS |
| Utilized IC / Part | LTC2380-24 | LTC2368-24 |
| Contents | Board(s), Cable(s) | Board(s), Cable(s) |
