Analog Devices Inc. DC1996A-C
- Part No.:
- DC1996A-C
- Manufacturer:
- Analog Devices Inc.
- Package:
- Datasheet:
-
DC1996A-C.pdf
- Description:
- BOARD EVAL FOR LTC2323-14
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
DC1996A-C Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Analog Devices Inc.
- Series:
- -
- Packaging:
- Box
- Product Status:
- Active
- Number of A/D Converters:
- 2
- Number of Bits:
- 14
- Sampling Rate (Per Second):
- 5M
- Data Interface:
- CMOS, LVDS, Serial
- Input Range:
- 0 ~ Vdd
- Power (Typ) @ Conditions:
- 105mW @ 5MSPS
- Utilized IC / Part:
- LTC2323-14
- Contents:
- Board(s)
| Image |  |
 |
 |
 |
 |

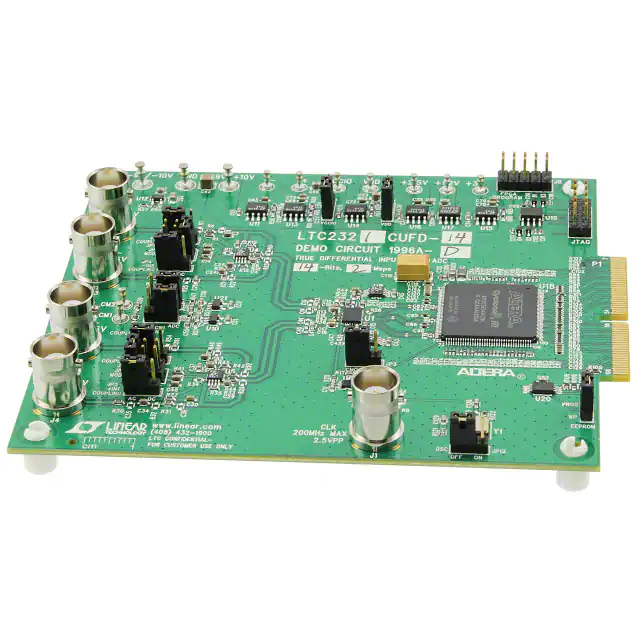

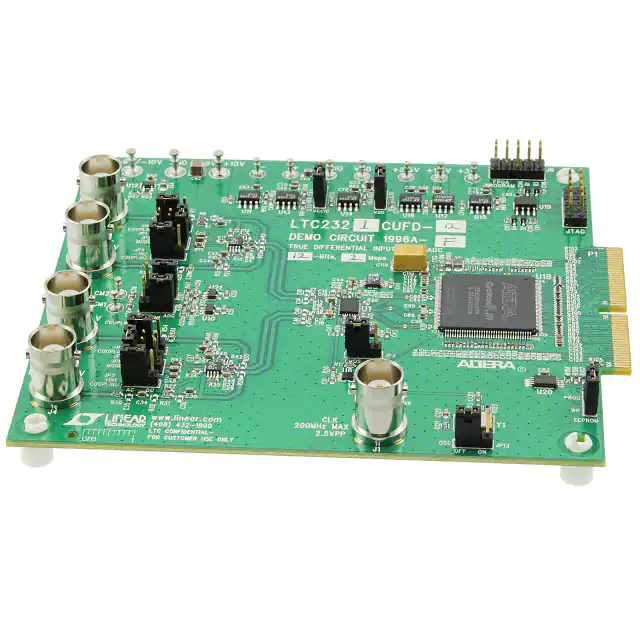

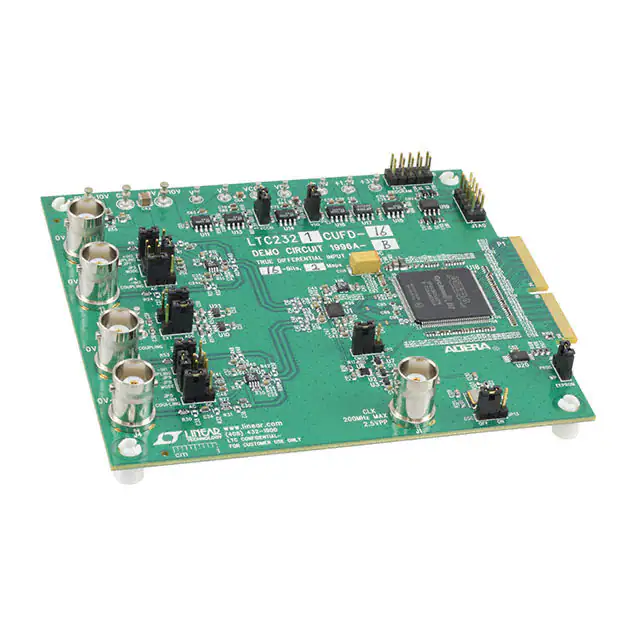

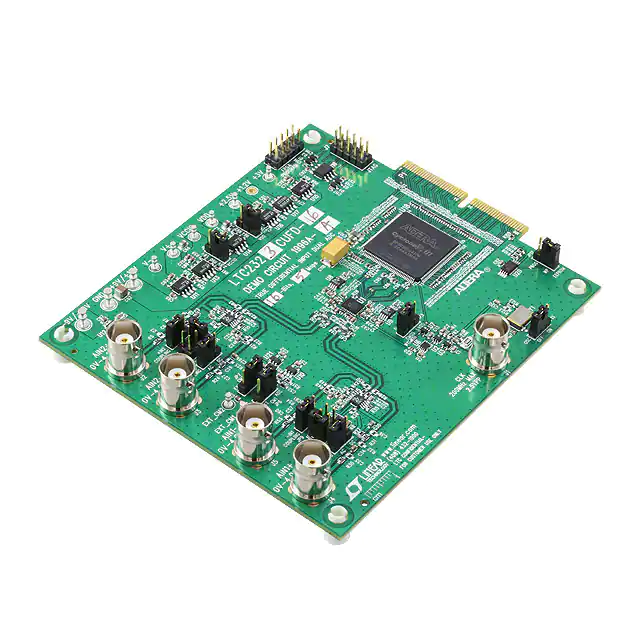

| Part Number | DC1996A-C | DC1996A-A | DC1996A-D | DC1996A-B | DC1996A-F |
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Series | - | - | - | - | - |
| Packaging | Box | Box | Box | Box | Box |
| Product Status | Active | Active | Active | Active | Active |
| Number of A/D Converters | 2 | 2 | 2 | 2 | 2 |
| Number of Bits | 14 | 16 | 14 | 16 | 12 |
| Sampling Rate (Per Second) | 5M | 5M | 2M | 2M | 2M |
| Data Interface | CMOS, LVDS, Serial | CMOS, LVDS, Serial | CMOS, LVDS, Serial | CMOS, LVDS, Serial | CMOS, LVDS, Serial |
| Input Range | 0 ~ Vdd | 0 ~ Vdd | 0 ~ Vdd | 0 ~ Vdd | 0 ~ Vdd |
| Power (Typ) @ Conditions | 105mW @ 5MSPS | 95mW @ 5MSPS | 77mW @ 2MSPS | 77mW @ 2MSPS | 77mW @ 2MSPS |
| Utilized IC / Part | LTC2323-14 | LTC2323-16 | LTC2321-14 | LTC2321-16 | LTC2321-12 |
| Contents | Board(s) | Board(s) | Board(s) | Board(s) | Board(s) |
