Analog Devices Inc. DC1370A-C
- Part No.:
- DC1370A-C
- Manufacturer:
- Analog Devices Inc.
- Package:
- Datasheet:
-
DC1370A-C.pdf
- Description:
- BOARD EVAL LTC2259-14
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
DC1370A-C Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Analog Devices Inc.
- Series:
- -
- Packaging:
- Box
- Product Status:
- Active
- Number of A/D Converters:
- 1
- Number of Bits:
- 14
- Sampling Rate (Per Second):
- 80M
- Data Interface:
- Parallel, Serial, SPI
- Input Range:
- 1 ~ 2Vpp
- Power (Typ) @ Conditions:
- 170mW @ 80MSPS
- Utilized IC / Part:
- LTC2259-14
- Contents:
- Board(s)
| Image |  |
 |
 |
 |
 |

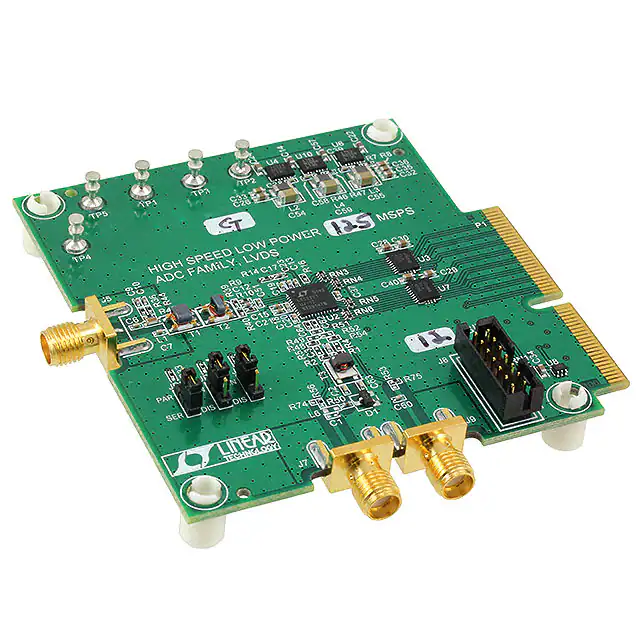

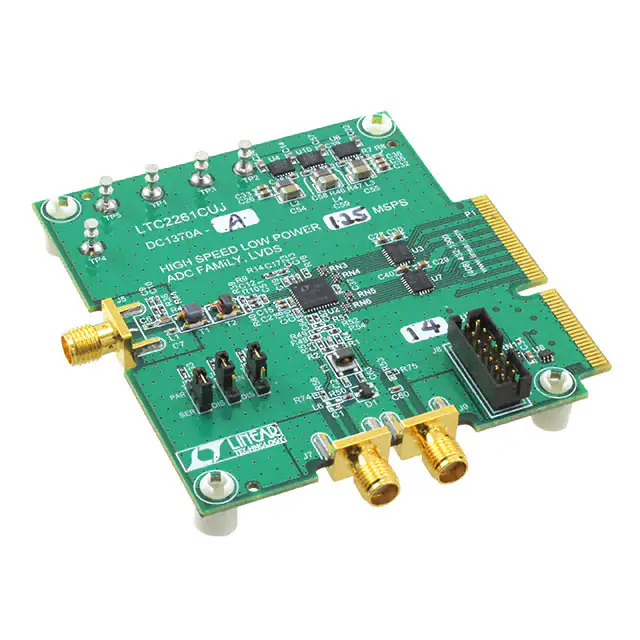

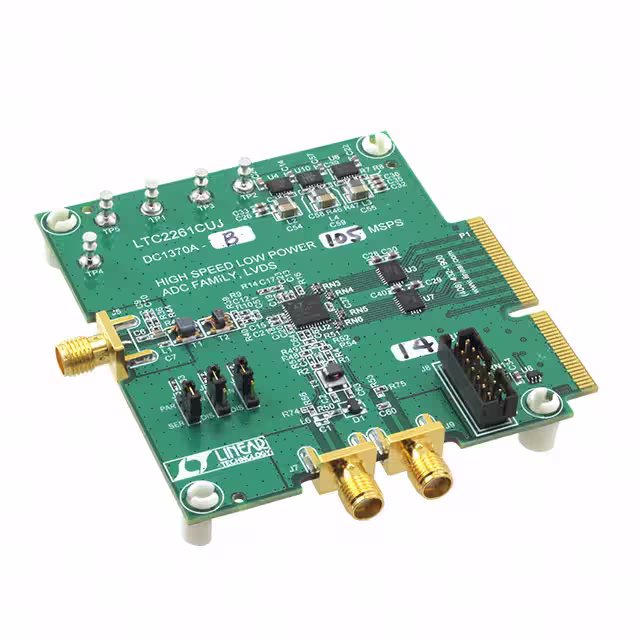

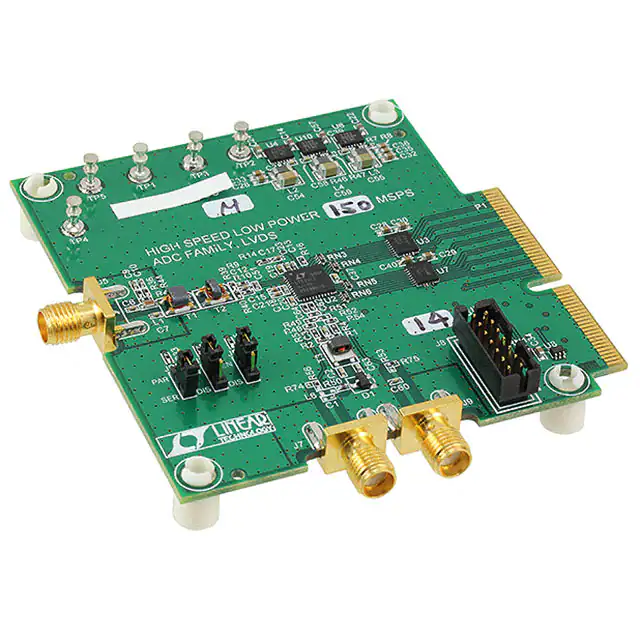

| Part Number | DC1370A-C | DC1370A-A | DC1370A-B | DC1370A-M | DC1370A-G |
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Series | - | - | - | - | - |
| Packaging | Box | Box | Box | Box | Box |
| Product Status | Active | Active | Active | Active | Active |
| Number of A/D Converters | 1 | 1 | 1 | 1 | 1 |
| Number of Bits | 14 | 14 | 14 | 14 | 12 |
| Sampling Rate (Per Second) | 80M | 125M | 105M | 150M | 125M |
| Data Interface | Parallel, Serial, SPI | Parallel, Serial, SPI | Parallel, Serial, SPI | Parallel, Serial, SPI | Parallel, Serial, SPI |
| Input Range | 1 ~ 2Vpp | 1 ~ 2Vpp | 1 ~ 2Vpp | 1 ~ 2Vpp | 1 ~ 2Vpp |
| Power (Typ) @ Conditions | 170mW @ 80MSPS | 209mW @ 125MSPS | 187mW @ 105MSPS | 231mW @ 150MSPS | 199mW @ 125MSPS |
| Utilized IC / Part | LTC2259-14 | LTC2261-14 | LTC2260-14 | LTC2262-14 | LTC2261-12 |
| Contents | Board(s) | Board(s) | Board(s) | Board(s) | Board(s) |
