Analog Devices Inc. DC1058A-A
- Part No.:
- DC1058A-A
- Manufacturer:
- Analog Devices Inc.
- Package:
- Datasheet:
-
DC1058A-A.pdf
- Description:
- EVAL BOARD FOR LTC2203
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
DC1058A-A Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Analog Devices Inc.
- Series:
- -
- Packaging:
- Box
- Product Status:
- Active
- Number of A/D Converters:
- 1
- Number of Bits:
- 16
- Sampling Rate (Per Second):
- 25M
- Data Interface:
- Parallel
- Input Range:
- 2.5Vpp
- Power (Typ) @ Conditions:
- 220mW @ 25MSPS
- Utilized IC / Part:
- LT1994, LTC2203
- Contents:
- Board(s)
| Image |  |
 |
 |
 |
 |

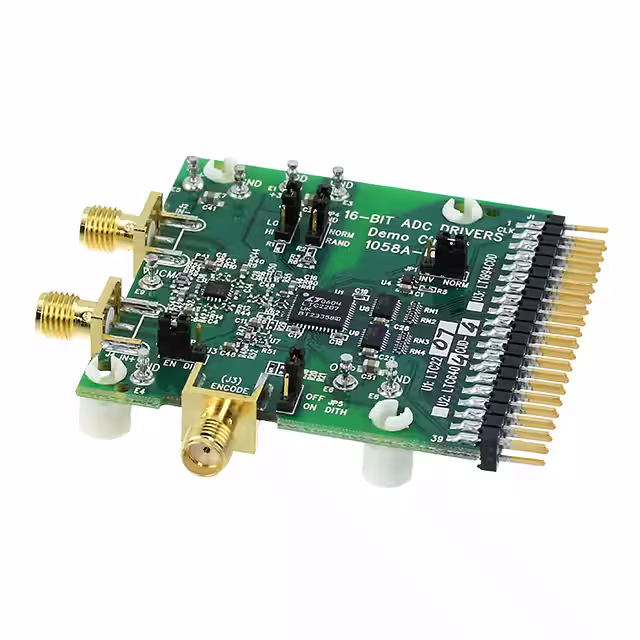

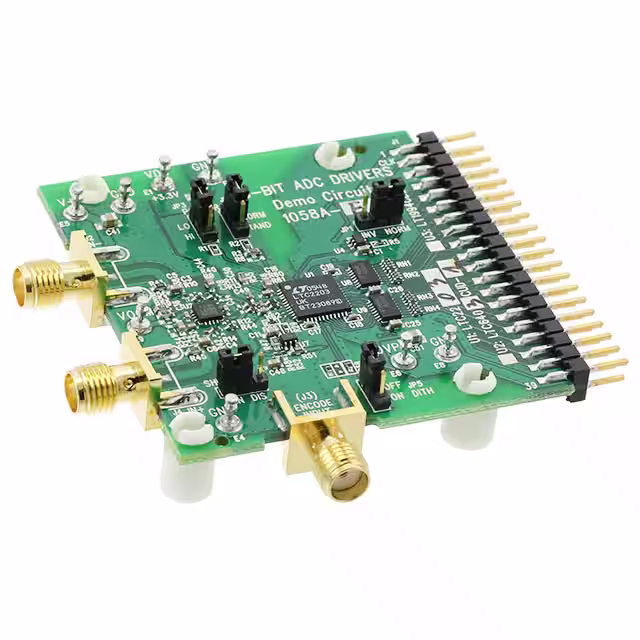

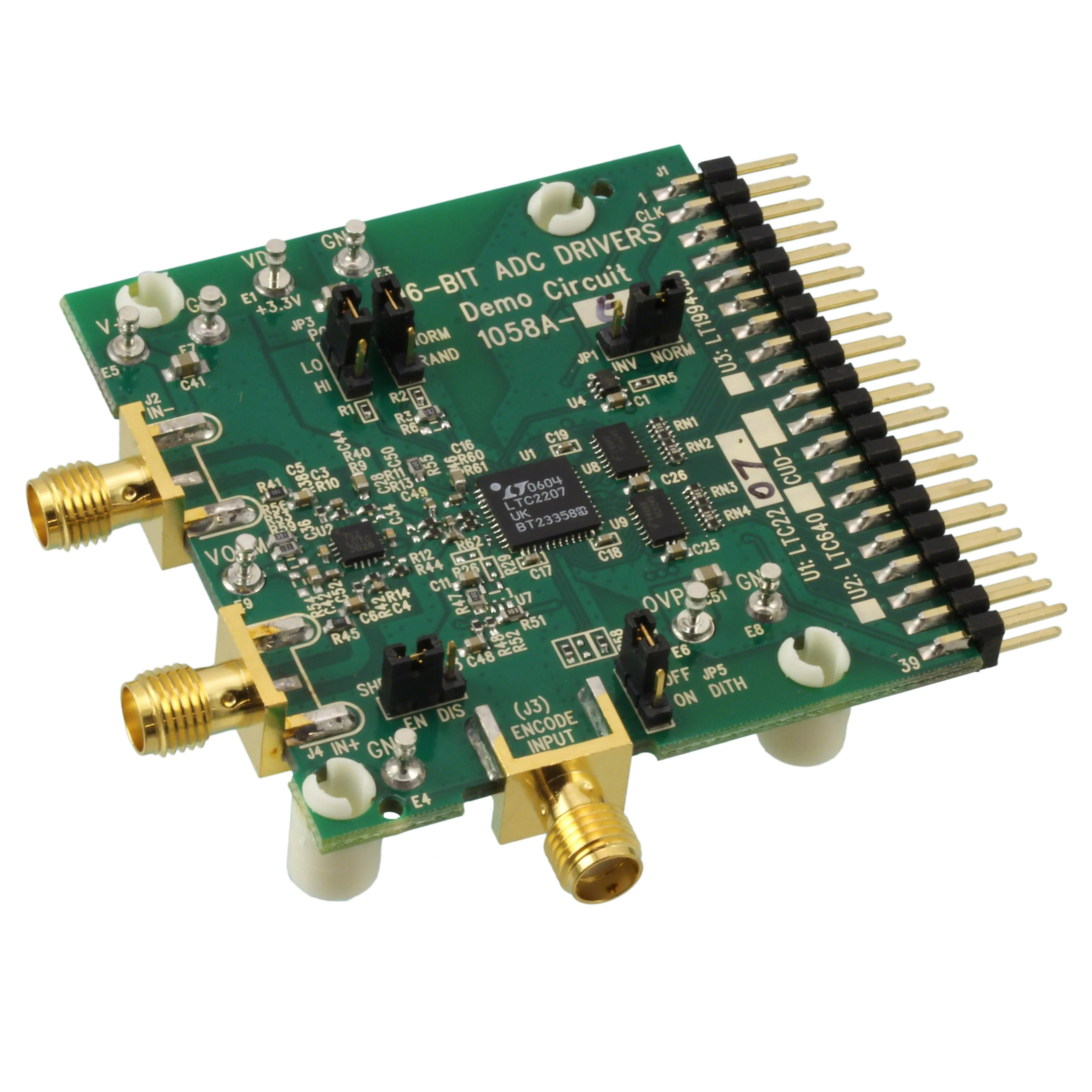

| Part Number | DC1058A-A | DC1058A-F | DC1058A-D | DC1058A-E | DC1058A-C |
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Series | - | - | - | - | - |
| Packaging | Box | Box | Box | Box | Box |
| Product Status | Active | Active | Active | Active | Obsolete |
| Number of A/D Converters | 1 | 1 | 1 | 1 | 1 |
| Number of Bits | 16 | 16 | 16 | 16 | 16 |
| Sampling Rate (Per Second) | 25M | 25M | 105M | 105M | 105M |
| Data Interface | Parallel | Parallel | Parallel | Parallel | Parallel |
| Input Range | 2.5Vpp | 2.5Vpp | 2.25Vpp | 2.25Vpp | 2.25Vpp |
| Power (Typ) @ Conditions | 220mW @ 25MSPS | 220mW @ 25MSPS | 900mW @ 105MSPS | 900mW @ 105MSPS | 900mW @ 105MSPS |
| Utilized IC / Part | LT1994, LTC2203 | LTC2203, LTC6403-1 | LTC2207, LTC6404-4 | LTC2207, LTC6406 | LTC2207, LTC6404-2 |
| Contents | Board(s) | Board(s) | Board(s) | Board(s) | Board(s) |
