Renesas Electronics Corporation DA16200MOD-AAE4WA32
- Part No.:
- DA16200MOD-AAE4WA32
- Manufacturer:
- Renesas Electronics Corporation
- Category:
- RF Transceiver Modules and Modems
- Package:
- 37-SMD Module
- Description:
- RF TXRX MODULE WIFI U.FL SMD
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
DA16200MOD-AAE4WA32 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Renesas Electronics Corporation
- Series:
- DA16200MOD-AA
- Package/Case:
- 37-SMD Module
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Active
- Programmable:
- Not Verified
- RF Family/Standard:
- WiFi
- Protocol:
- 802.11b/g/n
- Modulation:
- CCK, DSSS, OFDM
- Frequency:
- -
- Data Rate:
- 54Mbps
- Power - Output:
- 19dBm
- Sensitivity:
- -98.5dBm
- Serial Interfaces:
- GPIO, I2C, I2S, PWM, SDIO, SPI, UART
- Antenna Type:
- Antenna Not Included, U.FL
- Utilized IC / Part:
- DA16200
- Memory Size:
- 256kB ROM, 512kB SRAM
- Voltage - Supply:
- 2.1V ~ 3.6V
- Current - Receiving:
- 28.1mA ~ 37.4mA
- Current - Transmitting:
- 200mA ~ 280mA
- Mounting Type:
- Surface Mount
- Operating Temperature:
- -40°C ~ 85°C
| Image |  |
 |

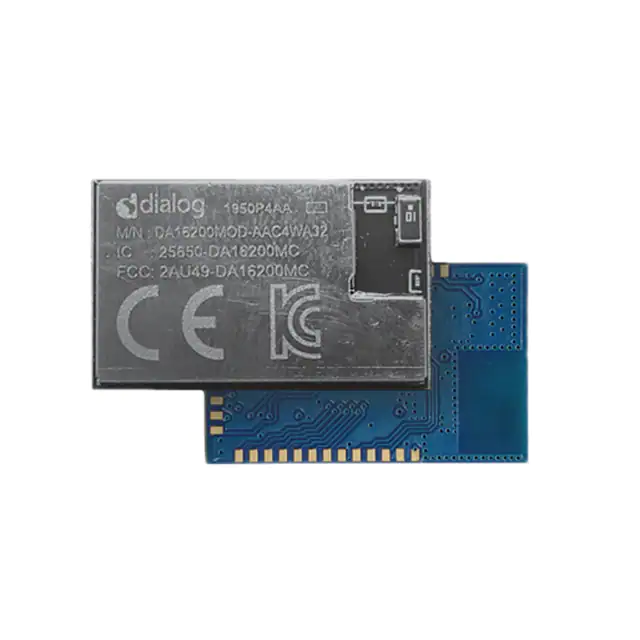

| Part Number | DA16200MOD-AAE4WA32 | DA16200MOD-AAC4WA32 |
| Manufacturer | Renesas Electronics Corporation | Renesas Electronics Corporation |
| Series | DA16200MOD-AA | DA16200MOD-AA |
| Package/Case | 37-SMD Module | 37-SMD Module |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) |
| Product Status | Active | Active |
| Programmable | Not Verified | Not Verified |
| RF Family/Standard | WiFi | WiFi |
| Protocol | 802.11b/g/n | 802.11b/g/n |
| Modulation | CCK, DSSS, OFDM | CCK, DSSS, OFDM |
| Frequency | - | - |
| Data Rate | 54Mbps | 54Mbps |
| Power - Output | 19dBm | 19dBm |
| Sensitivity | -98.5dBm | -98.5dBm |
| Serial Interfaces | GPIO, I2C, I2S, PWM, SDIO, SPI, UART | GPIO, I2C, I2S, PWM, SDIO, SPI, UART |
| Antenna Type | Antenna Not Included, U.FL | Chip |
| Utilized IC / Part | DA16200 | DA16200 |
| Memory Size | 256kB ROM, 512kB SRAM | 256kB ROM, 512kB SRAM |
| Voltage - Supply | 2.1V ~ 3.6V | 2.1V ~ 3.6V |
| Current - Receiving | 28.1mA ~ 37.4mA | 28.1mA ~ 37.4mA |
| Current - Transmitting | 200mA ~ 280mA | 200mA ~ 280mA |
| Mounting Type | Surface Mount | Surface Mount |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C |
