TE Connectivity Measurement Specialties D5154-000005-015PD
- Part No.:
- D5154-000005-015PD
- Manufacturer:
- TE Connectivity Measurement Specialties
- Package:
- Cylinder
- Datasheet:
-
D5154-000005-015PD.pdf
- Description:
- SENSOR PRESSURE
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
D5154-000005-015PD Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- TE Connectivity Measurement Specialties
- Series:
- D51
- Package/Case:
- Cylinder
- Packaging:
- Box
- Product Status:
- Active
- Applications:
- Industrial Automation
- Pressure Type:
- Differential
- Operating Pressure:
- 15PSI (103.42kPa)
- Output Type:
- Analog Current
- Output:
- 4 mA ~ 20 mA
- Accuracy:
- ±0.1%
- Voltage - Supply:
- 9V ~ 30V
- Port Size:
- Male - 1/4" (6.35mm) NPT
- Port Style:
- Threaded
- Features:
- Temperature Compensated
- Termination Style:
- -
- Maximum Pressure:
- 45PSI (310.26kPa)
- Operating Temperature:
- -40°C ~ 125°C
- Supplier Device Package:
- -
| Image |  |
 |
 |
 |
 |

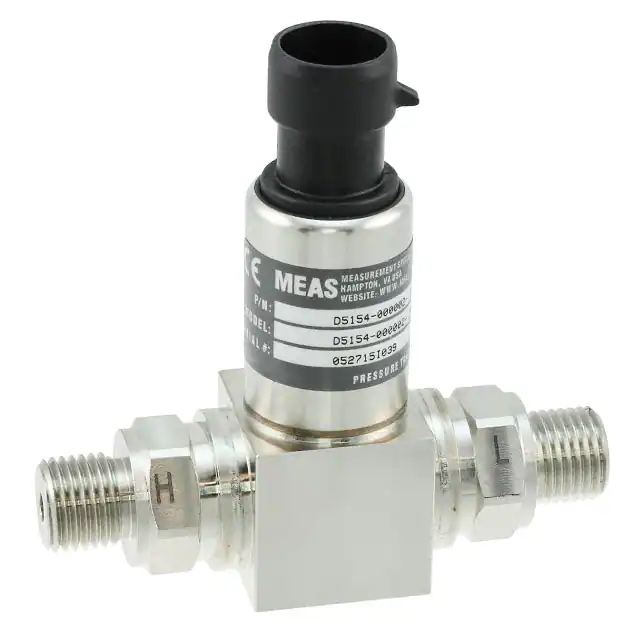

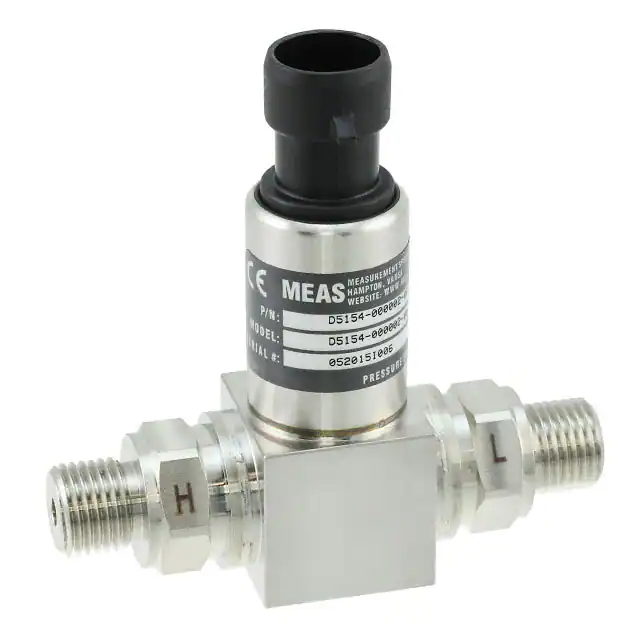

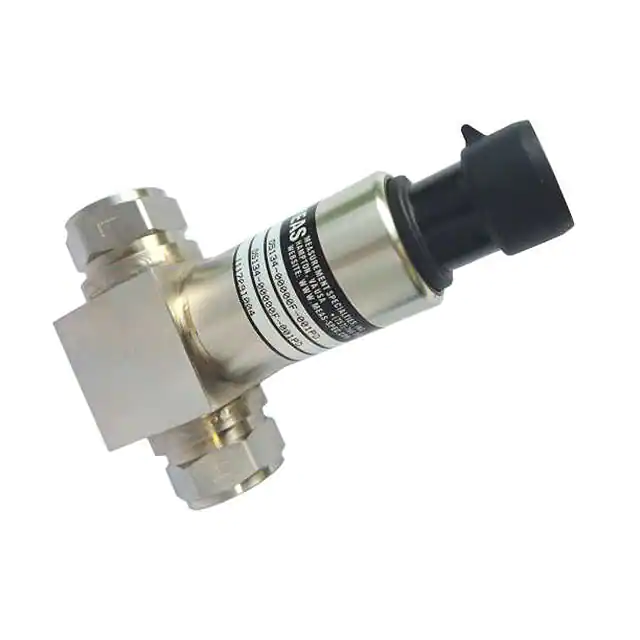

| Part Number | D5154-000005-005PD | D5154-000005-015PD | D5154-000002-.35BD | D5154-000002-001BD | D5154-000005-050PD |
| Manufacturer | TE Connectivity Measurement Specialties | TE Connectivity Measurement Specialties | TE Connectivity Measurement Specialties | TE Connectivity Measurement Specialties | TE Connectivity Measurement Specialties |
| Series | D51 | D51 | D51 | D51 | D51 |
| Package/Case | Cylinder | Cylinder | Cylinder | Cylinder | Cylinder |
| Packaging | Box | Box | Box | Box | Box |
| Product Status | Active | Active | Active | Obsolete | Active |
| Applications | Industrial Automation | Industrial Automation | Industrial Automation | Industrial Automation | Industrial Automation |
| Pressure Type | Differential | Differential | Differential | Differential | Differential |
| Operating Pressure | 5PSI (34.47kPa) | 15PSI (103.42kPa) | 5.08PSI (35kPa) | 14.5PSI (100kPa) | 50PSI (344.74kPa) |
| Output Type | Analog Current | Analog Current | Analog Current | Analog Current | Analog Current |
| Output | 4 mA ~ 20 mA | 4 mA ~ 20 mA | 4 mA ~ 20 mA | 4 mA ~ 20 mA | 4 mA ~ 20 mA |
| Accuracy | ±0.25% | ±0.1% | ±0.25% | ±0.1% | ±0.1% |
| Voltage - Supply | 9V ~ 30V | 9V ~ 30V | 9V ~ 30V | 9V ~ 30V | 9V ~ 30V |
| Port Size | Male - 1/4" (6.35mm) NPT | Male - 1/4" (6.35mm) NPT | Male - 1/4" (6.35mm) BSPP | Male - 1/4" (6.35mm) BSPP | Male - 1/4" (6.35mm) NPT |
| Port Style | Threaded | Threaded | Threaded | Threaded | Threaded |
| Features | Temperature Compensated | Temperature Compensated | Temperature Compensated | Temperature Compensated | Temperature Compensated |
| Termination Style | - | - | - | - | - |
| Maximum Pressure | 15PSI (103.42kPa) | 45PSI (310.26kPa) | 15.23PSI (105kPa) | 43.51PSI (300kPa) | 150PSI (1034.21kPa) |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Supplier Device Package | - | - | - | - | - |
