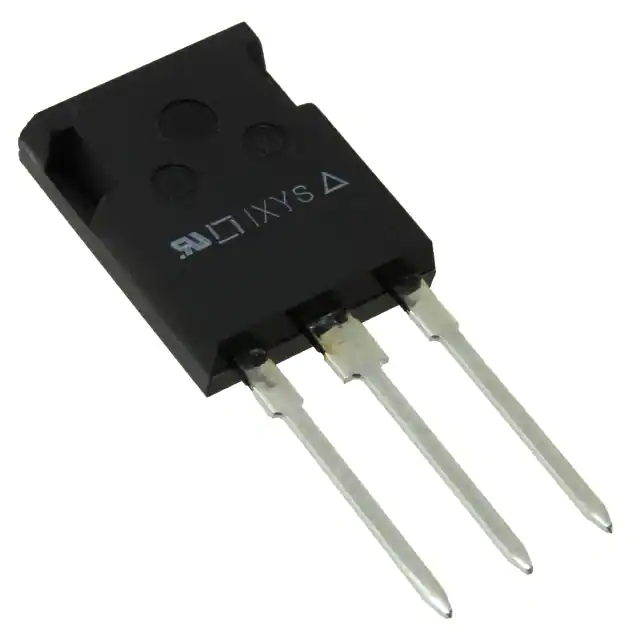

IXYS CS45-16IO1

Product attributes

Attribute value

Manufacturer:

IXYS

Series:

-

Package/Case:

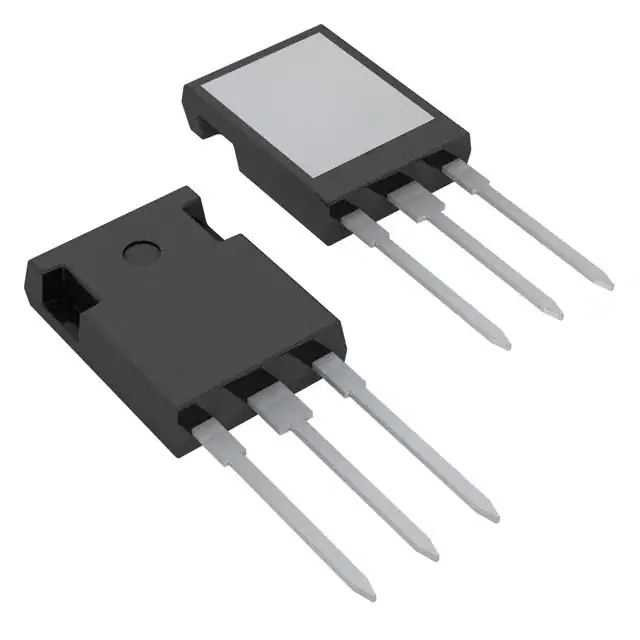

TO-247-3

Packaging:

Tube

Product Status:

Active

Voltage - Off State:

1.6 kV

Voltage - Gate Trigger (Vgt) (Max):

1.5 V

Current - Gate Trigger (Igt) (Max):

100 mA

Voltage - On State (Vtm) (Max):

1.64 V

Current - On State (It (AV)) (Max):

48 A

Current - On State (It (RMS)) (Max):

75 A

Current - Hold (Ih) (Max):

100 mA

Current - Off State (Max):

5 mA

Current - Non Rep. Surge 50, 60Hz (Itsm):

520A, 560A

SCR Type:

Standard Recovery

Operating Temperature:

-40°C ~ 140°C

Grade:

-

Qualification:

-

Mounting Type:

Through Hole

Supplier Device Package:

TO-247AD
