Viking Tech CN-43JL7---22R
- Part No.:
- CN-43JL7---22R
- Manufacturer:
- Viking Tech
- Category:
- Resistor Networks, Arrays
- Package:
- 1206 (3216 Metric), Convex, Long Side Terminals
- Description:
- RES 22R Ohm 5% 1/10W 0603*4
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
CN-43JL7---22R Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Viking Tech
- Series:
- CN
- Package/Case:
- 1206 (3216 Metric), Convex, Long Side Terminals
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Active
- Circuit Type:
- Isolated
- Resistance (Ohms):
- 22
- Tolerance:
- ±5%
- Number of Resistors:
- 4
- Resistor Matching Ratio:
- -
- Resistor-Ratio-Drift:
- -
- Number of Pins:
- 8
- Power Per Element:
- 100mW
- Temperature Coefficient:
- ±200ppm/°C
- Operating Temperature:
- -55°C ~ 155°C
- Grade:
- -
- Qualification:
- -
- Applications:
- -
- Mounting Type:
- Surface Mount
- Supplier Device Package:
- 0603
- Size / Dimension:
- 0.126" L x 0.063" W (3.20mm x 1.60mm)
- Height - Seated (Max):
- 0.026" (0.65mm)
| Image |  |
 |
|
 |
|

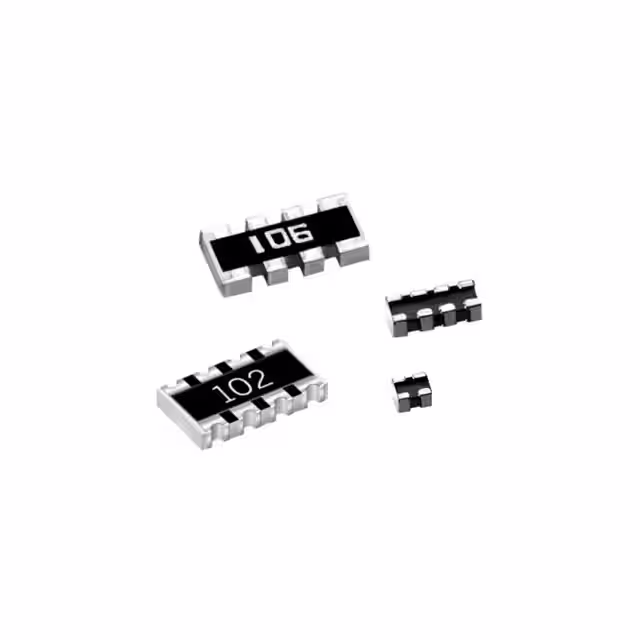

| Part Number | CN-21JL6---47R | CN-41JL6---22R | CN-42JL6---30R | CN-42JL6---22R | CN-42FL6----1K |
| Manufacturer | Viking Tech | Viking Tech | Viking Tech | Viking Tech | Viking Tech |
| Series | CN | CN | CN | CN-42 | CN |
| Package/Case | 0302 (0805 Metric), Convex, Long Side Terminals | 0502 (1406 Metric) Convex, Long Side Terminals | 0804, Convex, Long Side Terminals | 0804, Convex, Long Side Terminals | 0804, Convex, Long Side Terminals |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
| Product Status | Active | Active | Active | Active | Active |
| Circuit Type | Isolated | Isolated | Isolated | Isolated | Isolated |
| Resistance (Ohms) | 47 | 22 | 30 | 22 | 1k |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±1% |
| Number of Resistors | 2 | 4 | 4 | 4 | 4 |
| Resistor Matching Ratio | - | - | - | - | - |
| Resistor-Ratio-Drift | - | - | - | - | - |
| Number of Pins | 4 | 8 | 8 | 8 | 8 |
| Power Per Element | 31mW | 31mW | 63mW | 63mW | 63mW |
| Temperature Coefficient | ±200ppm/°C | ±200ppm/°C | ±200ppm/°C | ±200ppm/°C | ±200ppm/°C |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C |
| Grade | - | - | - | - | - |
| Qualification | - | - | - | - | - |
| Applications | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 0201 | 0502 | 0402 | 0804 | 0402 |
| Size / Dimension | 0.031" L x 0.024" W (0.80mm x 0.60mm) | 0.055" L x 0.024" W (1.40mm x 0.60mm) | 0.079" L x 0.039" W (2.00mm x 1.00mm) | 0.079" L x 0.039" W (2.00mm x 1.00mm) | 0.079" L x 0.039" W (2.00mm x 1.00mm) |
| Height - Seated (Max) | 0.018" (0.45mm) | 0.018" (0.45mm) | 0.022" (0.55mm) | 0.022" (0.55mm) | 0.022" (0.55mm) |
