Focus LCDs C82B-BW-LW63
- Part No.:
- C82B-BW-LW63
- Manufacturer:
- Focus LCDs
- Category:
- LCD, OLED Character and Numeric
- Package:
- Description:
- 8X2 STN BLUE CHARACTER LCD
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
C82B-BW-LW63 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Focus LCDs
- Series:
- C82B
- Packaging:
- Tape & Box (TB)
- Product Status:
- Active
- Number of Characters:
- 16.0
- Display Format:
- 8 x 2
- Character Format:
- 5 x 8 Dots
- Display Type:
- STN - Super-Twisted Nematic
- Display Mode:
- Transmissive
- Character Size:
- 5.56mm H x 2.96mm W
- Outline L x W x H:
- 58.00mm x 32.00mm x 13.50mm
- Viewing Area:
- 38.00mm L x 16.00mm W
- Backlight:
- LED - White
- Voltage - Supply:
- 3.3V
- Dot Size:
- 0.56mm W x 0.66mm H
- Interface:
- Parallel
- Controller Type:
- ST7066
- Operating Temperature:
- -20°C ~ 70°C
- Text Color:
- White
- Background Color:
- Blue
| Image |  |
 |
 |
 |
 |

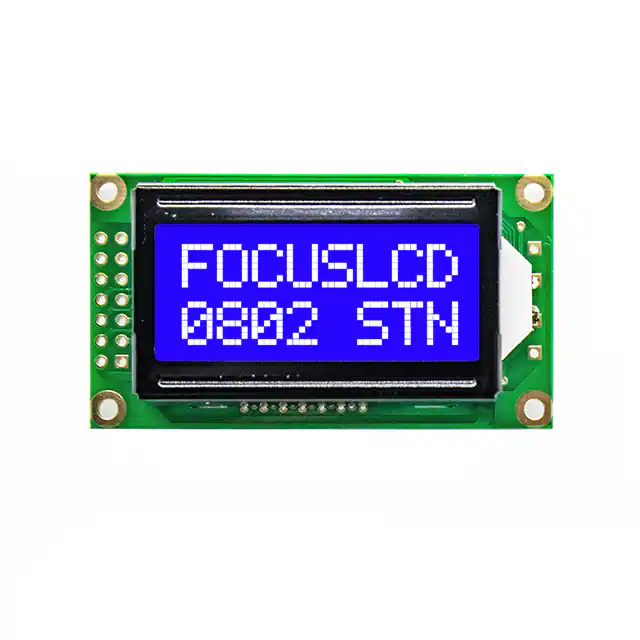

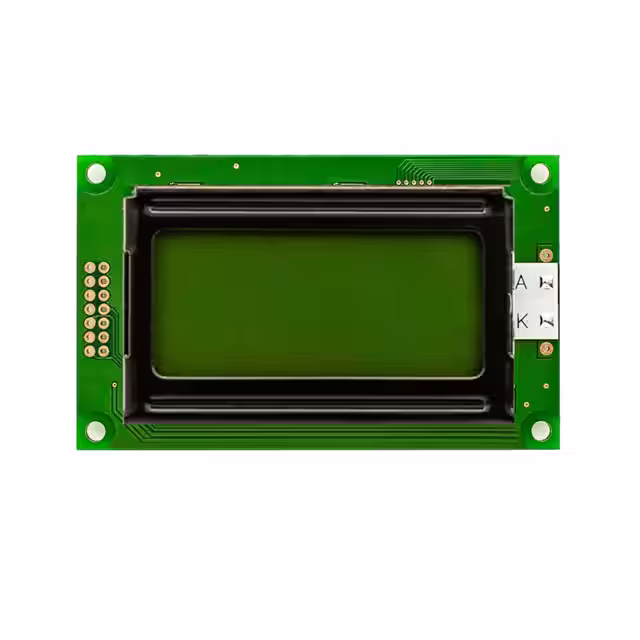

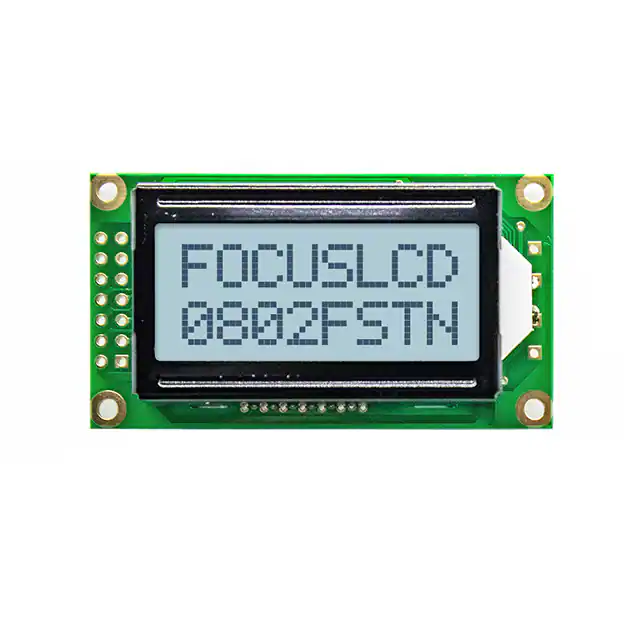

| Part Number | C82B-YTY-LW65 | C82BXBSGLY2WT1 | C82B-BW-LW65 | C82B-YTY-LW63 | C82B-FTW-LW65 |
| Manufacturer | Focus LCDs | Focus LCDs | Focus LCDs | Focus LCDs | Focus LCDs |
| Series | C82B | - | C82B | C82B | C82B |
| Packaging | Box | Box | Box | Tape & Box (TB) | Box |
| Product Status | Active | Active | Active | Active | Active |
| Number of Characters | 16.0 | 16.0 | 16.0 | 16.0 | 16.0 |
| Display Format | 8 x 2 | 8 x 2 | 8 x 2 | 8 x 2 | 8 x 2 |
| Character Format | 5 x 8 Dots | 5 x 8 Dots | 5 x 8 Dots | 5 x 8 Dots | 5 x 8 Dots |
| Display Type | STN - Super-Twisted Nematic | STN - Super-Twisted Nematic | STN - Super-Twisted Nematic | STN - Super-Twisted Nematic | FSTN - Film Super-Twisted Nematic |
| Display Mode | Transflective | Transflective | Transmissive | Transflective | Transflective |
| Character Size | 5.56mm H x 2.96mm W | 5.56mm H x 2.96mm W | 5.56mm H x 2.96mm W | 5.56mm H x 2.96mm W | 5.56mm H x 2.96mm W |
| Outline L x W x H | 58.00mm x 32.00mm x 13.50mm | 58.00mm x 32.00mm x 13.50mm | 58.00mm x 32.00mm x 13.50mm | 58.00mm x 32.00mm x 13.50mm | 58.00mm x 32.00mm x 13.50mm |
| Viewing Area | 38.00mm L x 16.00mm W | 38.00mm L x 16.00mm W | 38.00mm L x 16.00mm W | 38.00mm L x 16.00mm W | 38.00mm L x 16.00mm W |
| Backlight | LED - Yellow | LED - Yellow | LED - White | LED - Yellow | LED - White |
| Voltage - Supply | 5V | 5V | 5V | 3.3V | 5V |
| Dot Size | 0.56mm W x 0.66mm H | 0.56mm W x 0.66mm H | 0.56mm W x 0.66mm H | 0.56mm W x 0.66mm H | 0.56mm W x 0.66mm H |
| Interface | Parallel | Parallel | Parallel | Parallel | Parallel |
| Controller Type | ST7066 | ST7066 | ST7066 | ST7066U | ST7066 |
| Operating Temperature | -20°C ~ 70°C | -20°C ~ 70°C | -20°C ~ 70°C | -20°C ~ 70°C | -20°C ~ 70°C |
| Text Color | Black | Black | White | Black | Black |
| Background Color | Yellow/Green | Gray | Blue | Yellow/Green | Gray |
